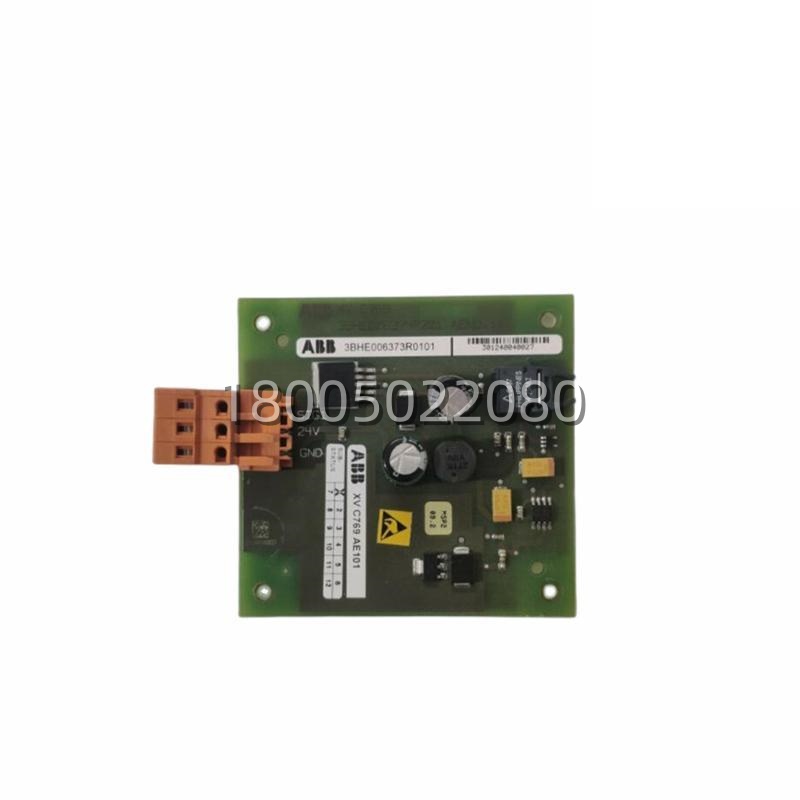

ABB 3BHE006373R0101 XVC769AE101 High-Precision Analog Input Module

The ABB 3BHE006373R0101 XVC769AE101 is a high-performance Analog Input Module (often referred to as an Analog Signal Interface or OEI Board) designed to bridge the gap between field sensors and industrial control systems. This module is engineered to receive, condition, and convert analog signals from various field devices—such as pressure transmitters, flow meters, and temperature sensors—into precise digital data for the PLC or DCS processor.

Renowned for its robust construction and high-speed signal processing, the XVC769AE101 ensures that critical process variables are captured with exceptional accuracy. It serves as a vital “sensory organ” for automation systems, translating real-world physical parameters into actionable digital intelligence.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Consider a sophisticated chemical processing plant where maintaining the exact temperature and pressure within a reactor is a matter of safety and quality. In this environment, hundreds of sensors continuously transmit analog voltage signals (0-10V) representing the current state of the process. The ABB 3BHE006373R0101 XVC769AE101 acts as the central collection point for these signals.

If a pressure sensor detects a spike, the XVC769AE101 converts this analog voltage into a digital value with high fidelity and low latency. This data is immediately processed by the controller, which triggers a valve adjustment to stabilize the reactor. By addressing the pain point of “signal noise” and “conversion lag,” the 3BHE006373R0101 ensures that the control system reacts in real-time, preventing hazardous situations and ensuring product consistency.

Parameter

表格

Technical Principles and Innovative Values

The ABB 3BHE006373R0101 XVC769AE101 operates on the principle of high-fidelity Analog-to-Digital Conversion (ADC), utilizing advanced sampling algorithms to ensure data integrity.

Innovation Point 1: High-Speed Sampling & Conversion. The XVC769AE101 features a rapid response time of just 10 microseconds. This allows the module to capture fast-changing signals that slower modules might miss. This is critical in high-speed manufacturing or safety-critical shutdown systems where milliseconds count.

Innovation Point 2: Precision Signal Conditioning. Equipped with high-quality internal components, the 3BHE006373R0101 filters out electrical noise and interference common in industrial plants. It ensures that the signal sent to the CPU is a “clean” representation of the physical reality, reducing false trips and control errors.

Innovation Point 3: Multi-Channel Integration. With 8 independent channels, the XVC769AE101 maximizes cabinet space efficiency. It allows a single module to monitor multiple process variables simultaneously, reducing wiring complexity and hardware costs compared to single-channel transmitters.
