ABB 3BHB003387R101 IGCT Driver Board for High-Power Drives

Description

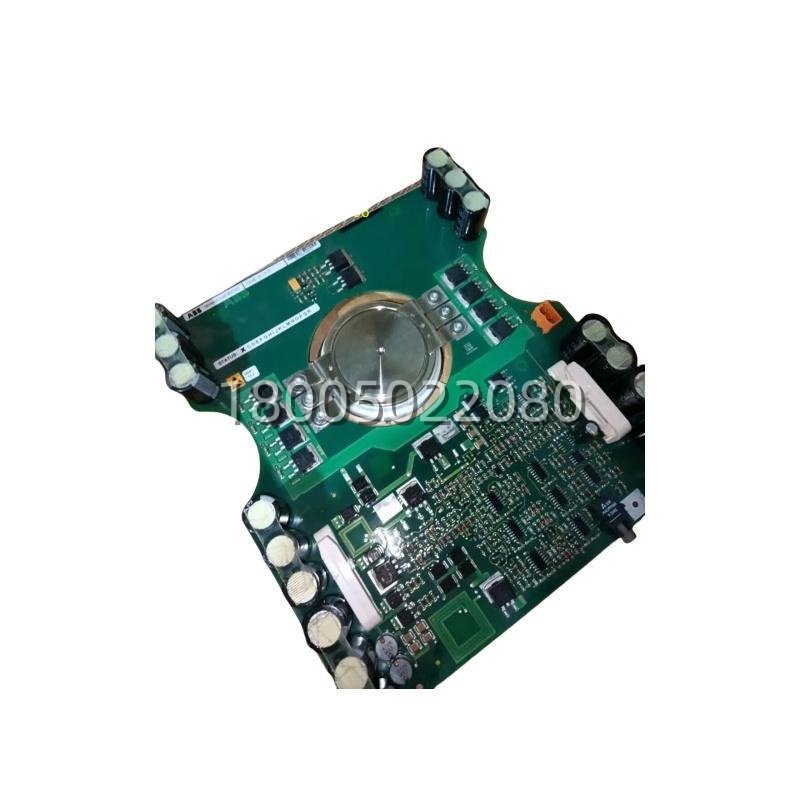

The ABB 3BHB003387R101 is a high-performance IGCT (Integrated Gate-Commutated Thyristor) driver board, identified by the hardware series 5SHX0660F0001. It serves as the critical link between the low-voltage control logic and the high-power semiconductor switching stages in industrial drive systems.

Designed to deliver precise gate pulses and robust protection, this module ensures the reliable operation of high-power converters. The ABB 3BHB003387R101 acts as the “muscle” of the control system, translating digital commands into the high-current signals necessary to switch massive electrical loads efficiently and safely.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios

Consider a massive mine hoist system tasked with lifting heavy loads from deep underground. The drive system must provide immense torque at low speeds and handle rapid deceleration without overheating. In this scenario, the ABB 3BHB003387R101 is the unsung hero, managing the switching of the IGCTs within the inverter. If the driver board fails to deliver the precise high-current pulse required to turn on the thyristor, the entire phase could fail, leading to a stalled hoist and costly production downtime.

Similarly, in a rolling mill where steel beams are shaped under extreme pressure, the 5SHX0660F0001 driver board ensures that the power modules respond instantly to speed adjustments. It addresses the pain point of “switching reliability” in high-vibration environments. By providing galvanic isolation and noise immunity, the 3BHB003387R101 prevents electrical interference from the high-power side from corrupting the sensitive control signals, ensuring smooth, continuous operation of the mill.
