Description
Application Scenarios:In a hot strip steel mill, a main rolling stand driven by a multi-megawatt DC motor must respond to torque commands with millisecond precision. The high-power converter cabinet, housing massive thyristor stacks, operates at hundreds of amps and volts. The ABB SDCS-PIN-205 (3ADT310500R1) is mounted within this cabinet, serving as the vital intermediary. It routes the high-power supply to the converter modules while simultaneously capturing precise armature current and voltage measurements for the regulator. During a rolling cycle, a voltage transient from the mains could stress the power electronics. The SDCS-PIN-205‘s integrated buffering and protection circuits absorb this spike, preventing nuisance trips and protecting the costly thyristors. This scenario highlights its role in solving the core pain points of signal integrity, electrical noise immunity, and modular maintainability in extreme electrical environments.
Parameter:
| Main Parameters | Value/Description |
|---|---|

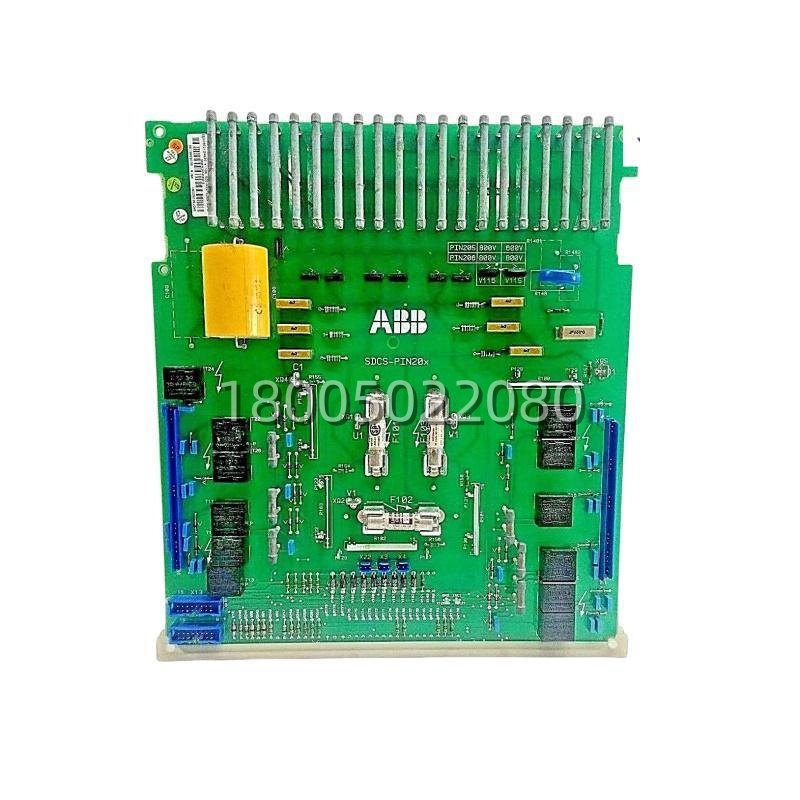

| Product Model | ABB SDCS-PIN-205 (3ADT310500R1) |
| Manufacturer | ABB |
| Product Category | Power Interface Board / Drive Control Interface Module |
| Compatible Systems | ABB DCS Series (e.g., DCS800, DCS600) modular drive cabinets. Ensures seamless integration with ABB’s high-power drive control systems. |
| Primary Function | Power routing, signal conditioning, and buffering between control electronics and high-power converters. Provides critical isolation and measurement for drive regulation. |
| Rated System Voltage | Up to 500V DC (Converter side). Designed for medium-voltage DC drive applications common in heavy industry. |
| Key Features | Integrated RC/RCD snubber circuits, armature current/voltage measurement, zero-current detection. Protects power semiconductors and provides feedback for closed-loop control. |
| Mounting | Panel/Rack mount within DCS cabinet. Standardized form factor for easy replacement in modular drive bays. |
| Operating Temperature | -25°C to +60°C. Rugged design for harsh industrial cabinet environments. |
| Dimensions (Approx.) | ~203mm x ~635mm x ~330mm (WxHxD). Substantial board size to accommodate high-power traces and components. |
| Weight (Approx.) | ~3.0 kg. Reflects the robust construction required for high-current applications. |
| Diagnostics | Supports system-level diagnostics via connected DCS controller. Enables predictive maintenance and fault tracing. |
Technical Principles and Innovative Values:The ABB SDCS-PIN-205 (3ADT310500R1) is built on the principle of modular isolation, a key innovation in ABB’s DCS architecture that separates the “dirty” power stage from the “clean” control stage.
- Innovation Point 1: Integrated Power & Signal Conditioning: Unlike generic interface cards, the SDCS-PIN-205 combines high-power routing with precision measurement circuits on a single board. It incorporates built-in shunt-based current measurement and voltage sensing circuits, eliminating the need for external transducers and reducing wiring complexity. This integration ensures that the control system receives accurate, noise-free feedback directly from the power loop.
- Innovation Point 2: Advanced Snubber & Protection Networks: The board features hard-wired RC (Resistor-Capacitor) or RCD (Resistor-Capacitor-Diode) snubber circuits tailored for the specific power semiconductors (thyristors/IGBTs) in the converter stack. These networks suppress voltage transients (dv/dt) during switching, a critical design feature that prevents false triggering and protects the expensive power modules from overvoltage stress, thereby extending their operational lifespan.
- Innovation Point 3: Modular Serviceability & Standardization: A core innovation is its role in ABB’s modular spare parts strategy. By standardizing the interface board across different converter sizes, ABB allows maintenance teams to stock a single SDCS-PIN-205 type for multiple drive bays. In the event of a fault, technicians can replace just the interface board without disturbing the heavy and complex power cabling or the control system, drastically reducing Mean Time To Repair (MTTR).
