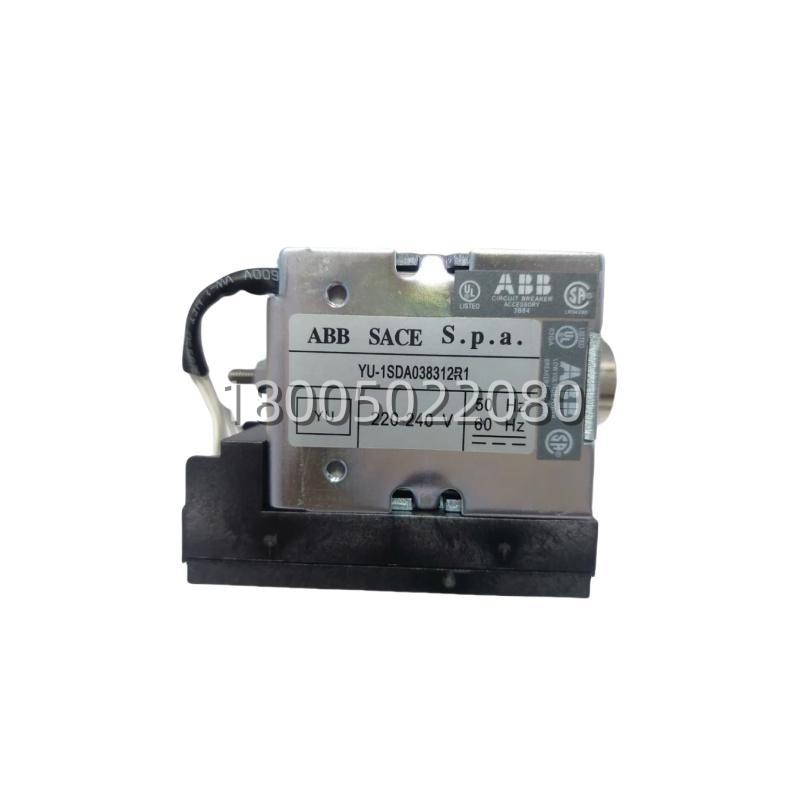

ABB 1SDA038312R1 Undervoltage Release Unit

Description

Application Scenarios:

In a large water treatment plant, the failure of a critical pump motor due to a prolonged brownout (sustained low voltage) could halt the entire treatment process, leading to significant operational and environmental risks. The main power feeder for these motors is protected by an ABB Emax 2 circuit breaker. By installing the ABB 1SDA038312R1​ undervoltage release on this breaker, the system gains a vital layer of protection. When an unstable grid condition causes the control voltage to drop below a safe level, the ABB 1SDA038312R1​ instantly de-energizes the breaker’s closing coil and initiates a trip command. This action disconnects the vulnerable motors before they can overheat and sustain insulation damage from trying to operate under low voltage, which causes increased current draw. The 1SDA038312R1​ acts as an automatic sentinel, ensuring that the breaker only remains closed when the control power is healthy, safeguarding expensive motors and preventing unscheduled downtime.

Note on Trip Threshold:​ The threshold (e.g., 70% of Un) is critical. It defines the voltage level at which protection activates, preventing motor operation outside safe electrical conditions.

Note on Compatibility:​ This release is specifically engineered for the mechanical and electrical interface of ABB Emax 2 breakers, ensuring reliable operation.

Technical Principles and Innovative Values:

The ABB 1SDA038312R1​ operates on a straightforward yet highly reliable electromechanical principle, providing essential safety logic directly at the circuit breaker level.
