A beverage packaging plant faced frequent downtime due to the limited connectivity and lack of analog control in its legacy PLC system. Engineers selected the ABB PM564-TP-ETH CPU for its integrated 10/100 Mbps Ethernet port, which enabled seamless integration with the plant’s SCADA system for real-time monitoring, and its onboard analog I/O (2AI/1AO), which allowed for precise control of fill levels and conveyor speeds without requiring additional expansion modules. The module’s 24V DC power supply and transistor outputs provided the fast switching speeds needed for the high-speed labeling machines. Post-installation, the plant achieved a 30% reduction in downtime and improved production traceability through Modbus TCP communication.
Parameter

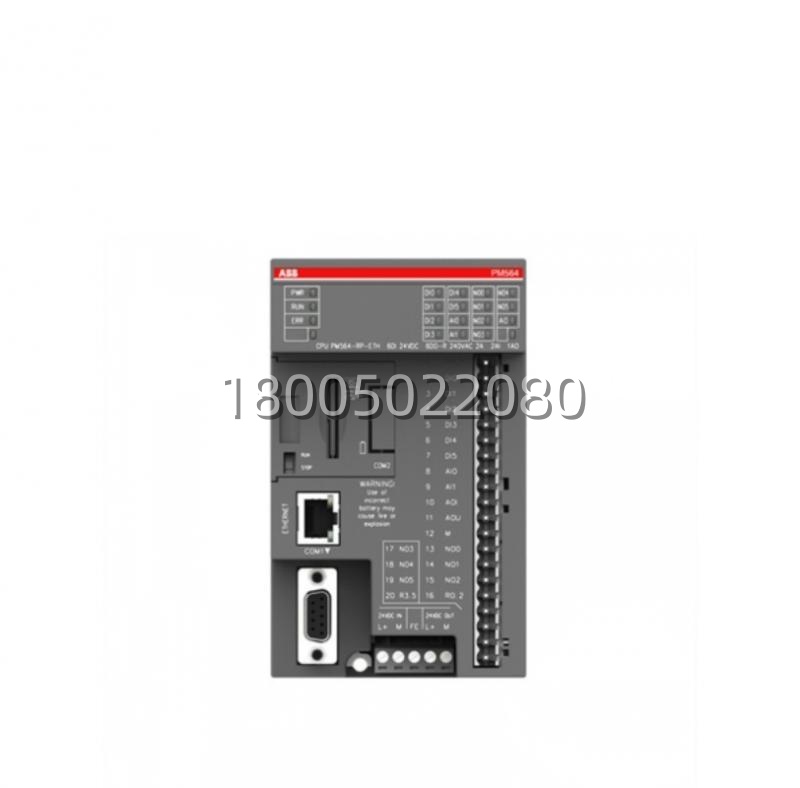

| Main Parameter | Value / Description |
|---|---|
| Product Model | ABB PM564-TP-ETH (1SAP121100R0071) |
| Manufacturer | ABB |
| Product Category | PLC CPU Module (AC500-eCo Series) |
| Supply Voltage | 24 V DC (19.2 – 30 V DC) |
| Power Consumption | < 5 W (Typical) |
| CPU & Memory | 32-bit RISC Processor; 128 KB Program Memory |
| Integrated I/O | 6 Digital Inputs (DI), 6 Transistor Outputs (DO), 2 Analog Inputs (AI), 1 Analog Output (AO) |
| Communication Ports | 1x Ethernet (10/100 Mbps), 1x RS-485, 1x USB (Programming) |
| Supported Protocols | Modbus TCP, Modbus RTU, HTTP, FTP, SNTP |
| Programming Languages | IL, LD, FBD, ST, SFC, CFC (IEC 61131-3) |
| Expansion Capability | Up to 10 S500/S500-eCo I/O modules via local bus |
| Operating Temperature | 0 °C to +60 °C (Horizontal Mounting) |
| Dimensions (WxHxD) | 74 mm x 135 mm x 82 mm |
