Description

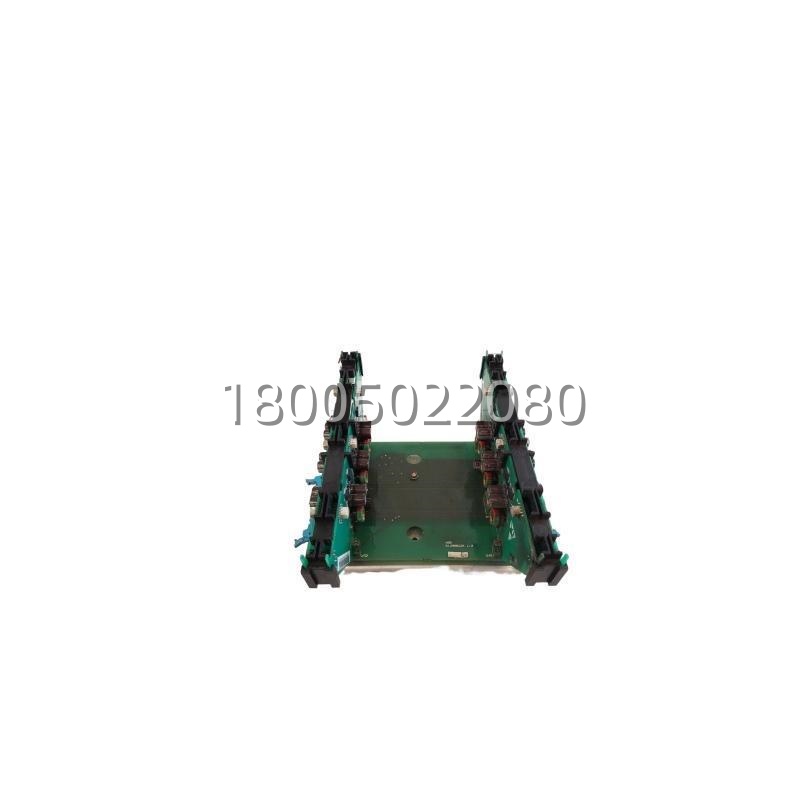

Application ScenariosOn a seven-stand paper-machine drive where each section is fed by an ACS600 MultiDrive rack (NDCP inverter units stacked two-high), the No. 4 dryer section began throwing intermittent “IGBT Desat” and “Drive UV” faults every 3–4 days—always during web-break recovery when the torque step-change pushed the IGBTs hardest. The service engineer pulled the NGDR-03C​ from the offending NDCP slot, and a bench check showed one of the desat detection comparators drifting out of spec (the electrolytics on the driver’s isolated supply had aged after 19 years of +60 °C cabinet ambient). Swapping in a fresh NGDR-03C​ (61298622E) restored the 16 kHz DTC switching with clean gate waveforms—the oscilloscope showed the turn-off tail current collapse from 420 ns to 280 ns thanks to the fresh desat threshold. The rack’s RDCU re-established DDCS handshake in < 2 seconds after power-up, and the No. 4 dryer has run 14 months fault-free since. The drive lead’s comment: “The NGDR-03C​ is cheap insurance—an IGBT module costs ten times what this board does, and the driver is what keeps it alive.”h2 Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1: Desat-with-Soft-Shutdown in μs. The NGDR-03C​ doesn’t just chop the gate when it sees a short—it implements a controlled “soft off” current sink that bleeds the IGBT gate voltage down over a few hundred nanoseconds instead of hard-tripping. This suppresses the V_CEvoltage spike that would otherwise stress the same IGBT’s blocking capability. In a DTC drive where switching is irregular by design, that controlled slope is what keeps the module alive through a motor-terminal short.
• Innovation Point 2: DDCS Fiber/LVDS Uplink. The NGDR-03C​ receives its PWM pattern and deadtime from the RDCU/NDCU master over ABB’s DDCS (Distributed Digital Control System) link—either fiber (noise-immune) or differential copper depending on the NDCP build. The fiber variant is the reason an ACS600 rack can sit 30 m from its control cubicle without PWM jitter, something RS-485 or parallel ribbon can’t promise in a 500 kW inverter.
• Innovation Point 3: Layout-Critical Short Gate Loop. The NGDR-03C​ is intentionally compact (120 × 80 mm) and slots directly into the NDCP power-unit frame adjacentto the IGBT module—sometimes within 80 mm of the gate pins. That minimizes gate-loop inductance, which matters at 16 kHz / ±8 A peak where every nanohenry shows up as gate ringing. ABB’s layout rule: driver close, gate resistor close, Kelvin-emitter close—the NGDR-03C​ mechanical form factor enforces all three.
• Innovation Point 4: Dual-Side Isolation. Logic side (+5 V, DDCS) and power side (±15 V, IGBT gate/emitter sense) are separated by optocouplers plus a magnetic barrier on the isolated supply. A phase-leg shoot-through or IGBT C-E punchthrough will not back-feed into the RDCU—containment by design.

h2 Application Cases and Industry ValueIn a container-crane hoist drive (four ACS600 inverters in a MultiDrive rack feeding a common DC link), the hoist motor took a terminal-to-ground fault during a storm-cycle lift. The NGDR-03C​ on inverter A detected desat 1.2 µs after the fault current spiked, executed soft-shutdown on that phase-leg, and reported “IGBT Desat Ch B” to the RDCU while the other three inverters in the same rack finished the deceleration ramp on the remaining healthy legs (the crane has a mechanical brake as secondary). Post-mortem: the IGBT module on phase B had a slight crater mark but didn’t fail short—the NGDR-03C‘s soft-shutdown had limited the energy to ~40 J instead of the ~400 J a hard-trip would have dumped. The port’s electrical superintendent estimated the soft-shutdown behavior “saved one IGBT module and probably kept the crane online the next shift instead of a three-day repair.”A second case: a cement-mill separator drive (ACS600 NDCP, 315 kW) began logging “Drive UV” randomly during summer peaks. The culprit turned out to be cracked solder joints on the NGDR-03C‘s ±15 V isolated supply input pins—thermal cycling had worked a hairline fracture over 16 years. The plant sourced a refurb NGDR-03C​ with fresh electrolytics and reworked pins, swapped in 12 minutes (with the DC link safely discharged, of course), and the UV events vanished. Cement-dust ambient being what it is, the NGDR-03C‘s IP20 + slot-in form factor meant no extra enclosure—just the NDCP’s own sheet-metal cover.h2 Related Product Combination SolutionsThe NGDR-03C​ never works alone inside an ACS600 MultiDrive cabinet; it forms a chain:

• NDCP power unit​ – The inverter module frame that physically houses the NGDR-03C, the IGBT stack, DC-link capacitors, and the snubber. The driver board is meaningless without the NDCP carrier.
• RDCU / NDCU​ – The ACS600 drive control unit (RDCU-02C, NDCU-33, etc.) that sends DDCS telegrams tothe NGDR-03C​ and receives fault/status back. If your RDCU is throwing “DDCS Link Loss,” the NGDR-03C​ is a prime suspect.
• AINT / AIMC interface board​ – The ACS600 “adapter + I/O” board that bridges RDCU to the outside world; often replaced in the same service window as the NGDR-03C​ on high-hour units.
• NGDR-02C​ – The ACS800-generation driver board; notcompatible with ACS600 NDCP despite similar naming—listed here so you don’t order the wrong one.
• ABB ACS600 rectifier unit (NDRC)​ – The front-end converter that feeds the DC link the NGDR-03C‘s inverter side switches against. In a common-DC MultiDrive rack, one NDRC feeds 2–4 NDCPs each with its own NGDR-03C.
• IGBT module (e.g., 1700 V / 400–600 A class)​ – The power device the NGDR-03C​ actually drives; when replacing a blown IGBT, the NGDR-03C​ should be inspected/replaced in the same visit (desat event often stresses the driver’s gate resistors and desat diode).
