Description
Technical Specifications for 1784-PKTX
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1784-PKTX |
| Number of modules per system: | Four (4) |
| Status LEDs: | 1 diagnostic/status LED per channel |
| DH-485 maximum cable and communication: | 4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s |
| DH+ / RIO Maximum cable and communication: | 10,000 ft. (3048 m) @ 57.6K bit/s 5, 000 ft. (1,524 m) @ 115.2K bits/s 2,500 ft. (762 m) @ 230.4K bits/s |
| Remote I/O scanner: | Supported |
| Compatible controllers: | PLC-5, PLC-5/250, and SLC 5/04 processors, and SLC 5/01, SLC 5/02, and SLC5/03 processors (only via 1785-KA5) |
| PCI port: | PCI 2.3 compliant |
| Communication channels: | Channel 1A: DH+ / RIO Channel 1C: DH-485 |
| Communication Protocol: | Data Highway Plus (DH+); Remote I/O (RIO); DH-485 |
| Description | Network Interface card |
| Brand | Allen-Bradley |
| Product Line | Allen Bradley PLC 5 |
| Module Type | Bus Communication Card |
| Wiring Arm | 1771-WN |
| Required External Power | None |
| Max Modules Per System | 4 |
| Bus Communcations | Local PCI 2.3 Compliant |
| LEDs | 1 Diagnosis/Status Per Channel |
| Dimensions | 4.5 x 12.4 x 6.3 inches (115 x 317 x 160 millimeters) |
| Weight | 0.3 lbs (0.1 kg) |
| Coating | Conformal Coat |
| Typical AC Signal Delay (Off) | 29 (+/- 8) ms |
| Typical DC Signal Delay (Off) | 30 (+/- 7) ms |
| Channels | 1A 3-Pin Phoenix for DH+ & Remote I/O, 1C 6-Pin Phoenix for DH-485 |
| DH+/DH-485/RIO | Yes |
About 1784-PKTX

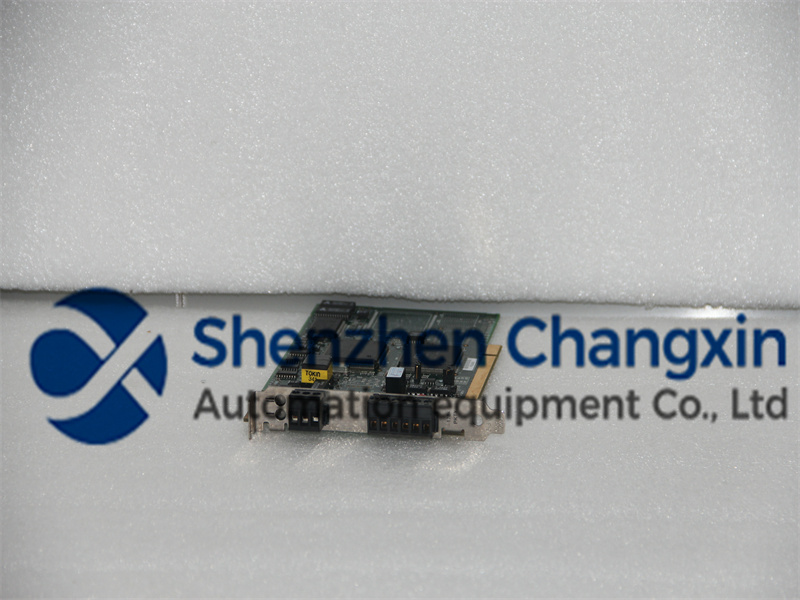

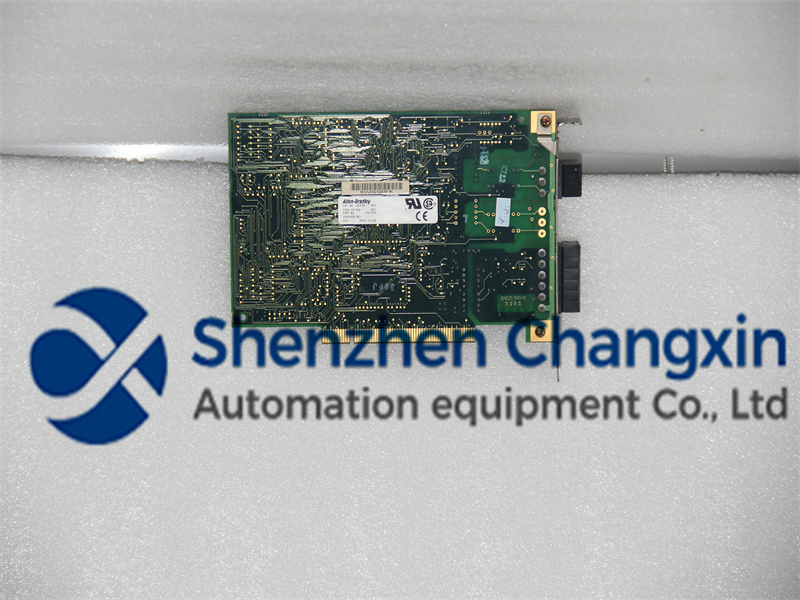

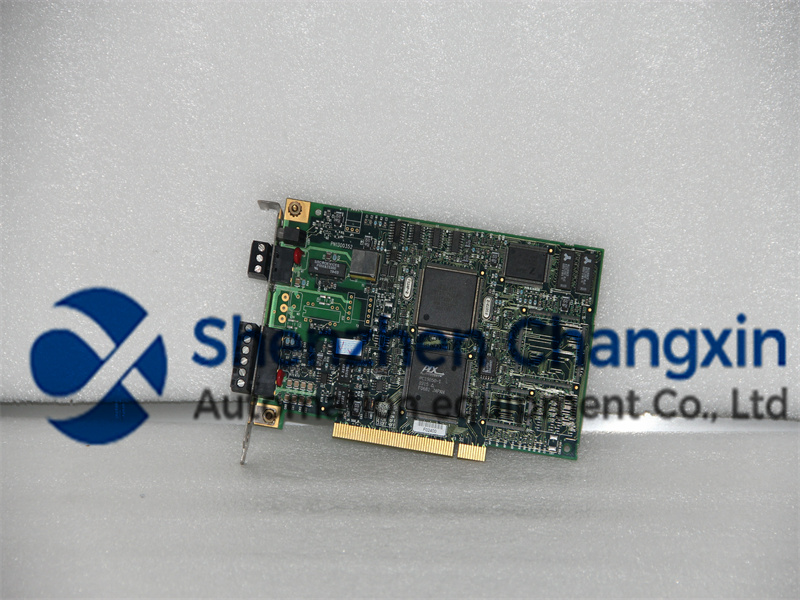

The Allen-Bradley 1784-PKTX is a network interface cards that directly mounts to a Peripheral Connect Interconnect (PCI) port of a personal computer. This card supports PCI bus version 2.3 and allows the host computer to connect to a Data Highway Plus (DH+), Remote I/O (RIO) or DH-485 communication network. This card may be used to interface with Programmable Logic Controllers (PLC) for implementing process visualization.
It has a single channel DH+ / RIO combo port, labelled as channel 1A and DH-485 communication interface labelled as Channel 1C. DH+ and RIO supports long distance communication with specific coverage limited by the transfer rate. Specifically, 10,000 ft. (3048 m) @ 57.6K bit/s; 5, 000 ft. (1,524 m) @ 115.2K bits/s and 2,500 ft. (762 m) @ 230.4K bits/s. For DH-485, maximum distance that may be covered is 4,000 ft. (1219 m) @ 1200, 2400, 4800, 9600 or 19,200 bits/s.
The 1784-PKTX comes with 1 diagnostic/status LED per channel and supports a maximum of Four (4) modules per system, specified by the jumper configuration. Drive development may be configured in variety of ways and depends on the operating system.
