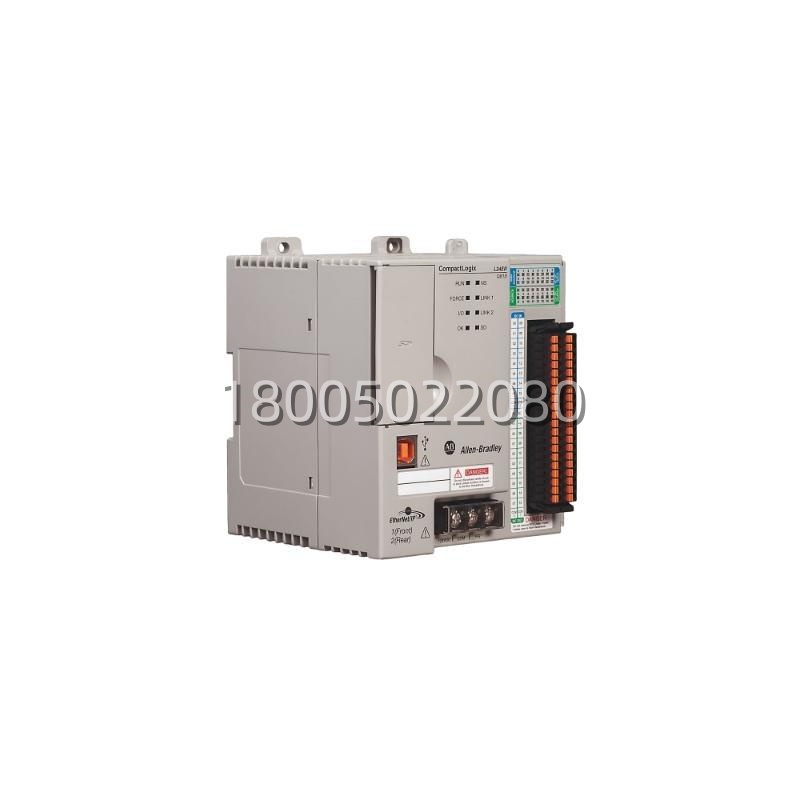

1769-L24ER-QBFC1B 750KB PLC with 4 High‑Speed Counters & SD Card

Description

Application Scenarios

A packaging machine manufacturer was struggling with the complexity and cost of separate PLC, motion, and I/O components for their new case packer design. By adopting the 1769-L24ER-QBFC1B, they integrated logic, motion control, and all necessary I/O into a single, space‑saving unit. The controller’s support for up to 4 axes of CIP Motion enabled direct control of servo drives, while the built‑in DLR network ring provided resiliency against single cable failures—a critical requirement for their 24/7 production environment -6-12. The result was a 30% reduction in control panel footprint, simplified wiring, and faster commissioning. The 1769-L24ER-QBFC1B now serves as the standard control platform across their entire machine line, demonstrating how integrated architecture can transform equipment design -6-12.

In a material handling project, a system integrator deployed the 1769-L24ER-QBFC1B to control a warehouse conveyor system with 16 DC sensors and 16 DC actuators. The controller’s four high‑speed counters were used to precisely track product flow from encoders, while the analog inputs monitored variable speed drive feedback signals. The integrated EtherNet/IP ports allowed seamless connection to an upper‑level SCADA system and remote HMIs, eliminating the need for additional communication adapters and reducing system cost.

Parameters

Technical Principles and Innovative Values

Innovation Point 1: Integrated Motion without Dedicated Motion Cards
The 1769-L24ER-QBFC1B supports Integrated Motion over EtherNet/IP for up to 4 axes, including Kinematics for simple articulated robotics -2-6. This eliminates the need for separate motion control modules or specialized robot controllers, significantly reducing hardware costs and engineering complexity. The controller leverages the CIP Motion protocol over standard Ethernet to achieve precise, synchronized motion control directly from the Logix programming environment.

Innovation Point 2: DLR Network Resiliency
The dual EtherNet/IP ports on the 1769-L24ER-QBFC1B include an integrated Ethernet switch that supports Device Level Ring (DLR) topology -6-12. This provides automatic network recovery if a single cable fails, ensuring uninterrupted communication between the controller, I/O, HMIs, and drives. It also simplifies device replacement during production, as individual nodes can be swapped without stopping the entire line -12.

Innovation Point 3: Battery‑Free Operation
The 1769-L24ER-QBFC1B features built‑in energy storage for program retention, eliminating the need for lithium batteries -2-6. This reduces both maintenance costs and environmental disposal concerns, while ensuring that user programs and data remain secure during extended power outages. Program backup and restore are further streamlined via the included 1GB SD card -2-6.

Innovation Point 4: Space‑Saving Integrated I/O
With 16 DC inputs, 16 DC outputs, 4 analog inputs, and 2 analog outputs embedded directly on the controller, the 1769-L24ER-QBFC1B delivers a complete control solution in a 140mm wide package. Compared to the CompactLogix 5370 L3 series, the L2 controllers reduce required panel space by up to 40%, a significant advantage for space‑constrained machine designs -6-12.

Innovation Point 5: Open Socket Connectivity
The 1769-L24ER-QBFC1B supports open socket capability, enabling direct communication with devices such as printers, barcode readers, and servers using Modbus TCP, TCP/IP, or other application‑specific protocols -2-6. This eliminates the need for custom protocol gateways and simplifies integration with plant‑wide IT systems.
