Description
Application Scenarios
In a chemical processing plant, a critical reactor vessel requires continuous pressure monitoring to prevent over-pressurization. The existing standard analog input card fails to detect a sensor wire break, resulting in an undetected loss of signal during a critical batch. The operations team needs a safety-rated solution that not only measures pressure with high accuracy but also diagnoses sensor integrity in real time.
Deploying the 1734-IE4S in the POINT I/O rack adjacent to the reactor skid solves this challenge. Two channels are configured in dual-channel mode, each connected to separate pressure transmitters measuring the same vessel. The module continuously compares both readings against a configurable discrepancy time. When a wire break occurs on one transmitter, the 1734-IE4S detects the discrepancy within milliseconds and initiates a safe shutdown sequence before pressure exceeds safe limits. The plant achieves full compliance with IEC 61508 safety requirements while reducing wiring costs by installing the module directly at the field skid rather than routing cables back to a central cabinet.
Parameter

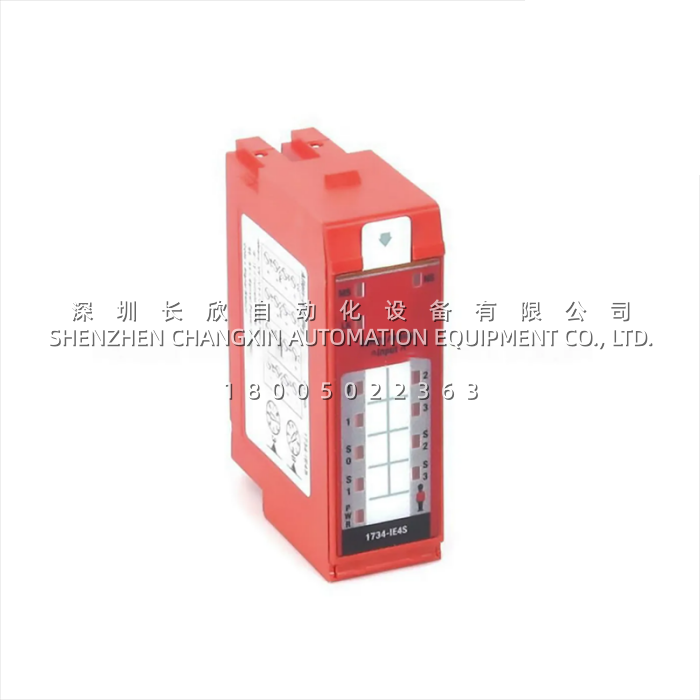

| Main Parameters | Value/Description |
|---|---|
| Product Model | 1734-IE4S |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Safety Analog Input Module |
| Number of Inputs | 4 single-ended safety analog inputs |
| Input Signal Types | Current (0-20 mA, 4-20 mA), Voltage (±5V, ±10V, 0-5V, 0-10V), Tachometer (0-24V DC) |
| ADC Resolution | 12 bits |
| Safety Rating | SIL CL3, PLe, Cat. 4 (dual-channel mode) |
| Communication Protocol | CIP Safety over EtherNet/IP (GuardLogix) or DeviceNet (SmartGuard 600) |
| Power Supply | 24V DC |
| Dimensions (W×H×D) | 12 mm × 56 mm × 75.5 mm |
| Operating Temperature | -20°C to +55°C |
| Mounting | DIN rail mounting (horizontal or vertical, no derating) |
Technical Principles and Innovative Values
Innovation Point 1: Dual-Channel Consistency Monitoring for Safety Integrity. The 1734-IE4S supports a dual-channel operation mode in which two adjacent input channels measure the same process variable independently. The module internally compares these readings and declares a fault if the discrepancy exceeds a user-configurable threshold for longer than the specified discrepancy time. This architecture achieves SIL CL3/PLe/Cat. 4 safety ratings without requiring external safety relays or comparison logic, significantly simplifying safety function design.
Innovation Point 2: Multi-Mode Input Flexibility in a Single Module. Unlike fixed-function analog safety modules, the 1734-IE4S supports software-configurable operation across current, voltage, and tachometer modes on a per-channel basis. Tachometer mode converts 24V DC switching signals into frequency measurements (1-1000 Hz), enabling the same module to monitor both process variables and rotational speed for safety functions.
Innovation Point 3: Seamless POINT I/O Integration with Safety and Standard I/O Coexistence. The 1734-IE4S fits directly into the standard POINT I/O backplane alongside non-safety modules, allowing engineers to mix safety and standard I/O in the same rack. Communication occurs through the CIP Safety protocol over EtherNet/IP for GuardLogix controllers or DeviceNet for SmartGuard 600 controllers. This eliminates the need for separate safety I/O networks and reduces cabinet footprint.
Innovation Point 4: Removal and Insertion Under Power (RIUP). The 1734-IE4S supports RIUP, enabling module replacement while the system remains operational. Combined with Auto Device Replacement (ADR), this feature minimizes downtime during maintenance or unexpected module failure.
