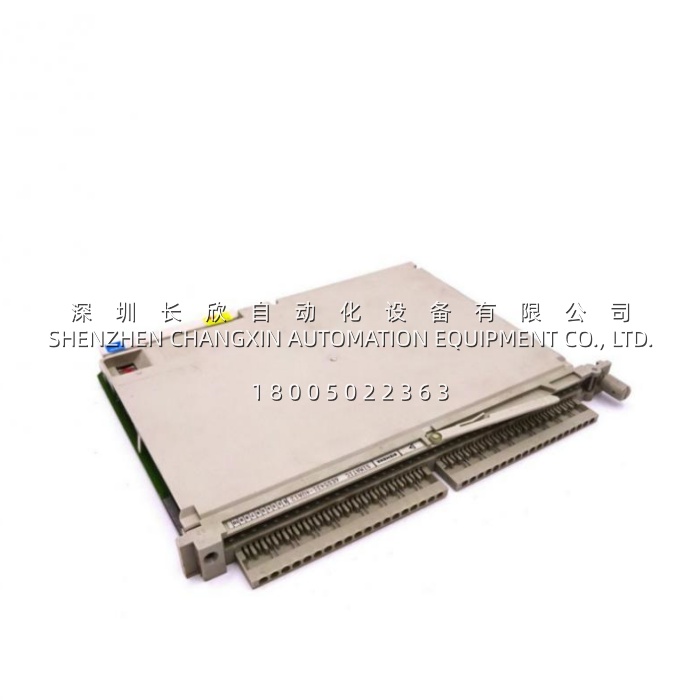

DescriptionThe 6ES5431-4UA12​ is a SIMATIC S5 Series 431 Digital Input (DI) module manufactured by Siemens, delivering 16 floating (galvanically isolated) input channels with multi-voltage capability—24 V DC, 48 V DC, or 60 V DC—within a single compact “U” form-factor slot. Designed for the S5-135U and S5-155U large-frame central racks (and compatible distributed nodes), the 6ES5431-4UA12​ is the go-to DI when your field devices span mixed voltage levels or your plant ground topology makes non-isolated inputs a noise-risk. Where the 421-family DIs (like the 6ES5421-8MA12 we covered earlier) are non-isolated and 24 V only, the 431 steps up: isolation, voltage flexibility, and large-frame bus addressing.h2 Application ScenariosA hot-strip steel mill in the Ruhr Valley has been running a SIMATIC S5-155U (CPU 942) since the mid-1990s to coordinate the roughing stand, the crop shear, and the down-coiler interlocks across a 180-meter bay. The original DI population included a mix of 421 non-isolated modules near the main MCC, but the shear-area sensors—limit switches on the hydraulic clamp and the photocell array on the transfer table—were wired back to the S5 rack over 80-meter trays that crossed three different transformer neutrals. During a thunderstorm-related voltage swell in 2018, ground potential differences of ~18 V between the shear pit and the main panel caused the non-isolated DI on the crop-shear “blade home” limit to ghost-toggle, triggering an unplanned hold that cost roughly €11,000 in lost coil throughput. The integrator swapped that bay’s DI block for a 6ES5431-4UA12—16 floating inputs, each optically isolated from the rack backplane and from each other’s field returns. The 48 V DC crane-auxiliary contacts (legacy from the 1980s retrofit) landed on the same module alongside the 24 V DC modern prox switches, no level-shifting needed. Three years and two more storms later, zero ghost toggles. The pain point the 6ES5431-4UA12​ solved was the classic large-frame S5 problem: when your rack spans a wide physical footprint with messy grounds and mixed sensor voltage legacies, “non-isolated” stops being a cost save and starts being a liability.h2

Parameter

h2 Technical Principles and Innovative Values

• Innovation Point 1: Floating (Galvanically Isolated) Architecture for Hostile Grounds.​ The 6ES5431-4UA12​ uses opto-coupling on each channel group, breaking the direct return path between field 0 V and the S5 rack’s internal 5 V/M-bus. In plants where drive skids, crane pits, and MCC rooms don’t share a clean single-point ground—steel mills, paper machines, chemical batch buildings—this isolation prevents the “ghost bit” phenomenon where a 12 V ground offset on a 24 V DC sensor reads as a noisy “1/0/1/0.” The 6ES5431-4UA12​ doesn’t just tolerate dirty grounds; it ignores them.
• Innovation Point 2: Triple-Voltage Flex on a Single Module.​ Most S5 DIs lock you into 24 V DC (421 family) or 5 V/115 V AC (other niches). The 6ES5431-4UA12​ accepts 24 V, 48 V, and 60 V DC on the same terminal block—the internal threshold scaling auto-adjusts. This matters in brownfield S5-135U/155U racks that grew over decades: you might have 1992-vintage 48 V DC crane contacts sitting next to a 2010-vintage 24 V DC inductive prox, and the 6ES5431-4UA12​ takes both without external interposing relays.
• Innovation Point 3: Compact “U” Slot Footprint on Large-Frame Racks.​ The S5-135U/155U backplane is physically wider than the 90U/100U small-frame, but the 6ES5431-4UA12​ still uses a single-slot “compact U” housing (≈29 mm wide) rather than the older double-wide 460-format DIs. That frees rack real estate for AO or communication modules—useful when your 155U bay is already crowded with IM modules and redundant PS units.
