Product Overview

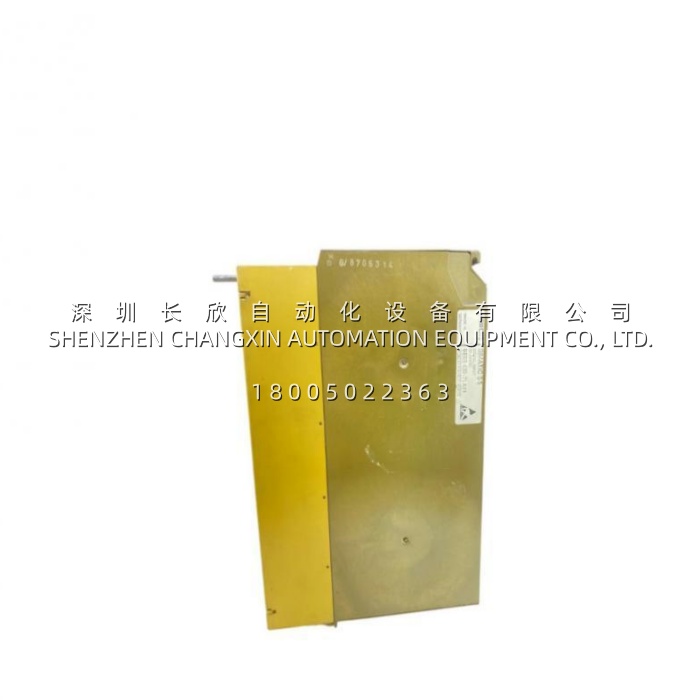

The SIEMENS 6ES5430-7LA11 is a high-performance digital input module from the SIMATIC S5 family, specifically engineered to provide reliable, isolated signal acquisition for 24V DC field devices in industrial automation systems. This module, identified as the SIMATIC S5 430 digital input module, offers 32 floating (galvanically isolated) input channels, making it an ideal interface for connecting proximity sensors, limit switches, pushbuttons, and other digital field devices to the PLC system. The SIEMENS 6ES5430-7LA11 is designed primarily for use with the S5-115U and S5-115F controllers, representing a critical component for maintaining and supporting legacy automation installations that remain operational across numerous industrial facilities worldwide .

The floating input design of the SIEMENS 6ES5430-7LA11 provides effective galvanic isolation between the field signals and the PLC’s internal logic, protecting the control system from electrical noise and potential voltage differences that commonly occur in industrial environments. This isolation capability enhances signal integrity and safeguards sensitive control electronics, ensuring stable and reliable operation. The SIEMENS 6ES5430-7LA11 features a compact and modular form factor that facilitates straightforward installation within standard S5 racks, with dimensions of 21.50 x 31.40 x 5.30 cm and a weight of approximately 0.78 kg, optimizing space utilization in control cabinets . As the SIMATIC S5 product line has been phased out, the SIEMENS 6ES5430-7LA11 serves as an essential spare part for extending the operational life of existing S5-115U/F-based systems, offering a cost-effective alternative to complete system migration.



Technical Specifications

Parameter Name	Value
Product Model	SIEMENS 6ES5430-7LA11
Manufacturer	Siemens
Product Type	Digital Input Module (SIMATIC S5 430)
Platform	SIMATIC S5
Number of Inputs	32 channels
Input Voltage	24V DC
Input Type	Floating (galvanically isolated)
Compatibility	S5-115U, S5-115F
Dimensions (W x H x D)	21.50 x 31.40 x 5.30 cm
Weight	Approx. 0.78 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Communication Support	Profibus, DeviceNet, CANopen (optional fieldbus modules)
EMI Protection	Integrated EMI filter for robust operation in noisy environments
Installation	Direct plug-in to S5-115U/F rack



Main Features and Advantages

Floating Input Design with Galvanic Isolation: The SIEMENS 6ES5430-7LA11 features 32 floating input channels that provide effective galvanic isolation between the field devices and the PLC’s internal logic circuits. This design architecture ensures that electrical noise, ground loops, and voltage differences that commonly occur in industrial environments do not compromise signal integrity or damage sensitive control electronics. The isolation capability of the SIEMENS 6ES5430-7LA11 makes it particularly suitable for applications requiring reliable signal acquisition in harsh electromagnetic environments, where stable and accurate data transmission is critical for process safety and product quality .

High-Density 32-Channel Configuration: The SIEMENS 6ES5430-7LA11 offers 32 independent input channels, enabling connection of numerous sensors and switches within a single module footprint. This high-density design reduces the number of modules required in a control cabinet, minimizing panel space consumption and simplifying system architecture. The compact dimensions of the SIEMENS 6ES5430-7LA11 facilitate efficient space utilization, making it an ideal choice for control cabinets where valuable panel space is at a premium .

Robust Industrial-Grade Construction and EMI Protection: Built to withstand the rigors of continuous industrial operation, the SIEMENS 6ES5430-7LA11 features an integrated EMI filter that provides effective protection against electromagnetic interference, a crucial characteristic in environments with high levels of radio frequency noise . The module is constructed from high-quality materials that ensure long-term durability and reliability, with an operating temperature range from 0°C to +60°C, accommodating the temperature fluctuations typical of factory floors and process plants. The SIEMENS 6ES5430-7LA11 also supports optional fieldbus communication modules such as Profibus, DeviceNet, and CANopen, providing flexible integration with various automation architectures .

Seamless Compatibility and Easy Integration: The SIEMENS 6ES5430-7LA11 is specifically designed for the SIMATIC S5-115U and S5-115F controllers, ensuring seamless integration with existing S5 automation infrastructure . The module’s plug-and-play design simplifies installation and replacement, minimizing system downtime. For facilities planning to migrate to newer Siemens automation platforms, the SIEMENS 6ES5430-7LA11 can be used with peripheral adapters to interface with S7-400 systems (e.g., adapter 6EZ2041-8UG05-OEU36 for S7-400, replacing with 6ES7421-1BL01-0AA0), providing a bridge for gradual system modernization .
