Product Overview

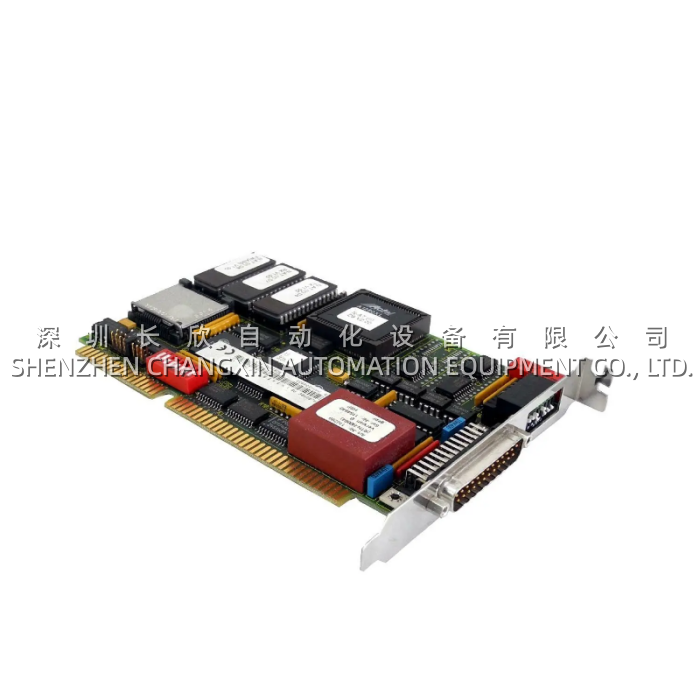

The Siemens 6DS1222-8BA​ is a Nahbus Bus Coupling Module (Busanschaltung für Nahbus), purpose-engineered as the near-range communication interface within Siemens’ legendary Teleperm M Distributed Control System (DCS). As a critical networking component, the Siemens 6DS1222-8BA​ enables high-speed, deterministic data exchange between Teleperm M function units (FUM modules), processors, and I/O assemblies over the system’s internal Nahbus – the “near bus” that interconnects devices within a single rack or closely grouped cabinet cluster. In the Teleperm M architecture, the Siemens 6DS1222-8BA​ serves as the neural communication bridge: it carries processor instructions downstream to I/O and function modules, and returns field-acquired data upstream to the central processing units, all at a robust 500 kbps over two independent Nahbus ports.First deployed in the heyday of Teleperm M – Siemens’ workhorse DCS for power generation, petrochemical, and large-process industrial applications – the Siemens 6DS1222-8BA​ has earned its reputation as a “hard currency” spare in the industrial automation community, particularly among operators of legacy power plants and chemical facilities where system uptime is non-negotiable. The module is powered by 24 V DC (with a permissible range of −20% / +25%) and draws a modest 3.0 W typical, generating minimal heat within the control cabinet. Engineered for harsh industrial environments, the Siemens 6DS1222-8BA​ features comprehensive photoelectric (optical) isolation between the bus side and internal logic circuitry, ensuring that electrical noise, transients, and ground-loop interference from large drives and switchgear cannot propagate into the Teleperm M control core. EMC performance meets full industrial-grade standards, while the conformal-coated PCB and industrial-grade component selection deliver a genuinely maintenance-free service life – many Siemens 6DS1222-8BA​ units have operated continuously for 20+ years in power plant control rooms and refinery DCS cabinets.Physically, the Siemens 6DS1222-8BA​ mounts on DIN rail or dedicated Teleperm M rack positions, carries IP20 protection for control-cabinet installation, and operates reliably from 0 °C to +60 °C with 5–95% relative humidity (non-condensing). Though Siemens has long since transitioned its DCS portfolio toward newer platforms (SPPA-T3000, PCS 7), the Siemens 6DS1222-8BA​ remains an absolutely critical spare for the thousands of Teleperm M systems still running worldwide – a testament to its rugged design and the enduring value of the Teleperm M architecture. For plant operators committed to maximizing the lifecycle of their Teleperm M investments, securing a genuine, fully tested Siemens 6DS1222-8BA​ is not merely a procurement decision – it is a strategic safeguard of operational continuity.

Technical Specifications

Main Features and Advantages

Dual Independent Nahbus Ports for Redundant CommunicationThe defining capability of the Siemens 6DS1222-8BA​ is its dual-port Nahbus architecture. With two independent bus interfaces, the module enables redundant communication paths within the Teleperm M rack cluster. Should the primary Nahbus segment experience a fault – whether due to cable compromise, connector issue, or electrical disturbance – the redundant path maintains data exchange continuity. For process plants where a DCS communication lapse can cascade into reactor upsets, turbine trips, or distillation column instability, this redundancy is not a luxury; it is a design imperative. The Siemens 6DS1222-8BA​ delivers it transparently, with no operator intervention required.Photoelectric Isolation for Bulletproof Noise ImmunityA standout protection feature of the Siemens 6DS1222-8BA​ is its optical (photoelectric) isolation between the Nahbus side and the internal logic circuitry. This galvanic separation ensures that electrical noise, ground loops, switching transients, and EMI from large motors, variable-frequency drives, and switchgear cannot propagate from the bus side into the Teleperm M processor and I/O logic. In power plant turbine decks and refinery compressor houses – environments notorious for electrical noise – the Siemens 6DS1222-8BA​ maintains rock-stable communication where lesser-isolated modules would falter.500 kbps Deterministic Nahbus ThroughputThe Siemens 6DS1222-8BA​ operates at a fixed 500 kbps on the Nahbus – a deliberately chosen speed that balances throughput with signal integrity over the short-run, rack-level bus topology of Teleperm M. Unlike high-speed fieldbuses optimized for long-distance cabling, the Nahbus is purpose-built for intra-rack communication where determinism and reliability trump raw bandwidth. The Siemens 6DS1222-8BA​ leverages this architecture to deliver predictable, low-jitter data exchange between function modules, processors, and I/O – the foundation of Teleperm M’s renowned control stability.Comprehensive Diagnostics for Rapid Fault LocalizationThe Siemens 6DS1222-8BA​ incorporates built-in diagnostic capabilities that continuously monitor bus health. Detection of bus short-circuit, open-circuit, or signal abnormality is reported immediately via front-panel LED indicators and system-level alarm messaging to the Teleperm M operator station. This rapid-feedback design enables maintenance teams to pinpoint communication faults within minutes rather than hours – a critical advantage in 24/7 continuous-process environments where every minute of diagnostic ambiguity carries real cost.
