Main Features and Advantages

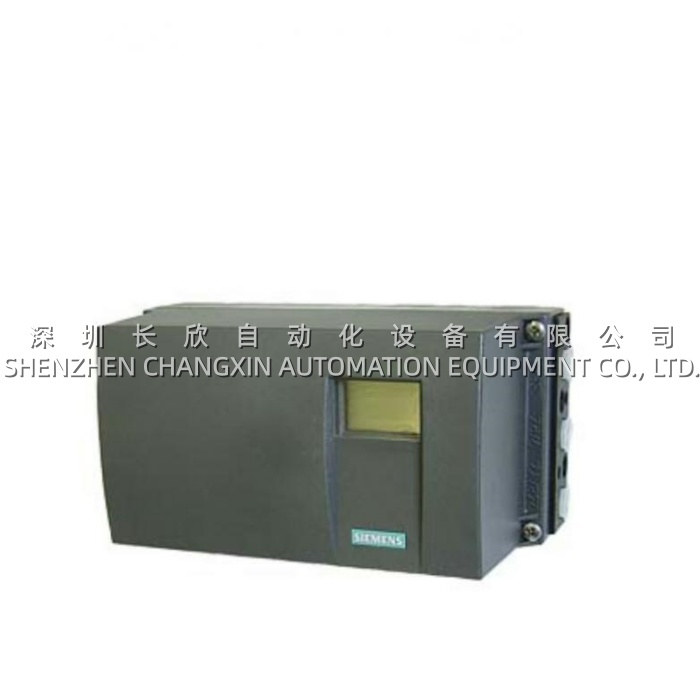

The Siemens 6DR5120-0NN00-0AA0​ delivers a compelling combination of positioning precision, commissioning simplicity, and diagnostic depth that has made the SIPART PS2 the global benchmark in smart valve positioners. Its most defining capability is the Auto-Init self-calibration: the Siemens 6DR5120-0NN00-0AA0​ uses its internal travel sensor to characterize the full stroke of the attached valve—detecting endpoints, directional sense, and mechanical hysteresis—then automatically computes optimal PID tuning parameters. What traditionally required an instrument technician 1–2 hours of manual zero/span adjustment is reduced to a single keypress or HART command on the Siemens 6DR5120-0NN00-0AA0. This capability alone pays for the positioner many times over across a plant’s lifecycle.HART 7 with unchanged analog loop:The Siemens 6DR5120-0NN00-0AA0​ carries the 4–20 mA setpoint on a 3-wire loop while overlaying HART 7 digital communication. This means plant DCS/PLC control continues uninterrupted while engineers perform configuration, read diagnostics, or execute partial-stroke tests digitally—no separate wiring, no control loop disturbance. The HART capability of the Siemens 6DR5120-0NN00-0AA0​ unlocks advanced functions such as valve signature analysis (plotting position vs. input demand to reveal stiction, packing friction, and actuator deficiencies) and partial-stroke testing (verifying ESD valve travel without fully tripping the process)—both impossible with analog-only positioners.Exceptional positioning accuracy:With a calibration uncertainty of 0.06%, the Siemens 6DR5120-0NN00-0AA0​ delivers laboratory-grade positioning in an industrial package. The internal microcontroller samples the travel sensor and setpoint at high frequency, executing PI control law that eliminates steady-state error within one or two stroke cycles. For processes where valve positioning directly controls quality variables—pH, flow, temperature, pressure—the precision of the Siemens 6DR5120-0NN00-0AA0​ translates directly into tighter quality bands and lower variability.Magnetic-coupled keypad & local LCD:The Siemens 6DR5120-0NN00-0AA0​ features a magnetic-coupled keypad that allows technicians to navigate menus and initiate Auto-Init without opening the polycarbonate enclosure—the magnetic coupling transmits key presses through the housing wall. Combined with the local LCD showing position percentage, setpoint, and diagnostic codes, the Siemens 6DR5120-0NN00-0AA0​ enables rapid commissioning and troubleshooting even in rain, washdown, or classified (Ex) areas where opening enclosures is prohibited.Rugged polycarbonate + global certifications:The polycarbonate housing of the Siemens 6DR5120-0NN00-0AA0​ delivers IP66 (dust-tight, powerful water jets), NEMA 4X (corrosion-resistant), and NEMA 7 (explosion-proof) protection. Operating from -40°C to +80°C, the Siemens 6DR5120-0NN00-0AA0​ thrives in Arctic pipeline stations, desert solar-tracking plants, tropical chemical facilities, and offshore platform topsides alike. With CE, UL, CSA, FM, ATEX, and IECEx certifications, the Siemens 6DR5120-0NN00-0AA0​ clears regulatory hurdles in every major industrial market globally.Proven global installed base:With millions of SIPART PS2 units deployed worldwide, the Siemens 6DR5120-0NN00-0AA0​ benefits from decades of field refinement. Siemens has continuously improved firmware, diagnostics, and component reliability—meaning the Siemens 6DR5120-0NN00-0AA0​ purchased today carries the collective wisdom of thirty years of valve-control experience across every process industry imaginable.

Application Field

The Siemens 6DR5120-0NN00-0AA0​ is deployed wherever a pneumatic actuator-driven valve, damper, or final control element requires precise, intelligent positioning under DCS/PLC supervision. In oil & gas production and transmission, the Siemens 6DR5120-0NN00-0AA0​ controls wellhead choke valves, separator level-control valves, compressor recycle valves, and pipeline pressure-reducing stations. Its HART 7 partial-stroke testing capability is heavily leveraged for ESD (Emergency Shutdown) valves—plant integrity teams can verify that a critical shutdown valve remains capable of stroking without actually tripping the process, satisfying API 570/574 inspection requirements. The -40°C low-temperature rating of the Siemens 6DR5120-0NN00-0AA0​ makes it ideal for Canadian oil sands, Siberian gas fields, and Nordic offshore platforms.Within power generation—coal, gas, nuclear, and renewables—the Siemens 6DR5120-0NN00-0AA0​ modulates boiler feedwater control valves, attemperator spray valves, condenser extraction valves, and turbine bypass valves. The 0.06% positioning accuracy ensures that steam temperature and drum level control loops remain tight, directly impacting unit heat rate and emissions compliance. For combined-cycle plants, the Siemens 6DR5120-0NN00-0AA0​ handles the high-cycle duty of gas-fuel control valves on GTGs (Gas Turbine Generators), where positioning precision affects NOx emissions and combustion stability.In chemical and petrochemical processing, the Siemens 6DR5120-0NN00-0AA0​ controls reactor feed valves, column reflux valves, heat exchanger bypasses, and utility headers. The polycarbonate NEMA 7 explosion-proof rating of the Siemens 6DR5120-0NN00-0AA0​ is essential in Class I Div 2 / Zone 1–2 areas where flammable vapors are present. For pharmaceutical and biotech facilities, the Siemens 6DR5120-0NN00-0AA0​ modulates clean-steam valves, CIP/SIP skid valves, and fermentation air/fluid control valves, where calibration traceability and diagnostic transparency support GMP compliance.Water and wastewater treatment plants deploy the Siemens 6DR5120-0NN00-0AA0​ on chlorine dosing valves, pH correction valves, filter backwash control valves, and sludge throughput modulation. The IP66/NEMA 4X rating withstands the washdown and outdoor exposure typical of treatment facilities. In food & beverage, pulp & paper, and metals processing, the Siemens 6DR5120-0NN00-0AA0​ similarly provides intelligent valve positioning for process-critical control loops. Across every deployment, the Siemens 6DR5120-0NN00-0AA0​ proves itself as the definitive smart positioner—delivering the precision, diagnostics, and durability that modern process automation demands, backed by Siemens’s globally recognized engineering excellence and the SIPART PS2 legacy as the world’s most trusted valve positioner platform.
