Product Overview

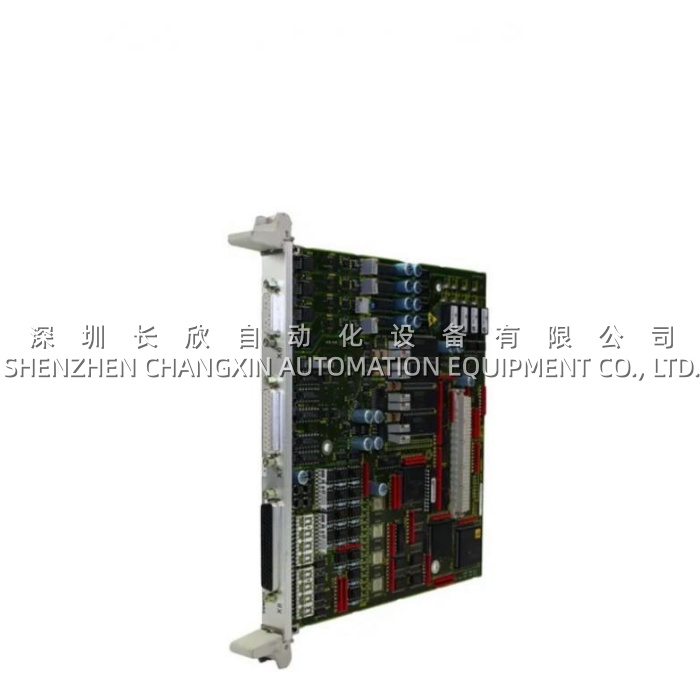

The Siemens 6DD1606-2AC0​ is a SIMADYN D processor module of the PT20G type, serving as the central computational engine for Siemens’s legendary SIMADYN D drive control and motion automation platform. As a genuine Siemens component manufactured in Germany, the Siemens 6DD1606-2AC0​ executes the real-time control algorithms that govern high-performance drive systems in steel rolling mills, turbine control installations, paper machine drives, and heavy industrial motion control applications. Within the SIMADYN D architecture, the Siemens 6DD1606-2AC0​ is unequivocally the “brain” of the system—processing digital and analog input/output signals, executing closed-loop control calculations, and coordinating communication across the SIMADYN D rack backplane with deterministic precision.Technically, the Siemens 6DD1606-2AC0​ is built around a 16-bit 80C186 microprocessor operating at 20 MHz, providing the computational horsepower required for complex industrial automation tasks. The module features one SITOR interface for high-speed data exchange within the SIMADYN D system, and supports parameter setting via the RS-232/TTY interface (X5 connector). Additionally, the Siemens 6DD1606-2AC0​ supports SINEC H1 network connection through its X6 interface, enabling communication distances of up to 50 meters to higher-level control systems. The front panel of the Siemens 6DD1606-2AC0​ incorporates a status indicator LED, an operating mode switch (ADM/RUN/STP), and a reset button—giving engineers direct, hands-on control over module operation and diagnostics.Siemens officially transitioned the Siemens 6DD1606-2AC0​ to PM500 status—fully discontinued and explicitly “deleted without replacement” since October 1, 2017. This makes the Siemens 6DD1606-2AC0​ an extraordinarily strategic spare part: there is no alternative Siemens product to fulfill its role. For the thousands of SIMADYN D installations still driving critical industrial assets worldwide, the Siemens 6DD1606-2AC0​ is not a discretionary component—it is the irreplaceable computational core that keeps production lines running. Its superior EMC shielding and robust mechanical design ensure stable operation in the most electrically hostile industrial environments, while its compact form factor (approximately 40.28 × 233.4 × 220 mm, ~1 kg) integrates seamlessly into standard SIMADYN D rack configurations.

Technical Specifications

Main Features and Advantages

The Siemens 6DD1606-2AC0​ delivers a compelling combination of deterministic processing power, robust communication capability, and industrial-grade reliability that makes it the definitive computational core for SIMADYN D drive control systems. Its most defining characteristic is the PT20G processor architecture: the Siemens 6DD1606-2AC0​ employs a 16-bit 80C186 microprocessor running at 20 MHz, providing the real-time computational performance necessary to execute complex closed-loop control algorithms for high-speed drive applications. While modern processors operate at gigahertz speeds, the Siemens 6DD1606-2AC0​ demonstrates that in deterministic industrial control, architecture matters more than raw clock rate—its streamlined instruction set and prioritized interrupt handling deliver the precise, repeatable control cycle timing that SIMADYN D systems demand.Comprehensive communication interfaces:The Siemens 6DD1606-2AC0​ provides a versatile communication portfolio tailored to industrial automation needs. The SITOR interface enables high-speed data exchange with other SIMADYN D modules within the rack, ensuring tight coupling between the processor and I/O, memory, and communication subsystems. The RS-232/TTY interface (X5) allows engineers to perform parameter setting, program downloads, and diagnostic functions directly from a PC or terminal. The SINEC H1 network interface (X6) extends connectivity up to 50 meters, enabling the Siemens 6DD1606-2AC0​ to communicate with higher-level PLCs, SCADA systems, or engineering workstations. This triple-interface architecture ensures the Siemens 6DD1606-2AC0​ integrates seamlessly into any SIMADYN D deployment topology.Direct operator control and diagnostics:Unlike modern embedded processors hidden behind software abstractions, the Siemens 6DD1606-2AC0​ puts control literally at the engineer’s fingertips. The front-panel status LED provides at-a-glance indication of module health and operating state. The three-position mode switch (ADM / RUN / STP) allows technicians to place the Siemens 6DD1606-2AC0​ into commissioning mode, normal operation, or controlled stop—without requiring software intervention. The integrated reset button enables quick module restart during troubleshooting. These physical controls of the Siemens 6DD1606-2AC0​ significantly accelerate commissioning and fault diagnosis, especially in time-critical maintenance scenarios.Superior EMC shielding and mechanical robustness:The Siemens 6DD1606-2AC0​ incorporates excellent electromagnetic compatibility (EMC) shielding and industrial-grade mechanical design. In the electrically hostile environments of steel mills, power generation facilities, and heavy industrial plants, electromagnetic interference from large motors, variable frequency drives, and switching equipment can corrupt lesser processors. The Siemens 6DD1606-2AC0​ is engineered to reject this noise, maintaining data integrity and computational accuracy even in the presence of severe electrical transients. Its robust mechanical construction ensures reliable operation under vibration, shock, and temperature cycling typical of industrial deployments.Critical legacy system enabler:The Siemens 6DD1606-2AC0​ holds the distinction of being explicitly “deleted without replacement” by Siemens—PM500 fully discontinued since October 1, 2017, with no successor product. For the thousands of SIMADYN D installations still driving critical industrial assets worldwide, the Siemens 6DD1606-2AC0​ is not a discretionary spare; it is an absolute necessity. A failed processor module can bring an entire production line to a halt, and with no alternative available from Siemens, having genuine Siemens 6DD1606-2AC0​ units in strategic stock is the only way to protect against catastrophic unplanned downtime. The Siemens 6DD1606-2AC0​ represents the convergence of irreplaceability and indispensability—a true “unobtanium” component for legacy system sustainability.
