Product Overview

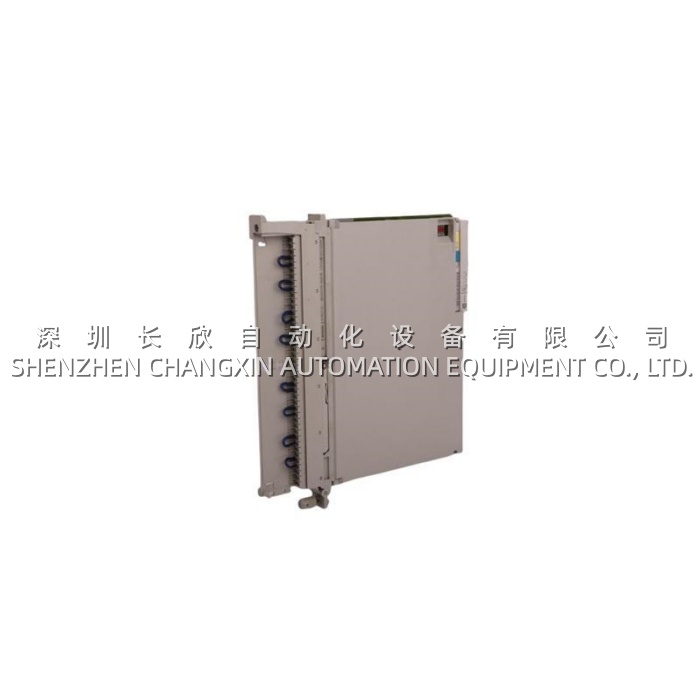

The Siemens 6DD1842-0AD1 is a specialized SIMADYN D T400 technology board engineered by Siemens for high-precision cross-cut and shear control applications . This pre-programmed module, officially designated as Siemens 6DD1842-0AD1 with the description “T400 with cross cut/SHEAR CONTROL (SPS450) REV.A”, is designed to be a turnkey solution for demanding metal processing and cutting applications . The Siemens 6DD1842-0AD1 belongs to the SIMADYN D family, a legendary automation platform from Siemens, and is equipped with a pre-installed standard program tailored for sheet cutter and shear operations.

The Siemens 6DD1842-0AD1 is typically deployed in conjunction with SIMOREG DC Master drives, such as the 6RA70 series, to coordinate the complex motion control required for rotary drum shears and cross-cutters . This contrasts with the empty T400 board (6DD1606-0AD1), as the Siemens 6DD1842-0AD1 comes factory-configured with specific firmware, eliminating the need for users to develop their own control logic from scratch . The Siemens 6DD1842-0AD1 integrates into the system via the electronic box, typically occupying Slot 2 alongside other modules like the CUD1 and CBP2 for communication . Please note that as of October 1, 2023, the Siemens 6DD1842-0AD1 has been declared end-of-life (EOL) with no planned replacement, making it a critical spare part for maintaining legacy systems .



Technical Specifications

Parameter Name	Parameter Value
Product Model	6DD1842-0AD1
Manufacturer	Siemens
Product Type	SIMADYN D T400 Technology Board (Pre-programmed)
Series/Platform	SIMADYN D
Firmware/Application	Cross Cut/Shear Control (SPS450) Rev. A
Target Application	Sheet Cutter / Shear
Typical Compatibility	SIMOREG DC Master (e.g., 6RA70)
Communication Interface	RS-485 (PROFIBUS DP), RS-232 (V.24)
Programming/Configuration	Pre-installed; Parameterizable via DriveMonitor
Required Software	DriveMonitor for commissioning
Net Weight	Approx. 0.470 kg
Packaging Dimensions	20.80 x 28.00 x 5.30 cm
Mounting Type	Panel Mount / Electronic Box Integration
Power Supply	24V DC
Product Lifecycle	PM500 (Discontinued, End of PLM since 01.10.2023)





Main Features and Advantages

Pre-Programmed Turnkey Solution: The primary advantage of the Siemens 6DD1842-0AD1 is its factory-preloaded application software. Unlike a generic T400 module (6DD1606-0AD1) requiring complex programming in STEP 7, CFC, and D7-SYS, the Siemens 6DD1842-0AD1 is immediately ready for shear-cut and cross-cut tasks . This drastically reduces engineering time and the risk of coding errors, allowing the Siemens 6DD1842-0AD1 to be deployed quickly by engineers using only DriveMonitor for parameterization .

Precision Motion Control: The Siemens 6DD1842-0AD1 contains an algorithm suitable for various types of shears, including rotary drum shears . It processes signals from encoders and light barriers to ensure precise synchronization between the material feed and the cutting mechanism, minimizing waste and ensuring product quality. The Siemens 6DD1842-0AD1 is specifically designed to execute the high-speed, real-time calculations necessary for applications where lengths must be cut accurately on the fly.

Robust Design for Harsh Environments: Built to operate across a temperature range of -20°C to +70°C, the Siemens 6DD1842-0AD1 is engineered for the punishing conditions often found on factory floors . Its SIMADYN D heritage ensures a high level of reliability and resistance to electrical noise, making the Siemens 6DD1842-0AD1 a trusted choice for continuous 24/7 operations in the metals and paper industries.

Straightforward Integration and Commissioning: The Siemens 6DD1842-0AD1 requires no complex dongles or specialized hardware for commissioning. Standard tools like DriveMonitor, connected via an RS232 cable, are sufficient to go online, access parameters, and configure the Siemens 6DD1842-0AD1 for the specific mechanical configuration . This simplicity is a key benefit for maintenance teams supporting legacy equipment.
