Product Overview

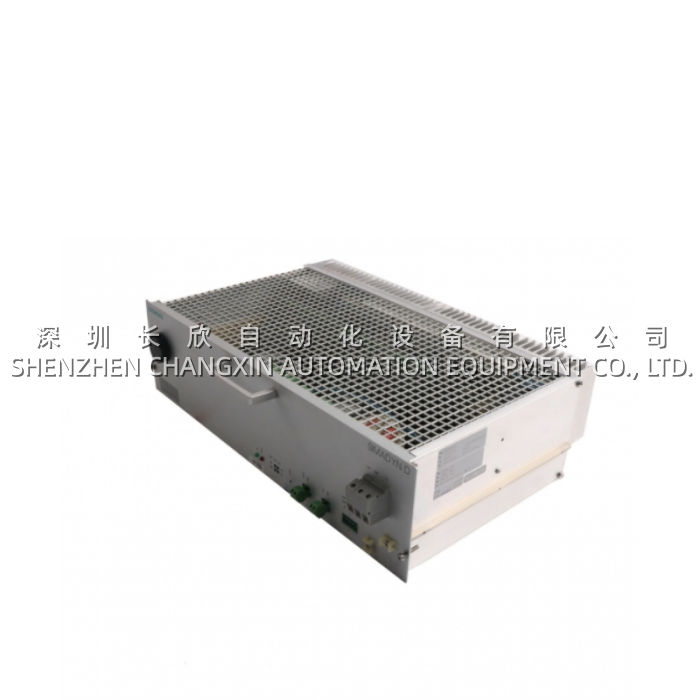

The Siemens 6DD1683-0CC5​ is a SIMADYN D power supply unit of the SP22.5 type, purpose-engineered as the primary electrical energy source for Siemens SIMADYN D drive control systems deployed in the world’s most demanding industrial environments. As a genuine Siemens component manufactured in Germany, the Siemens 6DD1683-0CC5​ converts standard 115V or 230V AC mains power into the precisely regulated low-voltage DC rails that SIMADYN D processor modules, I/O boards, and communication interfaces require to function. Within the SIMADYN D automation architecture, the Siemens 6DD1683-0CC5​ is nothing short of the system’s “electrical lifeline”—its stable 5V/25A and 15V DC outputs energize the entire rack, ensuring that motion control algorithms, closed-loop drive regulation, and high-speed data processing execute without interruption.Technically, the Siemens 6DD1683-0CC5​ is a dual-output switching power supply delivering 5V DC at 25A (125W on the 5V rail) alongside a 15V DC auxiliary output, accepting a wide-range 115/230V AC input that auto-adapts to global mains standards. The unit incorporates an integrated cooling fan to maintain optimal thermal conditions during continuous high-load operation, and its robust industrial construction—evidenced by a substantial 5.0 kg net weight—reflects the heavy-duty componentry required for 24/7 mission-critical applications. The Siemens 6DD1683-0CC5​ belongs to Siemens’s 6DD1683 power supply family, which includes sibling models such as SP7 (6DD1683-0BB0), SP8.5 (6DD1683-0BC0), SP9.5 (6DD1683-0BE5), SP22.5 (6DD1683-0CC0/0CC5), and SP23.5 (6DD1683-0CD5/0CD0), all designed to meet the Low-Voltage Directive requirements for SIMADYN D deployments.Siemens has officially transitioned the Siemens 6DD1683-0CC5​ to PM500 status—fully discontinued with product lifecycle ended since October 1, 2017, and explicitly deleted without replacement. This makes the Siemens 6DD1683-0CC5​ an extremely strategic spare part for the thousands of SIMADYN D installations still operating in steel rolling mills, gas and steam turbine control, paper machine drives, and large-scale motion control systems worldwide. For plant engineers responsible for sustaining these aging yet vital assets, the Siemens 6DD1683-0CC5​ is the trusted, OEM-original solution that guarantees compatibility, electrical integrity, and peace of mind—there is simply no successor product from Siemens to fulfill this role.

Technical Specifications

Main Features and Advantages

The Siemens 6DD1683-0CC5​ delivers a compelling combination of high-current capability, dual-rail flexibility, and industrial robustness that makes it the definitive power source for SIMADYN D control systems. Its most defining characteristic is the SP22.5 dual-output architecture: the Siemens 6DD1683-0CC5​ provides a hefty 5V DC @ 25A primary rail—delivering 125W of clean, regulated power to energize SIMADYN D processor modules, memory submodules, and digital logic—while simultaneously supplying a 15V DC auxiliary rail for analog circuitry, fan control, and interface electronics. This dual-rail design ensures that the Siemens 6DD1683-0CC5​ satisfies the complete power budget of a fully populated SIMADYN D rack from a single, compact unit.Wide-range AC input for global deployment:The Siemens 6DD1683-0CC5​ accepts 115V or 230V AC mains input, automatically adapting to power standards across North America, Europe, Asia, and beyond. This universal input capability means the Siemens 6DD1683-0CC5​ can be deployed in any geographic region without requiring external transformers or voltage converters, dramatically simplifying global spare parts logistics for multinational corporations operating SIMADYN D systems on multiple continents.Integrated forced-air cooling:High-current power supplies generate significant heat, and the Siemens 6DD1683-0CC5​ addresses this challenge head-on with a built-in cooling fan. This active thermal management ensures that the Siemens 6DD1683-0CC5​ maintains stable output characteristics even during prolonged full-load operation in control cabinets where ambient temperatures can climb substantially. The fan-cooled design extends component lifespan and prevents thermal derating, guaranteeing that the Siemens 6DD1683-0CC5​ delivers its full 5V/25A + 15V capability continuously, not just intermittently.Heavy-duty industrial construction:With a substantial 5.0 kg net weight, the Siemens 6DD1683-0CC5​ is built with industrial-grade transformers, capacitors, and power semiconductors designed for decades of reliable service. This mass is not merely structural—it represents the oversized componentry that gives the Siemens 6DD1683-0CC5​ its exceptional MTBF and immunity to electrical transients. The unit’s compliance with the Low-Voltage Directive (as part of the 6DD1683 family) confirms its adherence to European electrical safety standards, while the German manufacturing origin ensures the legendary Siemens quality that has made SIMADYN D systems the gold standard in drive control for over three decades.Critical legacy system enabler:The Siemens 6DD1683-0CC5​ holds the distinction of being explicitly “deleted without replacement” by Siemens—there is no official successor product. For the thousands of SIMADYN D installations still driving steel rolling mills, turbine control systems, paper machines, and heavy industrial motion control applications, the Siemens 6DD1683-0CC5​ is not a discretionary spare; it is an absolute necessity. A failed power supply can bring an entire production line to a halt, and with no alternative available from Siemens, having genuine Siemens 6DD1683-0CC5​ units in strategic stock is the only way to protect against catastrophic unplanned downtime. The Siemens 6DD1683-0CC5​ represents the convergence of irreplaceability and indispensability—a true “unobtanium” component for legacy system sustainability.Family interoperability:The Siemens 6DD1683-0CC5​ is part of a well-understood 6DD1683 power supply family. While each model has specific current ratings and input configurations, the mechanical form factor and rack interface are standardized across the SP7, SP8.5, SP9.5, SP22.5, and SP23.5 variants. This means that engineers familiar with the Siemens 6DD1683-0CC5​ can readily understand and service the entire family, simplifying maintenance training and documentation across facilities with mixed SIMADYN D configurations.
