Product Overview

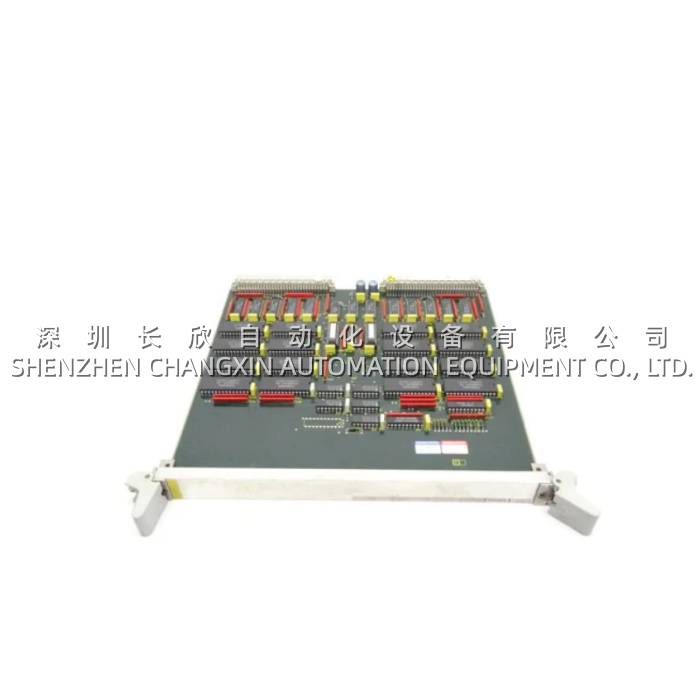

The Siemens 6DD1611-0AD0​ is an MM11 Mailbox Module—a communication buffer memory module purpose-engineered for Siemens’ renowned SIMADYN D high-dynamic drive control system. As a critical data exchange component within the SIMADYN D multi-processor architecture, the Siemens 6DD1611-0AD0​ provides 64 KB of high-speed RAM on each of the two system buses—the L-Bus (local bus) and C-Bus (communication bus)—enabling real-time, high-bandwidth data sharing between CPU boards (PM5/PM6/PM7), signal acquisition boards, and communication boards resident in the same SIMADYN D subrack. First deployed as part of Siemens’ flagship drive control platform, the Siemens 6DD1611-0AD0​ has earned its place as the indispensable “data traffic manager” for the most demanding closed-loop drive and motion control applications in heavy industry.SIMADYN D is a freely configurable, modular control system built on multi-processor technology, designed to process all open-loop and closed-loop control, arithmetic, and communication tasks involving continuously changing data at very high speed. Within this architecture, the Siemens 6DD1611-0AD0​ serves as a mailbox buffer—temporarily storing setpoints, feedback values, and fault messages as they traverse between processors, thereby relieving the main CPU of continuous communication overhead and guaranteeing the real-time responsiveness essential for high-dynamic control. The module’s dual-bus 64 KB RAM configuration ensures that both the L-Bus and C-Bus interfaces operate with sufficient buffer depth to handle burst data traffic without loss or latency.Physically, the Siemens 6DD1611-0AD0​ is built to the standard EURO card form factor for rack slot installation, drawing 24 V DC directly from the SIMADYN D backplane with negligible power consumption. Weighing approximately 0.5 kg (0.468 kg per Siemens packing data) and measuring roughly 235–284 mm in packed dimension, the module operates reliably across a temperature range of 0 °C to +55 °C (some references extend to +60 °C) in IP20-rated control cabinet environments. Siemens officially declared the Siemens 6DD1611-0AD0​ as PM500 – Discontinued Product effective October 1, 2016, deleted without replacement. Nevertheless, the module remains an absolutely critical spare part for the thousands of SIMADYN D systems still operating worldwide in rolling mills, paper machines, power exciters, and multi-motor drive applications. For plant operators committed to maximizing the lifecycle of their SIMADYN D investments, securing a fully tested Siemens 6DD1611-0AD0​ is not merely a procurement decision—it is a strategic imperative for sustained operation.

Technical Specifications

Main Features and Advantages

Dual-Bus Mailbox Architecture for True Parallel Data FlowThe defining characteristic of the Siemens 6DD1611-0AD0​ is its dual-bus mailbox design. By providing 64 KB of dedicated high-speed RAM on both the L-Bus and C-Bus, the Siemens 6DD1611-0AD0​ enables simultaneous, asynchronous data exchange between multiple processors in the SIMADYN D rack. This is analogous to building a multi-level interchange at a busy crossroads—data flows from different sources and destinations without collision or congestion. The result is a measurably smoother, more deterministic control system capable of handling the most demanding high-dynamic drive applications.Relief of CPU Communication OverheadIn a multi-processor SIMADYN D system, the CPU boards (PM5, PM6, PM7) are tasked with executing complex control algorithms, arithmetic processing, and closed-loop regulation at microsecond-level task cycles. Without the Siemens 6DD1611-0AD0, these CPUs would be forced to handle every inter-processor message directly, robbing valuable compute cycles from time-critical control tasks. The Siemens 6DD1611-0AD0​ absorbs this communication burden, buffering messages, forwarding data, and managing bus arbitration autonomously—allowing the PM-class CPUs to dedicate their full processing power to closed-loop control. This division of labor is fundamental to SIMADYN D’s ability to achieve 100 µs-class task cycles.High-Speed, Deterministic Data ExchangeThe 64 KB RAM buffers on each bus of the Siemens 6DD1611-0AD0​ are constructed from high-speed static memory, enabling data to be written and read at the full bandwidth of the SIMADYN D backplane. Setpoints, feedback values, fault messages, and diagnostic data are transferred with deterministic latency—a non-negotiable requirement for high-dynamic applications such as rolling mill drives, winder tension control, and multi-axis synchronization where even microseconds of delay can compromise product quality or equipment safety.Seamless Integration with SIMADYN D Multi-Processor SystemsThe Siemens 6DD1611-0AD0​ is natively integrated into the SIMADYN D ecosystem, requiring no additional configuration beyond insertion into an available subrack slot. It works in concert with PM5/PM6/PM7 CPU modules, MS5/MS51/MS52 memory cards, EA12 analog output boards, EB11 digital I/O boards, IT41/IT42 interface boards, and SE20.2 SITOR interface boards to form a complete, high-performance drive control system. This seamless integration—enabled by the Siemens 6DD1611-0AD0‘s transparent mailboX functionality—drastically reduces engineering effort and commissioning time.
