Description

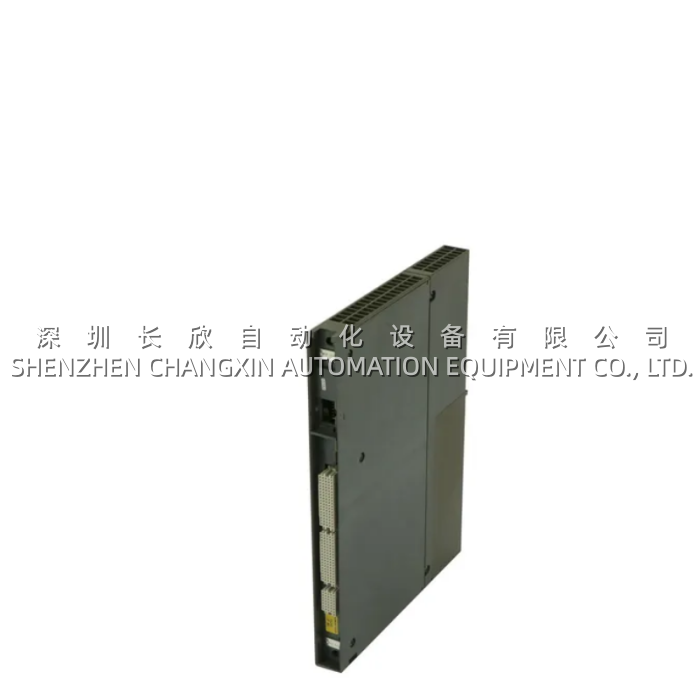

The Siemens 6DD1607-0AA1 is a high-performance FM458-1 DP application module for the SIMATIC S7-400 system, designed as a dedicated co-processor for demanding closed-loop control and motion control tasks . This powerful module offloads complex arithmetic and regulation functions from the standard S7-CPU, enabling deterministic, microsecond-level response times that are essential for high-dynamic industrial processes .

Engineered as a “heavy weapon” within the S7-400 lineup, the Siemens 6DD1607-0AA1 features an independent 64-bit RISC floating-point processor and can achieve a minimum cycle time of 0.1 ms . Its free configurability through CFC (Continuous Function Chart) and optional SFC makes it the cornerstone of modern industrial automation systems where precision and speed are non-negotiable .

Application Scenarios

Imagine a high-speed steel rolling mill where a multi-motor drive system must maintain precise tension across a continuous strip, or a paper machine where winder/unwinder operations require flawless torque and speed coordination to prevent web breaks. The standard S7-400 CPU struggles to handle the complex, high-frequency arithmetic needed for such dynamic applications. The Siemens 6DD1607-0AA1 is purpose-built to solve this challenge. Acting as a dedicated co-processor, the 6DD1607-0AA1 runs the complex closed-loop algorithms for torque, speed, and position control, communicating seamlessly with the S7-CPU via the P-bus . This architecture ensures that the core logic and safety functions remain on the main CPU while the Siemens 6DD1607-0AA1 handles the real-time “heavy lifting,” eliminating the risk of CPU overload and ensuring the mill’s output remains consistent and high-quality .

The 6DD1607-0AA1 is also the go-to choice for modernization projects. Facilities still relying on older SIMADYN D systems or facing performance bottlenecks can integrate this module into their existing S7-400 racks . It breathes new life into legacy infrastructure, providing the computational power needed for modern drive control without a complete system overhaul. Its ability to couple with EXM 438-1 I/O expansion and EXM 448 communication modules makes it an incredibly flexible solution for complex technological applications .

Parameters
