Description

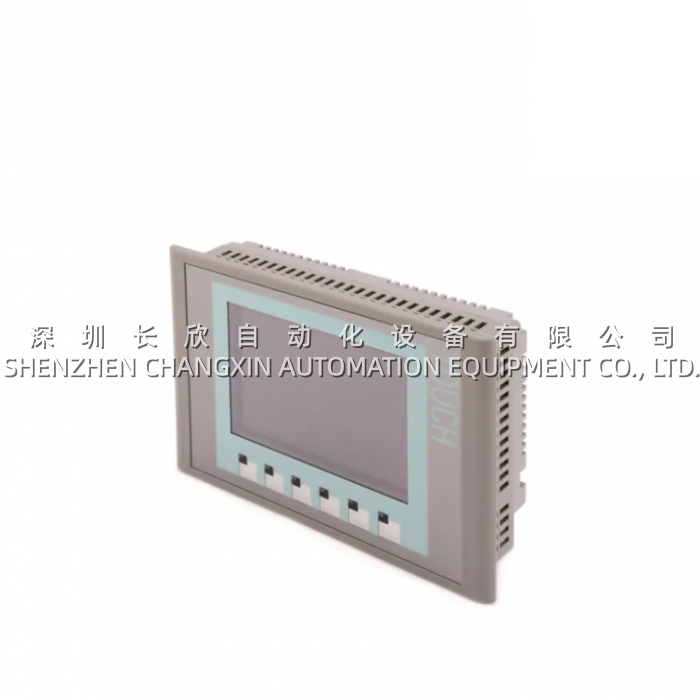

The Siemens 6AV6647-0AD11-3AX0, also known as the SIMATIC KTP600 Basic Color PN, is a compact HMI operator panel from the 1st generation Basic Panel family, designed for local operation and monitoring of simple machines and equipment. It combines a 5.7-inch color TFT display with both touchscreen and membrane keypad inputs to provide flexible and intuitive user interaction in industrial environments .

This versatile panel is engineered for applications in production, process, and building automation where space is limited but reliable operator control is essential . The Siemens 6AV6647-0AD11-3AX0 features a widescreen TFT display with 320 x 240 resolution and 256 colors, offering clear visualization of process values, alarms, and operational parameters . Its single Ethernet interface supports PROFINET protocol for seamless connectivity with SIMATIC controllers and other networked devices .



Application Scenarios

In a mid-sized packaging machinery factory, the Siemens 6AV6647-0AD11-3AX0 serves as the primary operator interface for a series of carton erecting and sealing machines controlled by SIMATIC S7-1200 PLCs. Before deploying these panels, operators relied on rudimentary push-button stations with limited feedback, making it difficult to diagnose faults and adjust parameters quickly. Production line changeovers were time-consuming, requiring frequent trips to a central control room to verify settings.

After integrating the Siemens 6AV6647-0AD11-3AX0 at each machine station, operators gained immediate access to real-time status information through the 5.7-inch color display. The intuitive touch interface of the Siemens 6AV6647-0AD11-3AX0 allows quick navigation through recipe selection, parameter adjustment, and alarm acknowledgment functions. The maintenance supervisor reported a 60% reduction in changeover time and a 45% decrease in operator-induced errors, as the panel’s clear visual cues guide users through each step of the process. The PROFINET connectivity of the Siemens 6AV6647-0AD11-3AX0 also enables remote diagnostics, allowing the engineering team to monitor machine health from a central location without disrupting production.



Parameters

Main Parameters	Value/Description
Product Model	6AV6647-0AD11-3AX0
Manufacturer	Siemens AG
Product Category	HMI Basic Panel / Operator Interface
Series	SIMATIC KTP600 Basic Color PN (1st Generation)
Display Type	5.7″ TFT LCD, 256 colors
Display Resolution	320 x 240 pixels
Active Display Area	115.2 mm x 86.4 mm
Input Method	Analog resistive touchscreen + 6 tactile function keys
Supply Voltage	24 V DC (19.2 V – 28.8 V range)
Power Consumption	9 W (typical) / 0.35 A
User Memory	1 MByte (user data) / 512 KB configuration memory
Communication Interface	1 x RJ45 Ethernet (10/100 Mbps), PROFINET
Supported Protocols	PROFINET, Modbus TCP, Ethernet/IP
Front Protection Class	IP65 (dust-tight, water jets)
Rear Protection Class	IP20
Dimensions (W x H x D)	214 mm x 158 mm x 44 mm
Mounting Cutout	197 mm x 141 mm
Weight	Approx. 1.07 kg (without packaging)
Operating Temperature	0°C to +50°C (vertical mounting)
Backlight MTBF	50,000 hours at 25°C
Configuration Software	WinCC flexible 2008 Compact or higher; WinCC Basic/Comfort (TIA Portal)
Lifecycle Status	Discontinued / Obsolete (1st Generation Basic Panel)
