Description

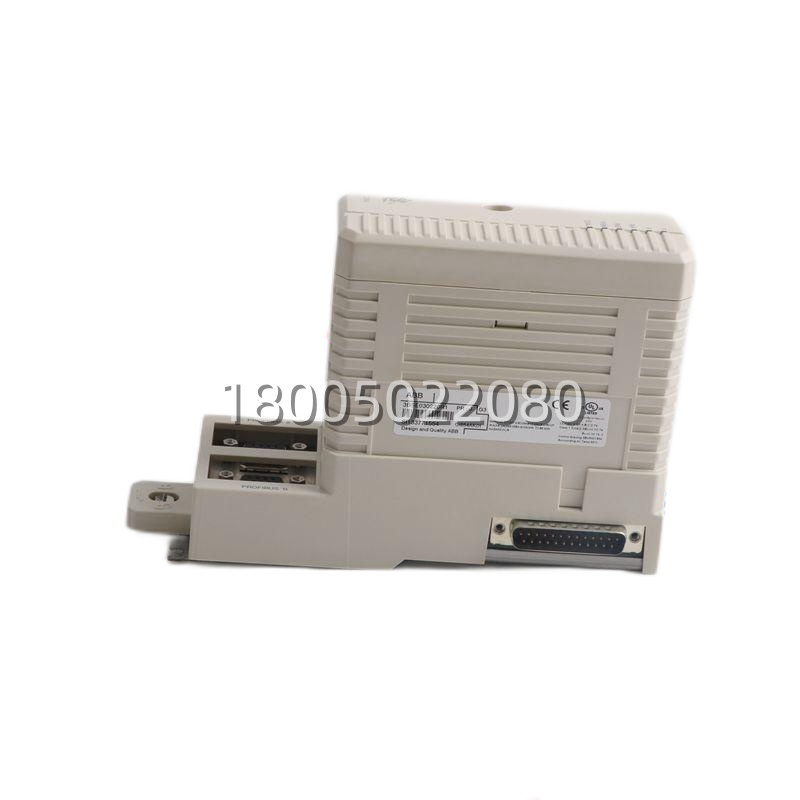

The ABB PD501 1SAP260100R3001 is a versatile analog I/O module designed for ABB’s AC 800M distributed control system and AC500 PLC series, functioning as a key interface between field instrumentation and the controller . The module supports software-configurable channels that can be independently set as analog inputs or outputs, offering exceptional flexibility for process control applications.

This high-performance module processes 4-20 mA signals with HART protocol support, enabling seamless integration of intelligent field devices such as pressure transmitters, temperature sensors, and valve positioners . Whether deployed in the modular S800 I/O station architecture or as a local/remote expansion module for AC500 systems, the ABB PD501 1SAP260100R3001 delivers the precision and reliability required for demanding continuous process control, including chemical reactions, boiler regulation, and flow control loops .



Application Scenarios

In a specialty chemical manufacturing facility, the ABB PD501 1SAP260100R3001 resolved a critical integration challenge on a distillation column control system. The facility had one remaining I/O slot in a control cabinet but needed both an analog input for a pressure transmitter and an analog output to adjust a reflux control valve. Traditional fixed-function I/O modules would have required adding an entire expansion rack. The engineering team deployed the ABB PD501 1SAP260100R3001 with three channels configured as 4-20 mA inputs for pressure, temperature, and level measurements, while the fourth channel was configured as a 4-20 mA output for the control valve. This eliminated the need for additional hardware and reduced cabinet space requirements by 40%, enabling the plant to complete the upgrade during a scheduled maintenance outage without costly panel modifications .

Beyond chemical processing, the ABB PD501 1SAP260100R3001 is widely applied in power generation for boiler feedwater control, in oil and gas for custody transfer metering, and in water/wastewater treatment for pump speed regulation and chemical dosing . Its built-in HART protocol support allows the ABB PD501 1SAP260100R3001 to communicate with smart instruments for remote configuration and diagnostics, significantly reducing field maintenance visits .



Parameters

Main Parameters	Value/Description
Product Model	PD501
Ordering Code	1SAP260100R3001
Manufacturer	ABB
Product Category	Analog I/O Module
Compatible Systems	AC 800M (S800 I/O station), AC500 (PM5xx CPUs)
Channel Count	4 channels, independently configurable (AI/AO)
Signal Types (Configurable)	4-20 mA (HART compatible), 0-20 mA, ±10V
Resolution	Input: 15-bit + sign; Output: 12-bit
Accuracy	±0.1% of full scale
Isolation	500 V AC (channel-to-bus/channel-to-ground)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Mounting	DIN rail (requires S800 base for AC 800M)
Dimensions (approx.)	86 x 86 x 94 mm
Weight (approx.)	0.11 – 0.4 kg (configuration-dependent)
Protection Rating	IP20
Certifications





Technical Principles and Innovative Values

Innovation Point 1: Software-Configurable Channel Flexibility
The ABB PD501 1SAP260100R3001 eliminates the need for separate analog input and output modules by allowing each of its four channels to be independently configured as an input or output via software in Control Builder . This is particularly valuable in space-constrained applications where an odd number of inputs and outputs are required—a single ABB PD501 1SAP260100R3001 can replace what would otherwise require two dedicated modules, saving rack slots and reducing spare parts inventory .

Innovation Point 2: Dual-System Compatibility
Unlike many I/O modules that are locked to a single platform, the ABB PD501 1SAP260100R3001 supports both the AC 800M DCS architecture (via S800 I/O stations) and the AC500 PLC family . This cross-platform compatibility simplifies engineering design for plants that utilize both ABB DCS and PLC systems, allowing a single module type to be stocked for multiple applications and reducing the engineering effort required for system integration.

Innovation Point 3: HART Protocol Integration
The ABB PD501 1SAP260100R3001 supports HART communication on its 4-20 mA channels, enabling bi-directional data exchange with intelligent field instruments . This allows operators to access diagnostic information, configure instrument parameters, and verify calibration remotely—capabilities that transform the ABB PD501 1SAP260100R3001 from a passive signal converter into an active asset management tool that reduces field maintenance costs and improves process reliability.

Innovation Point 4: High-Resolution Signal Processing
With input resolution of 15 bits plus sign and output resolution of 12 bits, the ABB PD501 1SAP260100R3001 delivers ±0.1% full-scale accuracy across its operating temperature range . The module’s temperature drift of less than 0.005%/°C ensures that measurement accuracy is maintained even in environments with significant temperature fluctuations—a critical feature for outdoor installations and unheated control rooms .
