Description

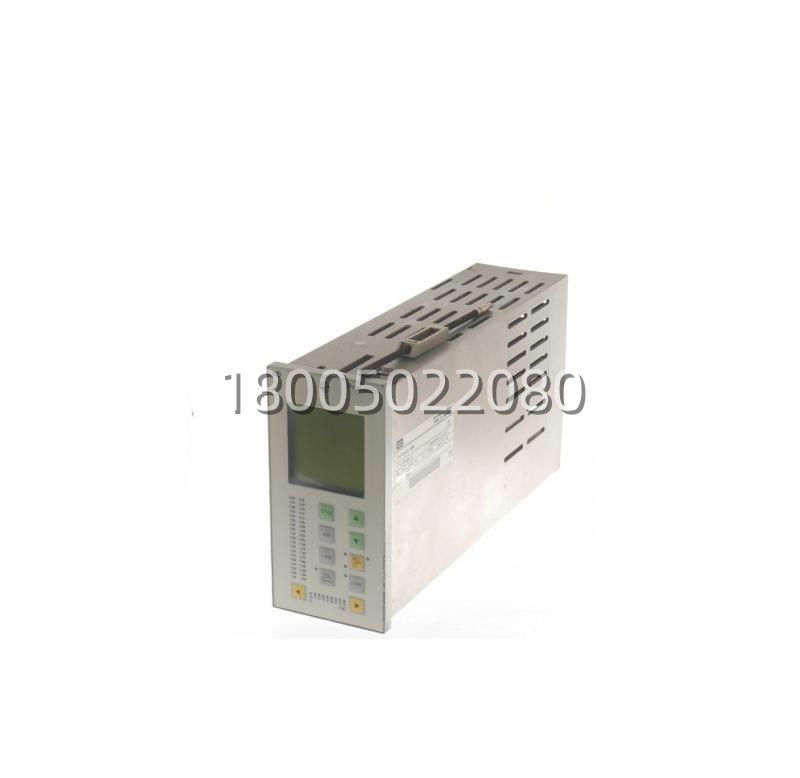

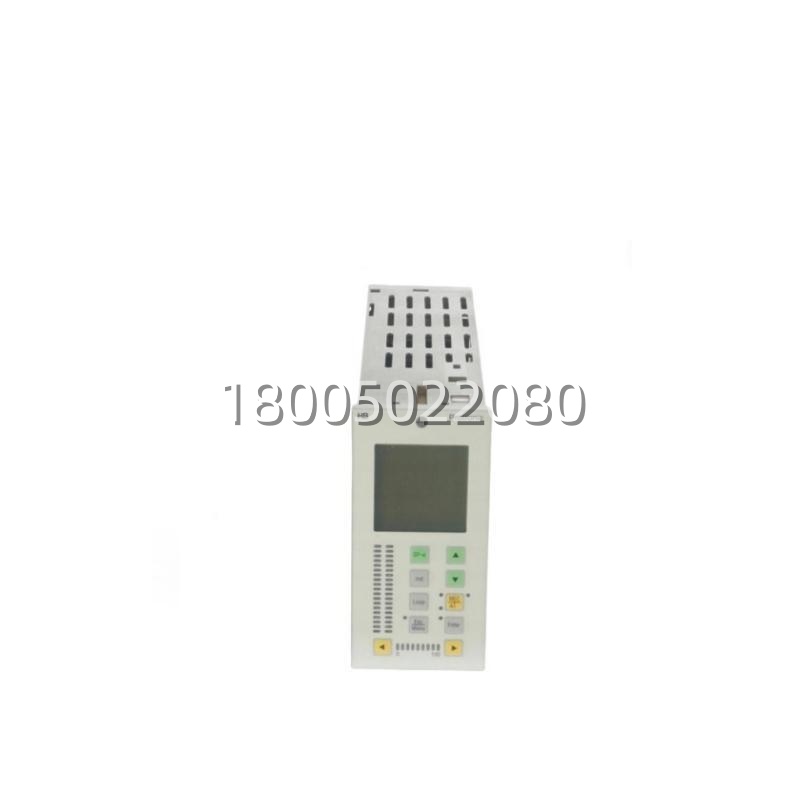

The ABB P62615-0-1101111 is a high-performance process engineering controller from ABB’s Protronic series, functioning as a standalone multi-loop process controller with PLC functionality and extensible hardware capabilities. Part of the P500/Protronic 500 family, this versatile controller integrates 1 to 4 control channels with a front-mount TFT touchscreen display and physical keypad for intuitive local operation.

Engineered to manage critical process variables such as temperature, pressure, and flow, the ABB P62615-0-1101111 combines advanced PID algorithms with automation logic to deliver precise, reliable control in demanding industrial environments. Its built-in Modbus communication capabilities enable seamless integration with SCADA systems and DCS networks, positioning the ABB P62615-0-1101111 as a cost-effective solution for modernizing legacy control schemes without extensive DCS re-engineering.



Application Scenarios

In a chemical processing plant, the ABB P62615-0-1101111 is deployed to stabilize the temperature of a critical reactor vessel experiencing thermal overshoot during exothermic reactions. Prior to installation, operators struggled with manual adjustments that led to inconsistent product quality and occasional safety alarms. The ABB P62615-0-1101111 was integrated with thermocouple sensors and cooling jacket actuators, running an autotuned PID algorithm that maintained the process within a ±0.5°C window, reducing batch cycle time by 12% and eliminating thermal-runaway incidents.

The ABB P62615-0-1101111 is also widely applied in boiler drum pressure regulation, distillation column temperature control, and flow ratio control in blending operations. Its standalone design makes it particularly valuable as a drop-in replacement for aging analog controllers—typically with minimal wiring changes, quickly restoring stable process control on a loop that had previously been operating in manual mode.



Parameters

Main Parameters	Value/Description
Product Model	P62615-0-1101111
Manufacturer	ABB
Product Category	Process Engineering Controller (Protronic 500 Series)
Control Channels	1-4 configurable control loops (multivariable PID)
Display	TFT touchscreen with physical function keys
Voltage Supply	24 V UC (AC/DC universal)
Communication Protocols	Modbus TCP/IP, Modbus RTU, DeviceNet, Profinet (depending variant)
Inputs	Universal analog inputs (thermocouple, RTD, 4-20mA, 0-10V); digital inputs
Outputs	Analog outputs (4-20mA), relay outputs (load-rated)
Control Accuracy	±0.05% of full scale typical
PID Algorithm	Autotune (self-tuning) capability
Operating Temperature	0°C to +55°C (controller); -20°C to +60°C (ambient)
Protection Rating	Front: IP65 (dustproof/water-resistant); Rear: IP20
Mounting	Panel mount, DIN rail option
Dimensions (approx.)	Panel mounting: 96 x 96 x 120 mm (1/4 DIN) or 170 x 120 x 70 mm variant
Certifications	CE, UL, ATEX (hazardous area variants)
Lifecycle	Active (check firmware/version compatibility)





Technical Principles and Innovative Values

Innovation Point 1: Integrated PID with PLC Capability
The ABB P62615-0-1101111 functions as a process controller with built-in PLC functionality (IEC 61131-3), enabling both continuous PID loop regulation and sequential logic control within a single compact device. For temperature control applications, the ABB P62615-0-1101111 can operate independently using its autotune PID algorithm, while simultaneously executing interlock logic—such as shutting down a heater if flow is lost—without external PLC hardware.

Innovation Point 2: Flexible Configuration and Advanced Tuning
Featuring advanced PID algorithms with autotune, the ABB P62615-0-1101111 can analyze the process response and automatically calculate optimal parameters (proportional gain, integral/reset time, derivative/rate), eliminating the guesswork of manual tuning. This self-tuning capability, combined with programmable setpoint profiles, ensures consistent product quality across different product changeovers.

Innovation Point 3: Standalone Architecture with Network Connectivity
Designed as a self-contained unit with front-panel display and keypad, the ABB P62615-0-1101111 can operate completely standalone, directly connected to sensors and actuators. However, its Modbus TCP/IP and RTU communication protocols allow remote monitoring and setpoint adjustment from a central DCS or SCADA system, offering the flexibility of a distributed control architecture without the cost of full DCS expansion.

Innovation Point 4: Direct Replacement for Legacy Analog Controllers
The ABB P62615-0-1101111 is engineered to be a practical retrofit solution for obsolete analog or single-loop digital controllers. Its mounting dimensions and terminal arrangements often accommodate existing panel cutouts, requiring minimal wiring changes. This drop-in compatibility allows plants to upgrade from analog controls to advanced digital PID capabilities without major panel rework, preserving capital budgets and minimizing downtime.
