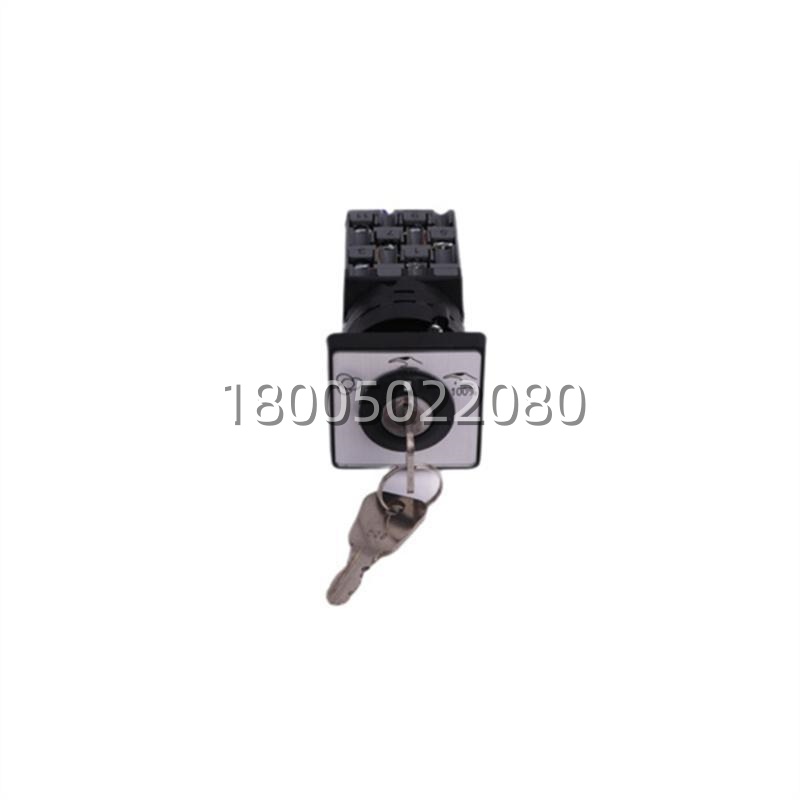

DescriptionThe ABB ON6KB-S6048-41V​ is a compact rotary cam switch from ABB’s ON series, configured with a black standard knob (KB suffix) for panel-mount installation on 22.5 mm diameter cutouts. The “S6048” denotes a specific ABB cam-contact program (defining which poles open/close at which detent positions—number of positions, NO/NC spread, spring-return vs. fixed-detent), while “41V” is ABB’s internal order-variant/config code—not a 41 V voltage rating​ (the switch’s Ui is 500 V AC, Ue up to 400/500 V AC depending on utilization category). With 10 A thermal current (Ith), silver-alloy contacts, and a 1-million-cycle mechanical life, the ON6KB-S6048-41V​ is the workhorse “mode-select” switch on MCC doors, PLC cabinet fronts, and local/remote hand-off-auto stations across power, water, and process plants.

Application ScenariosA regional water utility running 18 MCC lineups for stormwater pump stations had a familiar panel-level headache: the original OT-series cam switches on the “Local / Off / Remote / Hand / Auto” door selectors were 25-year-old, and ABB had long since replaced OT/OC with the ON compact series. During a storm-event retrofit, the E&I crew swapped the failed OT units for ABB ON6KB-S6048-41V​ with an S6048 cam program matching the old OT’s 3-position (L–O–R, spring-return-to-O from L/R) + 2-pole NO/NC contact spread. The ON6KB’s φ22.5 mm cutout matched the original OT’s 22 mm hole (minor trim, not a new door cut), the black KB knob gave the same “grip-and-twist” feel to the operators, and the IP65 front-seal with the supplied O-ring meant the pump-station humidity (salt-spray zone, 90% RH) stopped creeping behind the panel—the old OT’s seal had hardened and was weeping after year 18. Post-cutover, the utility standardized ON6KB-S6048-41V​ as the universal L-O-R/H-O-A door-switch across all 18 lineups, keeping two spares on the shelf (≈12% of installed count, per the 10–20% rule quoted by the supplier base). When a second OT failed three months later on Pump 7, the swap took 8 minutes—door open, 22 mm nut off, unplug 8-pole screw terminal strip, rack new ON6KB, torque, done. No re-labeling, no operator re-training.

Parameter

Technical Principles and Innovative Values

• Innovation Point 1: Stacked Cam-Disc + Silver-Alloy Fast-Acting Contacts, Zero Electronics.​ The ON6KB-S6048-41V​ has no PCB, no encoder, no electronics—just stacked phenolic cam discs on the rotor shaft, each disc physically pushing a silver-alloy bridge contact at a defined angular window. This makes it immune to the EMI that fries proximity sensors in VFD-heavy MCCs, and the AgNi/AgCdO alloy shrugs off the micropitting that plagues cheap Zn-plated contacts in humid pump stations. The “fast-acting” snap mechanism ensures the contact breaks clean at the detent—no dwell-arcing.
• Innovation Point 2: S-Code Cam Program = Application-Specific Wiring Without Jumpers.​ The “S6048” isn’t random—it’s one of ABB’s pre-engineered cam charts (S = “special program” in ABB’s ON/OT sample). It defines, say, “Position 0 = all poles open, Position 1 = Pole A NO + Pole B NC closed, Position 2 = Pole A NC + Pole B NO closed” etc., with optional spring-return from 1→0 and 2→0. This means the ON6KB-S6048-41V​ lands on the MCC door pre-wired to the S6048 chart—your electrician doesn’t jumper 8 terminals to make a L-O-R+H-O-A logic; ABB already encoded it in the cam stack. (If your plant’s original OT had a different S-number, ABB can re-issue the same S-chart on the ON body—ask for the S-cross-reference.)
• Innovation Point 3: OT/OC Retrofit Form Factor with Modern Seal.​ The ON compact series was ABB’s answer to the bulky old OT/OC cam switches—same φ22.5 mm cutout, same 10 A Ith class, but shorter behind-panel depth and a modern IP65 front-seal O-ring. The ON6KB-S6048-41V​ drops into an OT/OC cutout with at most a minor trim-ring change, giving plants a lifecycle path without re-cutting MCC doors. The KB black knob is the “standard industrial” look—there are also KH (high knob), KL (long lever), etc., if your ergonomics differ.

Application Cases and Industry ValueA food-processing chill plant running 12 ammonia compressor MCCs had all OT-series “Hand-Off-Auto” door switches dating to 1998. The OT’s seal rings had hardened, and during the daily washdown (HI-COMP sanitizer mist, 85% RH), three switches failed “wet” in one season—causing the compressor VFD to see a floating H-O-A contact and default to “Off” mid-cycle (nuisance trip, lost reefer tonnage). The retrofit spec called for ABB ON6KB-S6048-41V​ with the S6048 cam (H-O-A + an extra NO for “running-ack” lamp) and the IP65 O-ring torqued to spec. Post-cutover, zero washdown-related H-O-A floats across two seasons. The plant E&I lead noted the ON6KB‘s shorter back-depth (≈30 mm vs. OT’s ≈45 mm) actually helped in two shallow-door MCCs where the OT’s rear was fouling a vertical tray—”the ON gave us 15 mm breathing room we didn’t know we needed.”Related Product Combination SolutionsStock or migrate an MCC/PLC front-panel node around the ABB ON6KB-S6048-41V​ with these companions:

• ABB ON6KB-S6048-08W​ – Same ON6KB base + S6048 cam, but 08W handle/marking variant; if your ON6KB-S6048-41V​ is NLA, the 08W may be the active production substitute—verify S6048 chart matches.
• ABB OT Series (OT16E/OT25E/etc.)​ – The discontinued predecessor to ON compact; if you’re replacing an OT, the ON6KB-S6048-41V​ is the form-fit successor—but alwayscheck behind-panel depth and cam S-number cross-reference before assuming drop-in.
• ABB OC Series​ – Older OC cam switches (bulkier, DIN-rail mount variant); ON series replaced these too—different mounting (ON = panel, OC = DIN/panel), so not a direct swap without dress change.
• ABB CP1-10.. / CP1-30..​ – 22 mm pushbutton/pilot-light family; often shares the same MCC door cutout as the ON6KB—if your door has a “Run” pilot lamp + H-O-A cam, the CP1-30 indicator sits next to the ON6KB in the same 22 mm grid.
• ABB MS116 / MS132​ – Manual motor starter, often downstream of the ON6KB​ H-O-A on small pump skids (ON6KB selects “Hand” = local starter, “Auto” = PLC via contactor).
• ABB S6048 Cam Chart Printout​ – Not a product, but a must-have: request ABB’s S6048 contact-timing drawing before ordering; S-numbers are plant-specific and ABB can re-issue an older OT S-chart on ON body if yours doesn’t match S6048 exactly.
