Product Overview

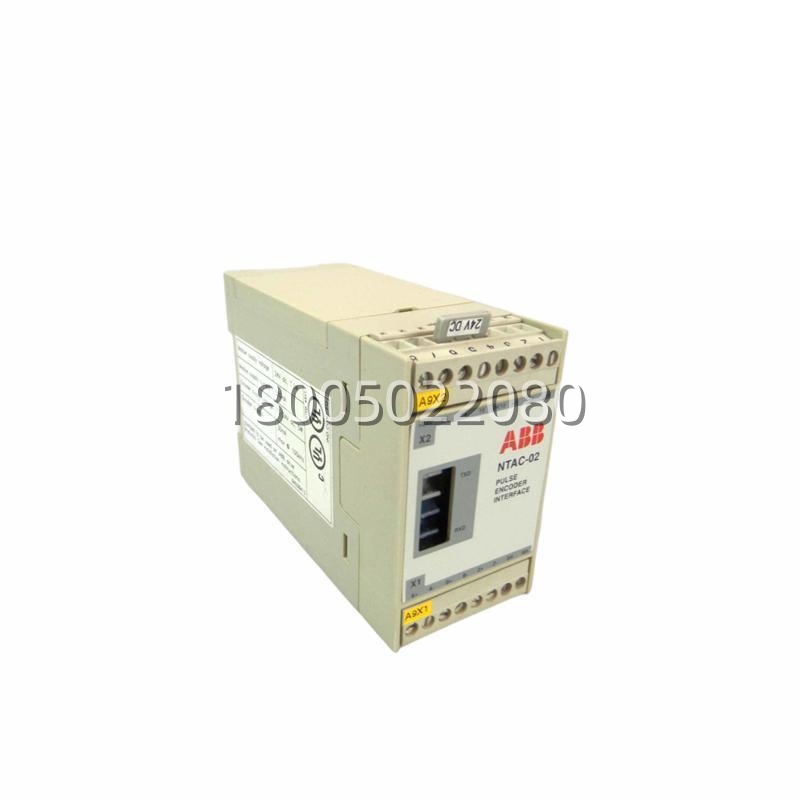

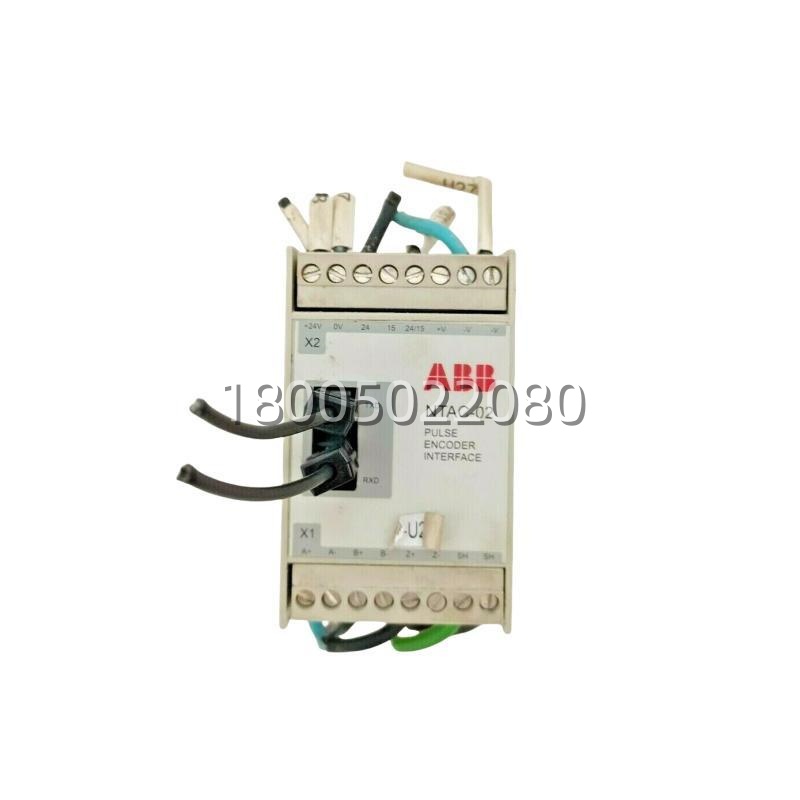

The ABB NTAC-02 is a dedicated Pulse Encoder Interface Module engineered by ABB to provide precise motor speed and position feedback for ACS600 and ACS800 series variable frequency drives . This module serves as the critical link between incremental encoders mounted on motor shafts and the drive’s vector control algorithms, enabling high-performance closed-loop control essential for demanding industrial applications . The ABB NTAC-02 is part of ABB’s modular option board family and connects to the drive’s NAMC (Application and Motor Controller) board via a fiber optic DDCS (Distributed Drive Control System) communication link, ensuring robust signal transmission immune to electrical interference .

The ABB NTAC-02 processes A, B, and Z channel signals from incremental encoders, supporting both differential RS-422 and single-ended TTL inputs with a maximum pulse rate of 300 kHz . This capability enables the drive to achieve sub-RPM speed accuracy and precise position control, making the ABB NTAC-02 indispensable for applications such as cranes, elevators, extruders, and machine tools . The module is equipped with galvanic isolation between encoder circuits and drive power electronics, protecting sensitive components from voltage transients and ground loops common in industrial environments . The ABB NTAC-02 is configured via drive parameters accessible through the control panel or DriveWindow software, requiring no hardware jumpers or DIP switches for basic operation . While the ABB NTAC-02 has reached a mature lifecycle phase, it remains a critical spare part for maintaining thousands of legacy ACS drive systems still in operation worldwide .



Technical Specifications

Parameter Name	Parameter Value
Product Model	NTAC-02
Manufacturer	ABB
Product Type	Pulse Encoder Interface Module
Series Compatibility	ABB ACS600, ACS800 Series Drives
Encoder Compatibility	Incremental Pulse Encoders (A, B, Z channels)
Input Signal Types	Differential RS-422, Single-ended TTL
Maximum Input Frequency	300 kHz
Supported Resolution	100 to 10,000 pulses per revolution
Encoder Supply Voltage	24V DC output (for encoder power)
Module Supply Voltage	24V DC (±20%)
Power Consumption	30 mA typical
Isolation Type	Galvanic isolation between encoder and drive circuits
Communication Link	Fiber Optic DDCS Protocol
Node Address Range	1-31 (even numbers required)
Mounting Type	Plug-in module on drive control board; DIN rail optional
Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +85°C
Protection Rating	IP20
Connector Type	Screw terminals for encoder wiring
Response Time	1 ms
Weight	Approx. 0.2 – 0.3 kg





Main Features and Advantages

High-Frequency Encoder Signal Processing: The ABB NTAC-02 supports a maximum input frequency of 300 kHz, enabling the use of high-resolution encoders up to 10,000 pulses per revolution . This capability delivers precise speed and position feedback essential for applications requiring sub-RPM accuracy and smooth low-speed operation. The ABB NTAC-02 processes A, B, and Z (index) channels simultaneously, providing both incremental position tracking and absolute reference positioning for homing sequences.

Robust Differential Input and Noise Immunity: The ABB NTAC-02 features RS-422 differential input architecture, providing superior noise immunity in electrically harsh environments where VFD switching noise and electromagnetic interference are prevalent . This design enables reliable encoder signal transmission over extended cable runs up to 100 meters, making the ABB NTAC-02 suitable for large industrial installations where drives and encoders are physically separated.

Fiber Optic Communication for Drive Integration: The ABB NTAC-02 communicates with the drive’s NAMC control board via fiber optic DDCS protocol, ensuring complete electrical isolation and immunity to electromagnetic interference . The module is typically connected in a circular daisy-chain configuration on the CH1 channel, with the NAMC board acting as the master station that cyclically polls the ABB NTAC-02 for encoder data . Multiple DDCS modules can be connected on the same channel, enabling flexible system expansion.

Galvanic Isolation for System Protection: The ABB NTAC-02 incorporates complete electrical isolation between the encoder circuits and drive power electronics, preventing ground loops and protecting sensitive encoder electronics from voltage transients and fault conditions . This isolation is critical for maintaining signal integrity and preventing damage to the ABB NTAC-02 and connected drives in industrial environments.

Comprehensive Diagnostics and Fault Detection: The ABB NTAC-02 includes continuous monitoring of encoder signal quality, including phase relationship verification, pulse symmetry analysis, and signal amplitude detection . Automatic fault detection triggers drive trips on encoder failure, preventing uncontrolled operation and protecting equipment. LED indicators on the ABB NTAC-02 provide visual status indication for power, signal activity, and fault conditions, enabling rapid on-site troubleshooting .

Flexible Encoder Configuration: The ABB NTAC-02 supports a wide range of incremental encoders with resolutions from 100 to 10,000 PPR, accommodating both push-pull, open-collector, and open-emitter output types . Configuration is performed through drive parameters (Groups 90-92) rather than hardware jumpers, simplifying setup and allowing adjustment without accessing the module .
