Application ScenariosA regional water utility running eighteen 75 kW ACS800 drives on chemical-feed pumps (polymer, chlorine, caustic) originally wired every drive with 4 DI (Start/Stop/Remote/Fault Reset) + 2 DO (Running/Fault) + 1 AO (speed feedback 4–20 mA) back to the S7-400 MCC panels—thirty-six terminal strips across three MCC lineups, and every pump changeover meant a loop-check marathon. The retrofit added an ABB NPBA-80​ to each ACS800’s option slot (FS1, alongside the NIOC-01 we covered last round), landed one Profibus DP daisy-chain down the pump skid at 1.5 Mbps, and collapsed the 4 DI + 2 DO + 1 AO into a single PPO type 2 telegram (6 PD + 6 PZD). The S7-400 became the DP master, the NPBA-80​ the slave at station address 21–38. Commissioning win: the DP V1 non-cyclic channel let the SCADA tech remotely read drive fault words and even tweak accel/decel ramps from the control room during polymer-viscosity trials—no more walking the MCC with a Drive Composer laptop. Six months in, the utility measured a 40% reduction in MCC-terminal-related nuisance trips (vibration-loosened screws on 54 DI terminals were the old #1 failure mode) and cut new-pump loop-check time from 6 hours to 45 minutes.Parameter

Technical Principles and Innovative Values

• Innovation Point 1: DP V0 + V1 in One Drive-Side Module.​ The ABB NPBA-80​ isn’t just a cyclic slave—it speaks both DP V0 (periodic PPO exchange: control word / status word / speed setpoint / current feedback) and DP V1 (non-cyclic, via the DP-master’s parameter channel). This means a plant engineer can remotely read a drive fault code word, change an accel ramp, or toggle a drive parameter from the S7-400/WinCC without ever opening the drive door. During commissioning of a 12-drive skid, this alone saves hours per drive.
• Innovation Point 2: Drive-Powered, No Separate 24 V Feed.​ The NPBA-80​ draws its 10–25 V DC from the host drive’s internal option bus (the same rail that feeds NIOC-01, FENA, FECA etc.). 70 mA @ 24 V is negligible against the drive’s control-unit PSU budget. For external DIN-mount on ACS600/ACQ where there’s no host drive PSU, a small external 24 V DC feed to the NPBA-80‘s pigtail covers it—but in 90% of deployments (ACS800 door-mount), it’s parasitic and invisible.

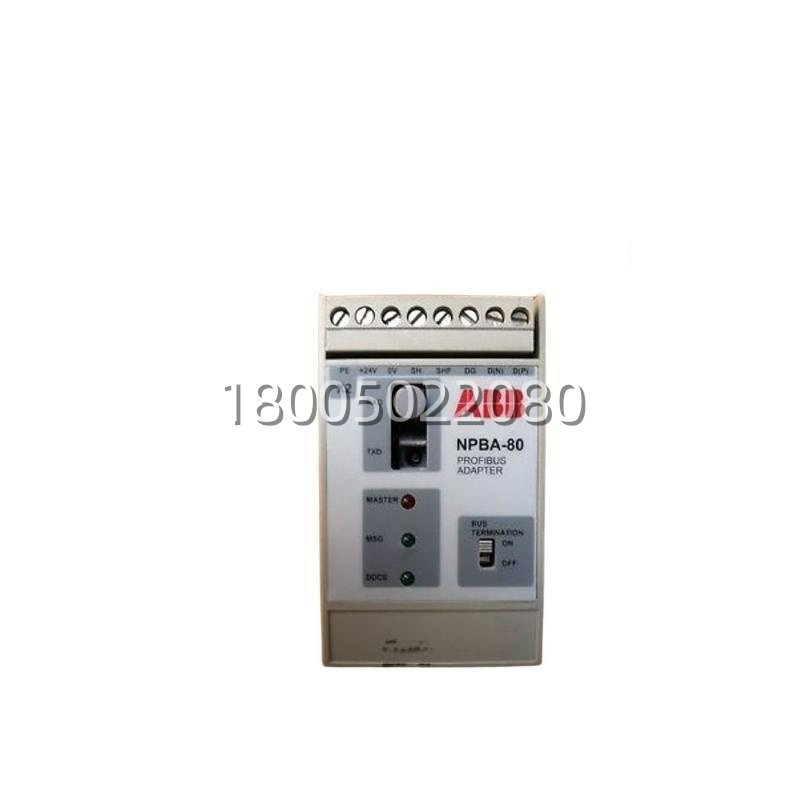

• Innovation Point 3: Multi-Color LED Array for “Cabinet-Door Diagnostics.”​ The front face of the NPBA-80​ carries a row of LEDs: PWR (supply), BF (bus fault / baud detect), ACT (data exchange active), and sometimes a SYS/STAT depending on batch. Standing at the MCC door, a flashing BF + steady PWR means “baud mismatch / missing 120 Ω terminator”—you fix the Profibus cabling before you ever touch Drive Composer. This is the difference between a 5-minute fix and a 2-hour “why won’t the PLC talk to the drive” scavenger hunt.

Application Cases and Industry ValueA food-processing chill plant running six 200 HP ammonia screw compressors on ACS800-01 drives (each with ABB NPBA-80​ at Profibus DP station 11–16, S7-400 master) hit a recurring nuisance: during weekend defrost cycles on the adjacent evaporators, the shared 480 V feeder’s dV/dt would occasionally cause the NPBA-80‘s DB9 shield drain to pick up enough common-mode that the S7 saw a “slave lost” blip—three compressors would fault-safe to coast for 200 ms, then re-sync. Not enough to trip the chillers, but enough to log a “process disturbance” every defrost cycle. The fix: the plant re-dressed the Profibus daisy-chain with double-screened Belden + grounded the shield at the S7-400 end only (previously both ends grounded, creating a ground loop through the NPBA-80‘s DB9 shell). Post-cutover, zero DP drops across two defrost seasons. The plant E&I lead noted the NPBA-80‘s ACT LED going dark during the blip was what tipped them off—”if it was the drive dropping, the NIOC-01 RUN LED would’ve blinked too; ACT-only meant it’s the DP physical layer.” That diagnostic split is why they keep two NPBA-80​ spares on the chill-plant shelf even though the drives themselves are healthy.Related Product Combination SolutionsBuild or sustain an ACS800/ACS600 drive node around the ABB NPBA-80​ with these companions:

• ABB NIOC-01 (3BSE005735R1)​ – The I/O & fieldbus host board inside ACS800; the NPBA-80​ plugs into FS1/FS2 of the NIOC-01 (or sits standalone on ACS600 DIN rail). Covered in our previous entry.
• ABB NPBA-11 / NPBA-12 / NPBA-13​ – Sister adapters on other fieldbus flavors (NPBA-11 = DeviceNet, NPBA-12 = CANopen, NPBA-13 = Modbus RTU/TCP depending on region)—choose the NPBA-80​ when the plant standard is Profibus-DP.
• ABB FENA-11 / FENA-21​ – Profinet alternative to the NPBA-80; if your plant is migrating S7-400 → S7-1500 with Profinet, swap the NPBA-80​ for a FENA-11 on the same NIOC-01 FS1 slot.
• ABB FECA-01​ – PROFIBUS DP alternative with different connector/form-factor for some ACS batches; verify drive firmware compatibility before cross-substituting with NPBA-80.
• ABB RMIO-01​ – ACS800 main I/O & control board (the “brain” upstream of NIOC-01 + NPBA-80); if DP works but drive won’t run, RMIO is next suspect.
• ABB ACS800-01-xA-xxx​ – The wall-mount drive housing that typically carries the NPBA-80​ + NIOC-01 behind the door.
• Siemens 6ES7972-0BA52-0XA0​ – PROFIBUS connector (with 120 Ω tap) for the NPBA-80‘s DB9 end; every DP node needs one, and the last node needs the terminator ON.
