Product Overview

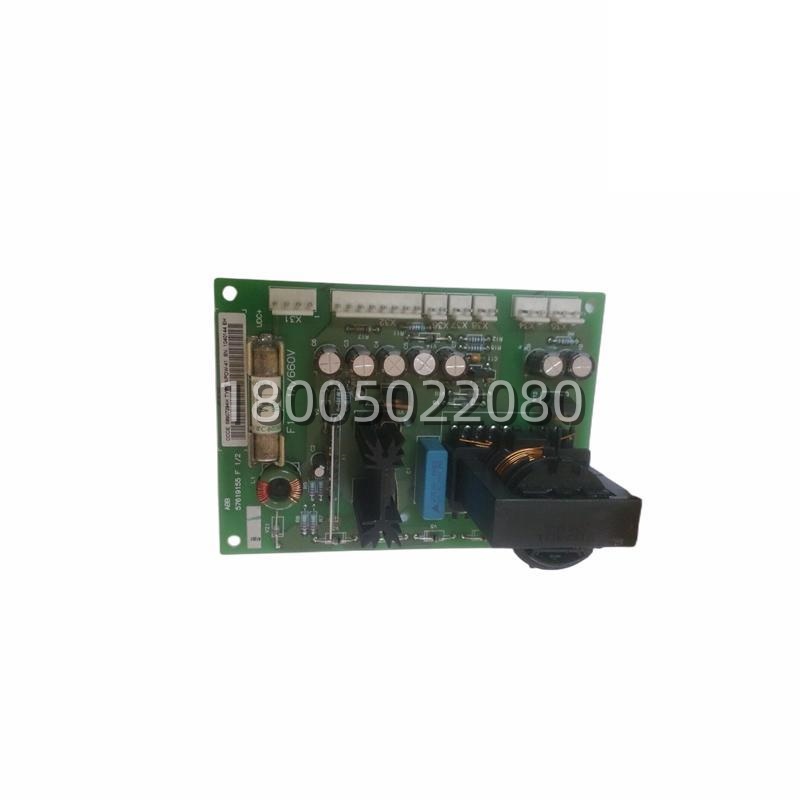

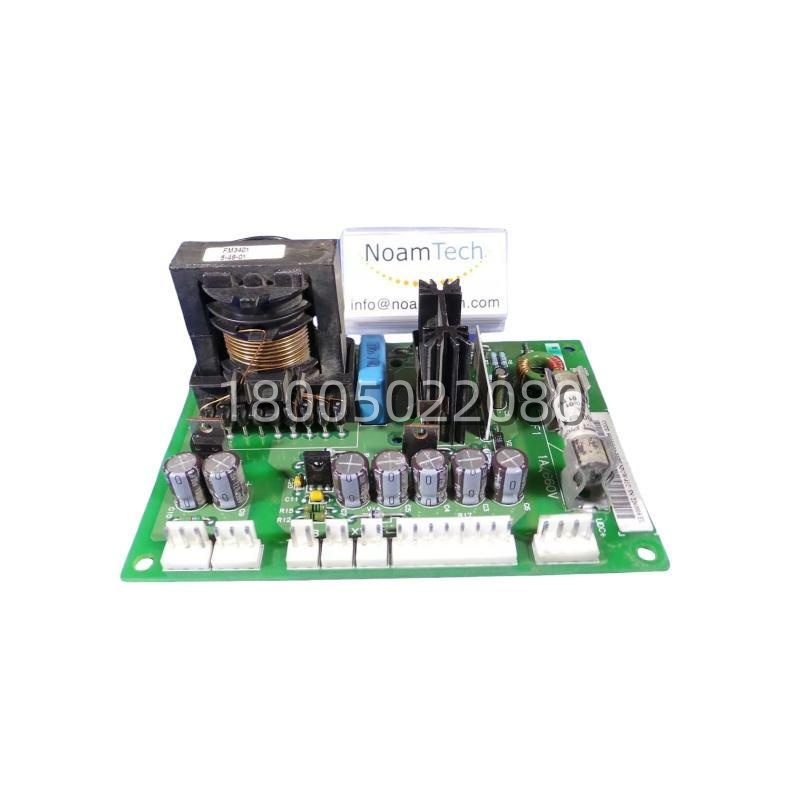

The ABB NPOW-41​ (order/article number 58907294) is a PCB-mounted switching power supply board belonging to ABB’s Bailey Symphony / Infi 90 / Melody DCS accessory family, engineered to seat into the 19-inch DCS rack’s power-slot and deliver multi-rail regulated DC to the I/O cards, backplane bus, and control-loop electronics that populate the same rack. While ABB also offers the NPOW-41C​ variant for the ACS600/ACS800 drive control section (a different context — see Related Products), the NPOW-41​ proper (58907294) is the DCS-rack PSU: a compact, high-efficiency switcher that accepts a globally compatible 85–264 V AC input (47–63 Hz) and outputs three regulated DC rails — 24 V DC ±1 % at 5 A (120 W main, for I/O card power and relay drive), +5 V DC at 2 A (for on-board logic and digital I/O Vcc), and ±15 V DC at 0.5 A (for analog I/O front-ends and transducer excitation). This “one board, three rails” architecture means a single NPOW-41​ can power an entire I/O station’s digital + analog + relay needs without external DC-DC converters, which is why ABB’s reference Infi 90 cabinet builds specify 1–2 NPOW-41​ units per I/O station (redundant pair) feeding 8–16 I/O cards (NPCT, NCOM, NDIO class).The ABB NPOW-41​ is built on a 140 × 74 × 38 mm PCB (≈0.5 kg), conformal-coated for cabinet-internal deployment (IP20, –20…+70 °C operating range, 5–95 % RH non-condensing), with a solid-state design rated >150,000 hours MTBF. Front-face LEDs (PWR / OK / FAULT) give at-a-glance health, and the NPOW-41​ supports dual-module parallel redundancy — two units can be strapped in the same rack-slot pair, sharing load, with seamless failover if one trips, which is the standard build for process plants where a DCS rack PSU failure would trip an I/O station and potentially a process unit. Protection is comprehensive: overvoltage (OVP), undervoltage, overcurrent (OCP), short-circuit (SCP), over-temperature (OTP), and reverse-polarity on the DC outputs — the fault-self-lock feature latches the fault state so maintenance can identify whichunit tripped in a redundant pair rather than guessing from a dark rack.Lifecycle-wise, the NPOW-41​ (58907294) is discontinued by ABB for new design-in — the Symphony Plus / Infi 90 installed base is mature, and ABB steers greenfield toward AC 800M / 800xA with different PSU architecture — but the number of Infi 90 cabinets still running globally (power-gen, oil & gas, petrochemical, metals, water) is very large, and the NPOW-41​ remains an active spare-line item because “swap the PSU board” is far cheaper than re-racking a DCS I/O station onto a newer PSU family. The NPOW-41C​ drive variant (ACS600/ACS800) shares the “NPOW-41” name but is a different article — see Related Products.

Technical Specifications

Main Features and Advantages

Three-Rail Output on One PCB.​ The standout of the NPOW-41​ is that it isn’t a single-rail “24 V only” brick — it delivers the three DC voltages a DCS I/O station actually needs: 24 V DC for I/O card logic and relay drive (the 5 A / 120 W main), +5 V DC for the digital-logic side of the I/O cards and backplane bus transceivers, and ±15 V DC for the analog input sections (transmitter excitation, instrument amp rails, 4–20 mA loop reference). In an Infi 90 I/O station with, say, 4× NPCT (process control I/O), 2× NCOM (communication), 2× NDIO (digital I/O) — total 8 cards — the NPOW-41​ feeds all three rails from one PCB slot. Compare to a generic 24 V SMPS + separate 5 V DC-DC + separate ±15 V DC-DC: three boxes, three heat sources, three failure points. The NPOW-41​ collapses that to one, saving rack U-space and crib SKU count.Global-Range AC Input & High Efficiency.​ The 85–264 V AC auto-range means the same NPOW-41​ BOM line works in North America (120 V), Europe (230 V), Asia (200–240 V), and even sites with weak-grid 100 V or overvoltage 264 V — no voltage selector, no BOM branch. Power factor ≥0.95, efficiency ≥94 % at full load, which matters in a DCS room with 20–40 PSUs humming — the difference between 90 % and 94 % on 120 W × 30 units = ~1.4 kW less heat dumped into the A/C, which a plant engineer notices on the summer peak. Ripple ≤120 mVpp on the 24 V rail keeps analog I/O happy — a noisy 24 V rail shows up as jitter on a 4–20 mA input card’s LSB, which manifests as a “wandering PV” on the operator’s trend that nobody can explain until someone scopes the PSU.Redundancy-Ready Parallel Operation.​ ABB’s Infi 90 reference design specifies two NPOW-41​ units per I/O station, strapped in parallel via the rack’s OR-ing diode / load-share arrangement (depending on rack revision). If one NPOW-41​ trips (OCP from a shorted I/O card, OTP from a clogged cabinet filter), the other picks up the full load seamlessly — the I/O station stays alive, the DCS doesn’t drop the process unit, and the faulted unit’s FAULT LED latches red so the weekend electrician knows whichof the two to swap. This “2N PSU per I/O station” architecture is why Infi 90 plants can run 18-month campaigns without a DCS-power incident, and the NPOW-41​ is the enabler. The fault-self-lock is a small but critical detail: without it, a cycled-fault PSU that auto-recovers would leave the tech guessing which of the pair tripped — with latch, the red LED stays until manually reset (or power-cycled), so the root-cause card (the one drawing the overload) is identifiable.Comprehensive Protection & Fault Self-Lock.​ The NPOW-41​ protects itself and the downstream I/O: OVP clamps an internal-regulator runaway before it fries the 5 V logic on an NPCT card; OCP folds back on a shorted I/O card (e.g., a 4–20 mA loop that got pinched to 24 V) instead of popping a fuse buried inside the PSU; SCP does the same for a dead-short; OTP trips if the DCS room A/C fails and ambient climbs past ~60–65 °C. Reverse-polarity on the DC outputs (rare, but a panel rewire can cross 24 V +/–) is also protected. All of these drive the FAULT LED and the self-lock. The “protect the I/O, not just the PSU” philosophy is what makes the NPOW-41​ a DCS-grade part vs. a commodity SMPS — a $40 generic 24 V 5 A brick might have OCP/SCP, but it won’t have the three-rail coordination, the redundancy OR-ing awareness, or the fault-latch that a DCS room expects.
