Product Overview

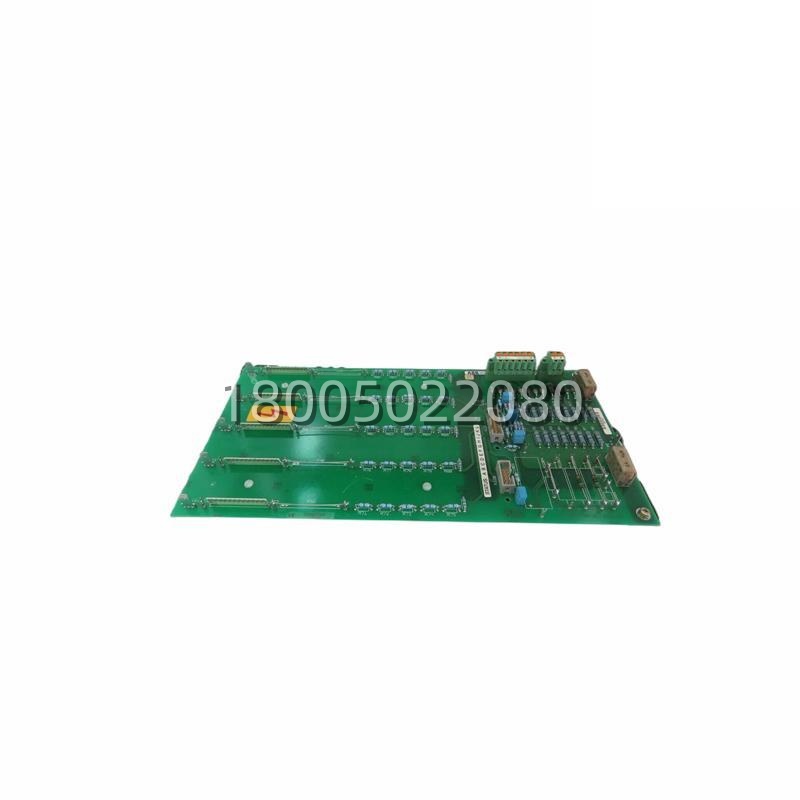

The ABB 3BHB00652R0001 is a versatile industrial control and output/drive module engineered by ABB for demanding automation applications within the System 800xA and AC800M DCS platforms. This module serves as a critical signal conditioning and amplification interface between the DCS/PLC logic outputs and the high-power field devices, translating low-level digital commands into robust drive signals capable of controlling contactor coils, excitation windings, and intermediate relays. The ABB 3BHB00652R0001 is closely associated with the KUC720AE drive control unit family, indicating its role in drive cabinet integration and motor control applications.

Designed with comprehensive galvanic isolation and EMC filtering conforming to IEC 61000 standards, the ABB 3BHB00652R0001 ensures reliable operation even in electrically noisy industrial environments. The module handles up to 5A of continuous current with a maximum load capacity of 650 VA, making it suitable for driving a wide range of inductive and resistive loads. The ABB 3BHB00652R0001 is equipped with multiple communication interfaces, including RS-485 and support for Modbus RTU, enabling seamless integration into existing automation networks. As a discontinued product now available through aftermarket channels, the ABB 3BHB00652R0001 remains a critical spare for legacy ABB installations.

Technical Specifications
