Product Overview

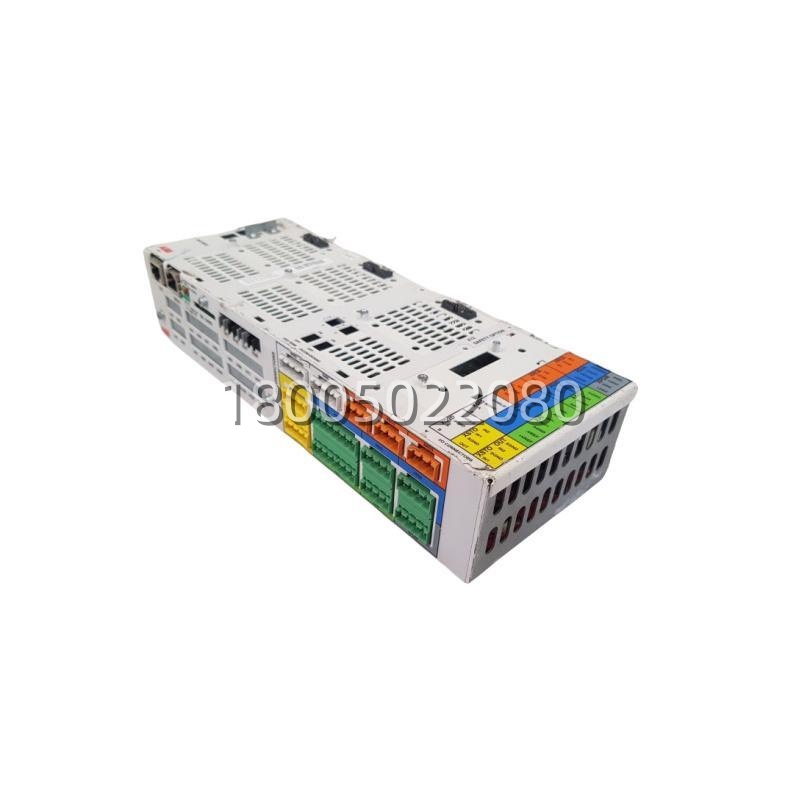

The ABB 3AUA0000110429-K, also designated as the BCU-02 Basic Control Unit, is a high-performance inverter and drive control board engineered as the intelligent core of ABB’s advanced ACS880 low-voltage variable frequency drive platform . This control board serves as the primary processing node within the ACS880 drive system, executing complex motor control algorithms, managing I/O and communication tasks, and interfacing with power modules via high-speed DDCS fiber optic links . Unlike conventional PLC modules, the ABB 3AUA0000110429-K is purpose-built to handle the demanding computational and real-time requirements of industrial motor control, making it an essential component for ACS880 single-drive and multi-drive cabinet installations .

The ABB 3AUA0000110429-K is built around a powerful 32-bit floating-point DSP, which enables the execution of ABB’s proprietary Direct Torque Control (DTC) algorithm with exceptional precision . This algorithm delivers superior motor performance, achieving rapid torque response and accurate speed regulation without requiring an encoder in many applications . The ABB BCU-02 also integrates critical safety functionality, including Safe Torque Off (STO) with SIL3/PL e rating via dual independent channels, complying with the stringent safety requirements of modern industrial machinery . Additionally, the ABB 3AUA0000110429-K provides a comprehensive suite of onboard I/O, including digital, analog, and relay outputs, and supports flexible communication via RS-485 Modbus RTU, DDCS fiber, and optional fieldbus adapters . The board also features a microSDHC card slot for real-time data logging, aiding in fault analysis and predictive maintenance strategies .



Technical Specifications

Parameter Name	Parameter Value
Product Model	3AUA0000110429-K (BCU-02)
Manufacturer	ABB (Switzerland/Finland)
Product Type	Inverter Control Board / Drive Control Unit
Series	ACS880 Drive Accessory – BCU-02 Family
Processor	32-bit Floating-Point DSP
Auxiliary Supply Voltage	24 V DC (19–32 V DC, 1.5–2.9 A)
Communication Interfaces	DDCS Fiber, RS-485 (Modbus RTU), CAN (fw dependent)
Safety Function	STO (Safe Torque Off, SIL3 / PL e, 2 independent channels)
Digital Inputs	6 x 24 V DC programmable (NPN/PNP)
Digital I/O	2 x configurable (DI/DO/frequency input/output)
Analog Inputs	2 x -20–20 mA / -10–10 V differential
Analog Outputs	2 x 0–20 mA
Relay Outputs	2–3 x 250 V AC / 30 V DC, 2 A
Operating Temperature	-10°C to +60°C (-10°C to +55°C typical)
Storage Temperature	-40°C to +70°C
Protection Class	IP20 (cabinet-mounted)
MicroSDHC Card Slot	Supports 4GB–32GB for data logging



Main Features and Advantages

Direct Torque Control with 32-bit DSP: The ABB 3AUA0000110429-K leverages the computational power of its 32-bit floating-point DSP to execute Direct Torque Control (DTC) algorithms . This technology provides ultra-fast torque response and high-accuracy speed control for both induction and permanent magnet motors, often eliminating the need for a feedback encoder and simplifying system design . The ABB BCU-02 ensures precise motor performance across a wide speed range, enhancing process stability and product quality.

Integrated functional safety: The ABB 3AUA0000110429-K comes equipped with Safe Torque Off (STO) as a standard feature, with dual independent channels meeting SIL3 and PL e safety integrity levels . This integrated safety functionality allows the ABB 3AUA0000110429-K to be deployed in machinery requiring category 0 or 1 stops without the need for external safety contactors, reducing cabinet space, wiring complexity, and overall system cost. The STO feature is accessible via dedicated terminals on the ABB BCU-02, simplifying integration into safety circuits .

Rugged onboard I/O and flexible connectivity: The ABB 3AUA0000110429-K provides a rich set of onboard I/O, including six digital inputs, two configurable digital I/Os, two analog inputs, and two relay outputs, minimizing the need for expansion modules in many applications . The board supports RS-485 Modbus RTU communication for seamless integration with PLC, DCS, and SCADA systems, and includes DDCS fiber interfaces for high-speed, interference-resistant communication with power modules . Optional fieldbus adapters, such as PROFIBUS and PROFINET, further extend the connectivity of the ABB 3AUA0000110429-K .

Intelligent data logging and parameter recovery: The ABB 3AUA0000110429-K features a microSDHC card slot, enabling continuous real-time data logging of critical drive parameters . This data can be analyzed by ABB service personnel for in-depth fault diagnosis and performance optimization. Additionally, the ABB BCU-02 is designed with a parameter backup function; upon replacement, the new board can automatically restore configuration data from the power unit, significantly reducing downtime and re-commissioning effort in critical applications .
