Product Overview

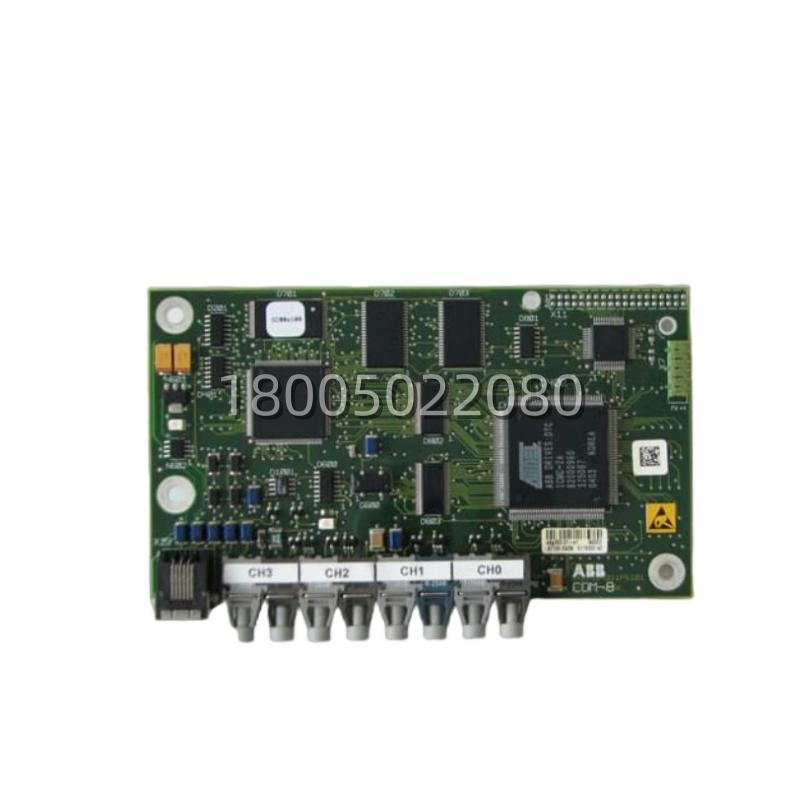

The ABB 3ADT220166R0002, commonly known by its assembly code SDCS-CON-H01, is a high-performance electronic control unit designed as the central processing and interface hub for ABB’s DCS880 DC converter and DCT880 thyristor power controller series . This electronic tray functions as the “brain” of the drive system, executing real-time closed-loop control algorithms for motor speed, torque, and current regulation, while simultaneously processing feedback signals from encoders, tachometers, and field devices . The ABB 3ADT220166R0002 is installed across the full range of DCS880 sizes H1 through H8, serving as the primary control interface that bridges the low-voltage control logic with the high-power thyristor or IGBT switching stages .

Engineered for demanding industrial environments, the ABB 3ADT220166R0002 integrates an industrial-grade microprocessor with onboard memory for firmware execution and parameter storage . The board offers extensive I/O capabilities, including 16 optically isolated digital inputs, 16 transistor digital outputs, and multiple analog channels configurable for ±10V or 4-20mA signals . Communication is supported through built-in Ethernet and RS-485 interfaces with Modbus TCP/RTU protocols, with optional fieldbus adapters available for Profibus, Profinet, and DeviceNet integration . The ABB SDCS-CON-H01 is a field-replaceable unit designed for straightforward exchange, with both the 3ADT220166R0002 and its variant 3ADT220166R0012 being interchangeable depending on firmware requirements .



Technical Specifications

Parameter Name	Value
Product Model	3ADT220166R0002
Assembly Code	SDCS-CON-H01
Manufacturer	ABB
Product Type	Electronic Control Unit / Electronic Tray
Primary Compatibility	DCS880 DC Converters, DCT880 Thyristor Power Controllers
Supply Voltage	24 VDC (typical; 12-48 VDC range per some sources)
Power Consumption	≤ 5W typical
Digital Inputs	16 channels, optically isolated, 24 VDC
Digital Outputs	16 channels, transistor outputs, optically isolated
Analog Inputs	4 channels (configurable ±10V, 0-20mA, 4-20mA)
Analog Outputs	4 channels (configurable ±10V, 0-20mA, 4-20mA)
Encoder Interface	HTL/TTL encoder support (ABZ three-phase)
Communication Interfaces	Ethernet, RS-485 (Modbus TCP/RTU)
Optional Protocols	Profibus, Profinet, DeviceNet, CANopen (via adapters)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions	Approx. 170mm × 120mm × 30mm
Weight	Approx. 0.5 kg
Certifications	CE, UL, RoHS, IEC 61131-3



Main Features and Advantages

High-Performance Closed-Loop Motor Control: The ABB 3ADT220166R0002 executes sophisticated control algorithms for precision speed, torque, and current regulation of DC motors and heating loads. Its onboard industrial microprocessor processes encoder feedback (HTL/TTL) and analog signals in real-time, enabling dynamic response to load changes . The ABB SDCS-CON-H01 supports advanced control modes including speed control with PI current controllers, field weakening, and torque limitation, making it suitable for demanding applications such as rolling mills, winders, and crane hoists . The control unit’s ability to handle both armature and field circuit regulation ensures comprehensive motor management from a single electronic tray.

Extensive I/O and Flexible Communication: The 3ADT220166R0002 provides rich connectivity options that minimize the need for additional expansion modules. With 16 digital inputs, 16 digital outputs, and 4 analog inputs and outputs each, the ABB 3ADT220166R0002 can interface directly with a wide range of field sensors, actuators, and operator controls . The built-in Ethernet port and RS-485 interface support Modbus TCP and Modbus RTU protocols respectively, enabling straightforward integration with PLCs, SCADA systems, and HMIs . For more specialized network requirements, the ABB SDCS-CON-H01 accepts optional fieldbus adapter modules (FPBA-01 for Profibus, FENA-11 for Ethernet/IP and Profinet, etc.), ensuring compatibility with diverse automation architectures .

Robust Industrial Design and Hot-Swap Support: The ABB 3ADT220166R0002 is built to withstand harsh industrial conditions, with a wide operating temperature range of -20°C to +60°C and conformal coating protection against dust and moisture . The electronic tray is designed for rack or frame mounting within the drive cabinet, with support for hot-swap replacement in certain configurations, minimizing downtime during maintenance . The 3ADT220166R0002 features comprehensive diagnostic capabilities, including status LEDs, fault logging, and self-test routines that help technicians quickly identify and resolve issues . Additionally, the board supports firmware updates via ABB Drive Composer Pro software, allowing system enhancements and bug fixes without hardware replacement .
