Technical Specifications
| Parameter Name | Value |
|---|---|

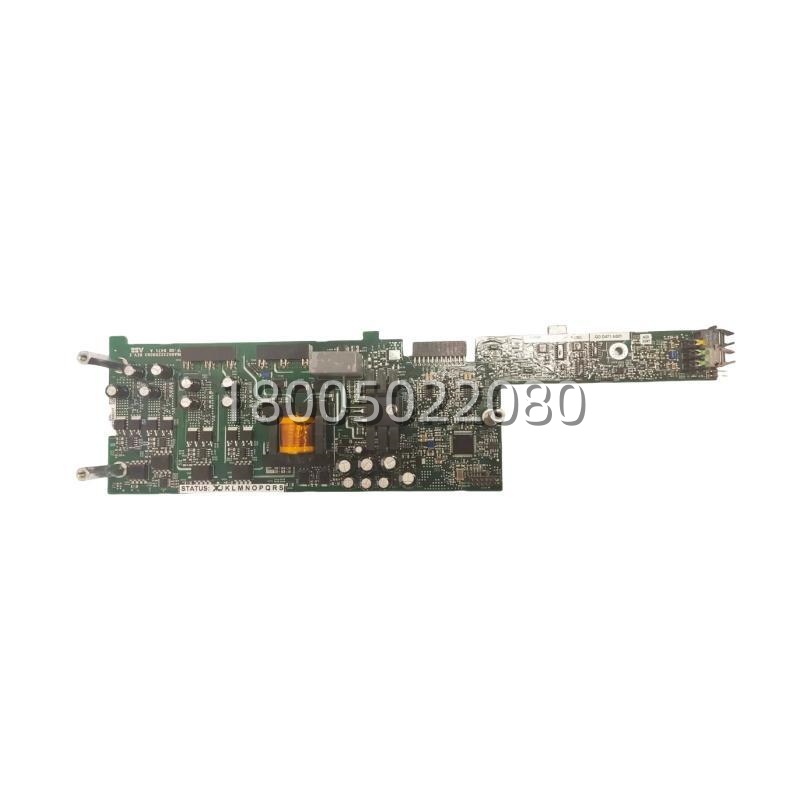

| Product Model | 2UBA002322R0001 |
| Assembly Code | GDD471A001 |
| Manufacturer | ABB |
| Product Type | Power Unit Control Board / IGBT Gate Drive Trigger Board |
| Primary Compatibility | ACS580MV Series, ACS2000 Series High-Voltage Inverters |
| Input Supply Voltage | DC 24V (from power unit internal auxiliary supply) |
| Communication Interface | Fiber Optic (isolated PWM signal reception) |
| Communication Protocol | DDCS (Distributed Drive Control System), PPCS (Power Plate Communication System) |
| Processor Architecture | Embedded low-power processor (Pentium III-M / Celeron class) |
| Onboard Memory | 256 MB (expandable via 144-pin SODIMM slot) |
| Firmware | 2/4M Phoenix Flash BIOS, plug-and-play |
| Drive Output | Multi-channel IGBT gate drive outputs |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Overtemperature, Gate Drive Fault, Fiber Link Break |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Board Coating | Conformal coating (moisture and dust protection) |
| Installation | Power unit internal slot mounting |
Main Features and Advantages
Fiber Optic Signal Reception and High-Speed IGBT Gate Drive: The ABB 2UBA002322R0001 receives firing commands from the main drive controller via a fiber optic link, ensuring complete galvanic isolation and immunity to the severe EMI present in high-voltage power conversion environments . The GDD471A001 then processes these signals and generates the precise, high-current gate drive pulses required to switch the IGBT power modules. This signal chain, managed by the ABB 2UBA002322R0001, ensures that the inverter bridge commutations are executed with the correct timing and voltage levels, minimizing switching losses and maintaining the integrity of the motor voltage waveform.
Comprehensive Real-Time Monitoring and Hardware Protection: A key strength of the ABB 2UBA002322R0001 is its extensive monitoring and protection capabilities. The board continuously samples critical parameters, including DC bus voltage, output current, and power device temperature . It integrates multiple hardware-level protection features—such as overcurrent, overvoltage, undervoltage, overtemperature, gate drive failure, and fiber optic link break detection—all of which trigger an immediate pulse block and unit shutdown to prevent catastrophic device failure . The 2UBA002322R0001 also performs power-on self-tests of the drive, sampling, and communication circuits, locking out the unit if any abnormality is detected before it can be energized .
Independent Fault Handling and Diagnostic Capabilities: The embedded computing architecture of the ABB GDD471A001 enables it to handle unit-level faults locally, such as detecting capacitor degradation or IGBT temperature trends. This allows the 2UBA002322R0001 to execute a local bypass sequence or issue a fault report to the main controller without waiting for a polling cycle . Onboard diagnostic LEDs provide visual status indicators for power, fiber communication, operation, and fault conditions, allowing technicians to quickly pinpoint issues such as fiber
