Product Overview

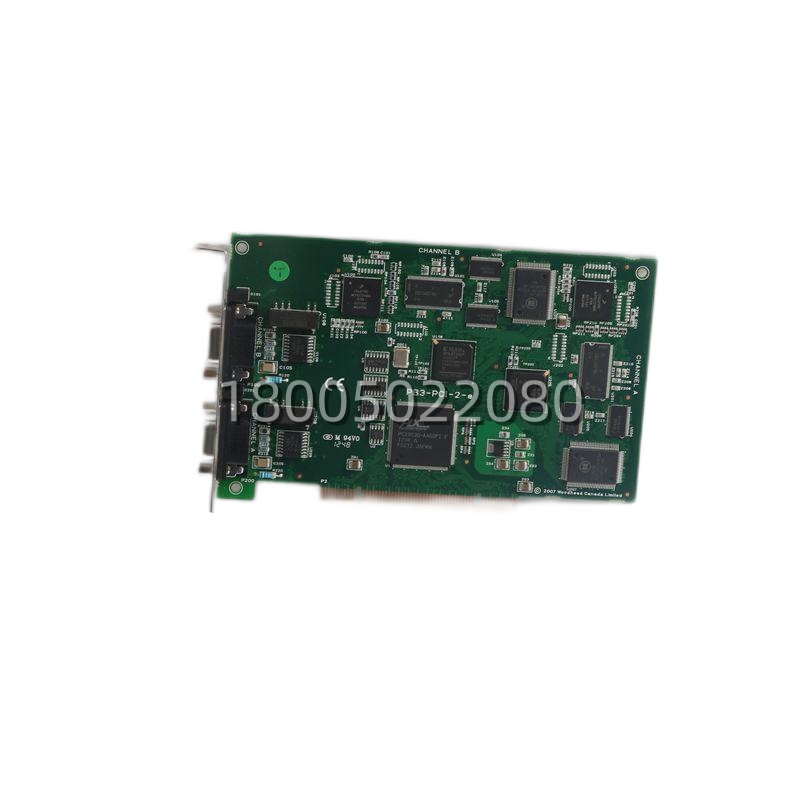

The CTI 901F-2562 Main Control Board is a high-performance central processing unit designed for demanding industrial automation and machinery protection applications. Manufactured by CTI (Communication and Turbine Interface) in collaboration with Bently Nevada, the 901F-2562 serves as the primary controller within the Bently Nevada 3500 series monitoring framework -6. As the “brain” of the 3500 rack system, the CTI 901F-2562 coordinates real-time communication between all monitoring modules, consolidating critical vibration, displacement, and temperature data for transmission to supervisory systems. This CTI series board is a vital component for protecting critical rotating machinery in power generation, oil and gas, and heavy industrial applications.

The 901F-2562 Main Control Board operates as a dedicated communication and turbine interface module, providing essential connectivity between the 3500 monitoring framework and external systems such as Distributed Control Systems (DCS) or Turbine Diagnostic Management (TDM) systems -6. The board integrates three independent serial communication ports supporting RS-232, RS-422, and RS-485 protocols, enabling flexible connectivity to various plant control infrastructures. The CTI 901F-2562 is engineered for high availability, supporting redundant main/standby configurations to ensure continuous monitoring operations even during primary controller failures. Unlike generic programmable logic controllers, the 901F-2562 is purpose-built for the rigorous demands of continuous machinery condition monitoring, with proven Mean Time Between Failures (MTBF) data that field engineers rely upon for critical asset protection -6.



Technical Specifications

Parameter Name	Parameter Value
Product Model	901F-2562
Manufacturer	CTI (Communication and Turbine Interface) / Bently Nevada
Product Type	Main Control Board / Communication and Turbine Interface
System Compatibility	Bently Nevada 3500 Series Monitoring Framework
Communication Ports	3 Independent Serial Ports (RS-232, RS-422, RS-485) -6
Redundancy Support	Yes (Main/Standby Redundant Configuration) -6
Operating Voltage	Powered via 3500 Rack Backplane (+5V, ±12V) -6
Processor Type	32-bit Microprocessor (Typical)
Memory Capacity	256MB RAM / 512MB Flash -2 or 512MB RAM / 512MB Flash -10
Operating Temperature	0°C to 60°C -6 or -20°C to +70°C (Varies by Configuration)
Storage Temperature	-40°C to 85°C -6
Humidity	5% to 95% RH, Non-Condensing -6
Dimensions	150mm x 100mm x 30mm to 175mm x 100mm x 30mm (Varies)
Weight	Approx. 0.5 kg -1
Agency Approvals	CE, UL (Varies by Configuration)
Compatibility	Replaces 901F-2552, 901F-2561 (Verify Firmware and Rack Compatibility) -6



Main Features and Advantages

Integrated 3500 framework communication: The CTI 901F-2562 serves as the data processing and communication hub for the Bently Nevada 3500 monitoring framework. It coordinates real-time data exchange between all 3500/20 monitoring modules installed in the rack, packaging critical vibration, position, and temperature data for stable transmission to external supervisory systems. The 901F-2562 enables pre-emptive maintenance strategies by providing continuous, high-integrity data streams essential for detecting early signs of machinery degradation.

Redundant high-availability architecture: The CTI 901F-2562 supports primary/standby redundant configuration, a critical feature for critical asset monitoring applications -6. This redundancy capability ensures that monitoring operations continue without interruption in the event of a primary controller fault, protecting against unplanned downtime in gas turbine and large compressor applications. Field engineers have reported robust MTBF performance for the 901F-2562, confirming its suitability for mission-critical continuous monitoring.

Versatile communication connectivity: The 901F-2562 integrates three independent serial communication ports supporting RS-232, RS-422, and RS-485 protocols -6. This flexible interface architecture enables the CTI 901F-2562 to connect to a wide range of plant control systems, including DCS platforms, TDM systems, and PLC networks. The board’s firmware has been specifically optimized for industrial network environments, delivering improved communication packet stability compared to earlier generation controllers -6.

Robust industrial-grade reliability: The CTI 901F-2562 is engineered for continuous operation in demanding industrial environments. The board implements watchdog timers and self-diagnostic routines that continuously monitor processor and memory health, enabling graceful failsafe actions when anomalies are detected. The 901F-2562 is designed with protection against electrical noise, voltage transients, and operational stresses common in heavy industrial settings, ensuring consistent performance and long-term reliability -4.
