Application Scenarios

In a Taiyuan mining conveyor control system, the 490NRP25400​ is installed in a remote substation. It receives the MB+ signal via fiber from the central Quantum PLC located 3 km away, regenerates the signal, and provides a local 9-pin D-sub port to connect a Momentum remote I/O rack. This setup eliminates data corruption from the site’s high electromagnetic interference (EMI) and solves the distance limitation of standard copper MB+ cabling.



Parameter

Main Parameters	Value/Description
Manufacturer / Brand​	Schneider Electric​

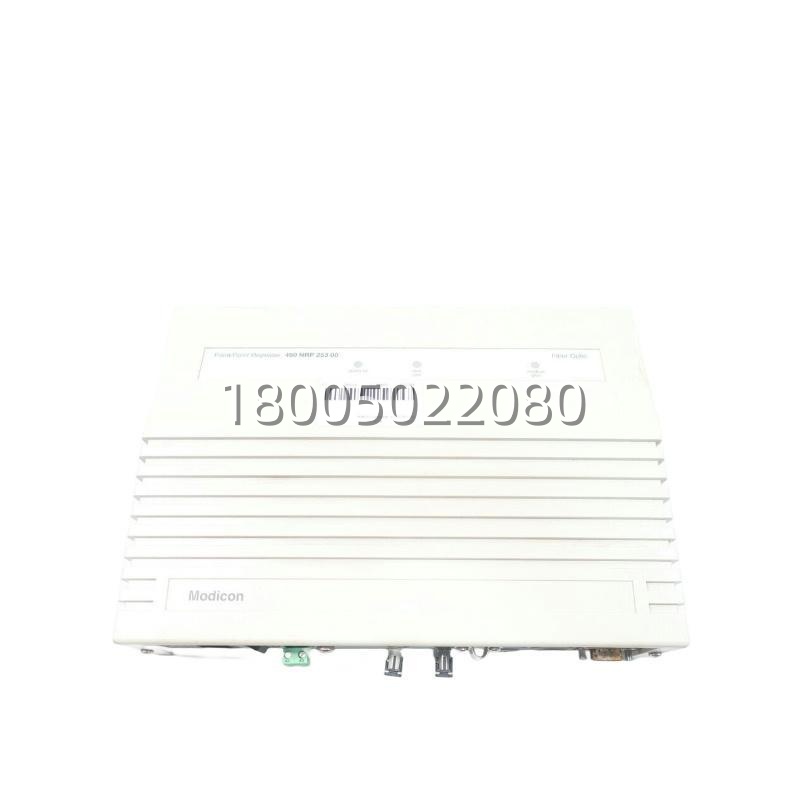

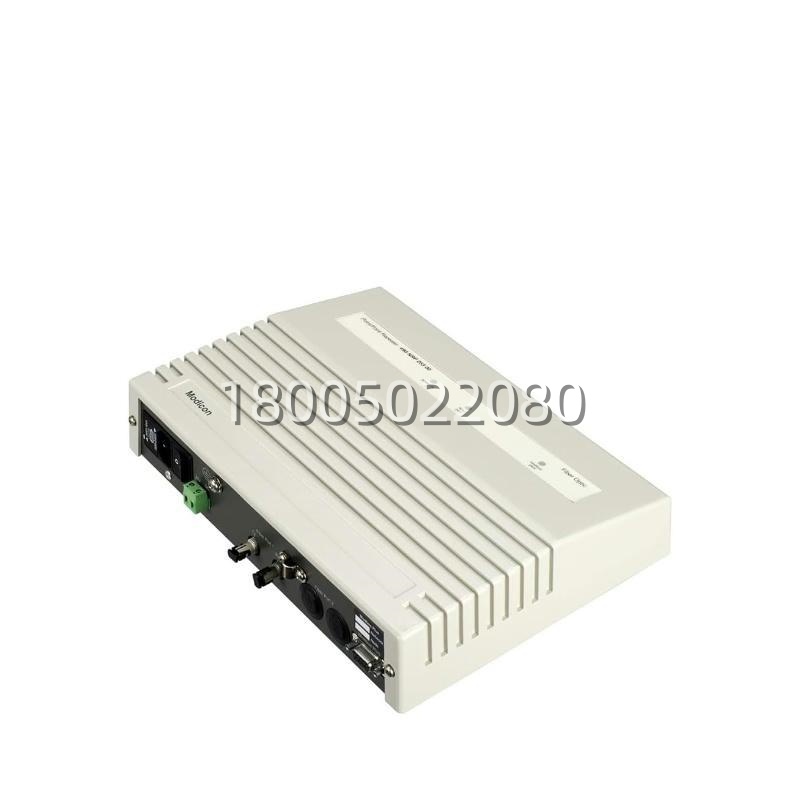

Catalog Number​	490NRP25400​
Product Series​	Modicon Momentum / Quantum Remote I/O
Product Type​	Fiber Optic Line Drop Repeater
Network Protocol​	Modbus Plus (MB+)​
Data Rate​	1 Mbps​ (MB+ standard)
Fiber Interface​	2 x ST/BFOC (typically); Supports Multimode​ (2 km) / Singlemode​ (20 km)
Copper Interface​	9-pin D-sub female (for standard MB+ trunk/drop cable)
Power Supply​	24 V DC​ (typical; wide range 9–36 V DC supported)
Isolation​	Full galvanic isolation via fiber optic link
Operating Temperature​	0 to +60 °C​ (standard industrial)
Mounting​	35 mm DIN rail​
Key Feature​	Line Drop Function​ (acts as repeater + local network tap)





Technical Principles and Innovative Values

• Innovation Point 1: Hybrid Electrical/Optical Topology.​ Unlike simple media converters, the 490NRP25400​ provides a “Line Drop”​ function. It not only extends the network over fiber but also provides a local copper MB+ drop port. This allows engineers to build hybrid networks where the backbone is a noise-immune fiber ring, but local devices (like a programming laptop or a local I/O drop) can connect via the familiar 9-pin copper connector without needing a separate converter.
• Innovation Point 2: Complete EMI/RFI Immunity for Heavy Industry.​ The module leverages the inherent properties of fiber optics to provide full galvanic isolation. In Taiyuan’s heavy industrial settings (mining, steel mills), ground potential differences and welding equipment can destroy copper-based networks. By converting signals to light, the 490NRP25400​ eliminates ground loops, lightning surge risks, and electromagnetic interference, ensuring deterministic data exchange in electrically noisy environments.
• Innovation Point 3: Extending Legacy MB+ Infrastructure.​ The device breathes new life into existing Modicon Momentum​ and Quantum​ systems. It allows plants to overcome the 450-meter limitation of copper MB+​ by enabling multi-kilometer links (up to 20 km with singlemode fiber). This defers the need for a costly full-system migration to Ethernet, protecting investments in legacy remote I/O racks.
