Application Scenarios

In a Taiyuan steel plant’s hydraulic system, the 140DDO35300​ is used to control 32 proportional valve solenoids​ on a rolling mill. The module’s source output logic​ simplifies wiring by providing +24V directly to the valves, with the PLC commanding the return path. The per-group fusing​ ensures that a short circuit on one valve coil only disables its group of 8 outputs, allowing the rest of the mill to continue operating while maintenance addresses the fault, minimizing production downtime.



Parameter

Key Parameter	Specification
Manufacturer / Series​	Schneider Electric / Modicon Quantum

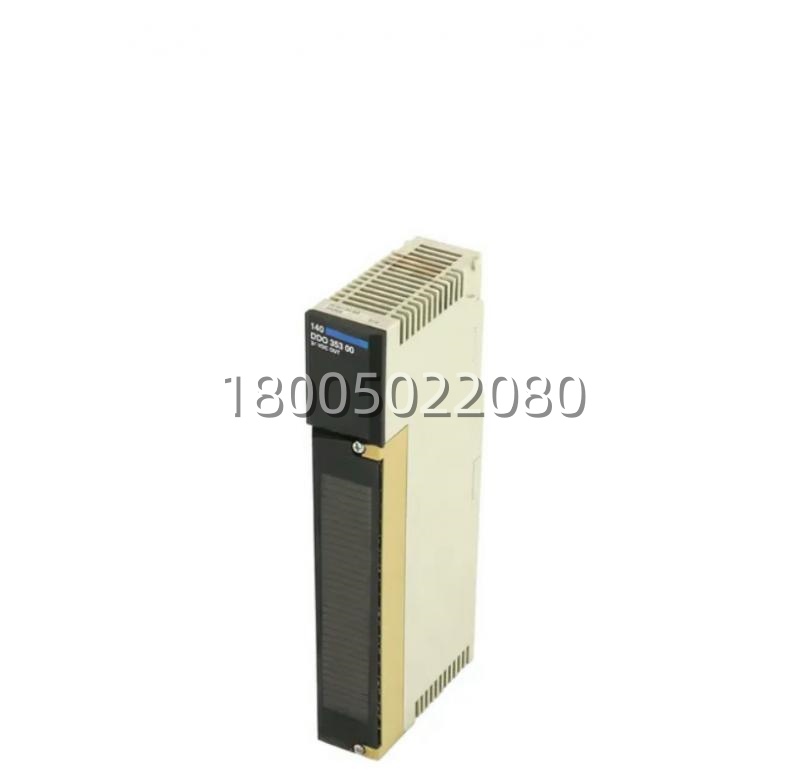

Part Number​	140DDO35300 (140 DDO 353 00)
Number of Channels​	32 channels (organized as 4 groups x 8 channels)
Output Type​	Solid-state transistor, Source (Positive Logic)​
Output Voltage​	24 V DC (operating range 19.2 – 30 V DC)
Current Rating​	0.5 A per point, 4 A per group, 16 A total module
Switching Time​	≤ 1 ms (ON and OFF)
Voltage Drop​	~0.4 V @ 0.5 A
Protection​	Internal 5 A fuse per group (8 channels)
Isolation​	1780 Vrms (channel to bus), 500 Vrms (group to group)
Power Consumption​	1.75 W + (0.4 V × total load current)
Bus Current​	330 mA @ 5V DC (from backplane)
Diagnostics​	32 green channel LEDs, 1 red Fault LED, 1 green Active LED
Operating Temperature​	0°C to +60°C





Technical Principles and Innovative Values

• Innovation Point 1: Group-Fused Source Architecture.​ Unlike modules with a single common fuse, the 140DDO35300 divides its 32 outputs into 4 independently fused groups. This fault containment​ design ensures that a short circuit or overload in one group does not take down the entire module, significantly improving system availability in critical processes.
• Innovation Point 2: High-Noise Immunity with Source Logic.​ The use of source (PNP) output logic​ means the module supplies +24V to the load. This is often preferred in North American and modern global designs as it provides better noise immunity and is easier to interface with 3-wire PNP sensors and devices compared to sink (NPN) logic, reducing wiring errors.
• Innovation Point 3: Enhanced Diagnostics and Hot-Swap.​ The module provides granular diagnostics with a dedicated red LED for group fuse failure or loss of field power. When used in a compatible Quantum hot-standby system, it supports hot-swap replacement, allowing maintenance teams to replace a faulty card without shutting down the entire control rack.



Application Cases and Industry Value

Case Study: Coal Conveyor Control in a Power PlantA coal-fired power plant in Shanxi uses the 140DDO35300​ to control the start/stop and diverter gates​ of its coal conveyor system. The module’s 32-point density​ allows a single slot to control an entire conveyor section, saving panel space. The fast 1ms response​ ensures precise timing for gate sequencing, while the solid-state design​ provides millions of operations without the contact wear associated with relay outputs, reducing maintenance costs in the dusty coal handling environment.
