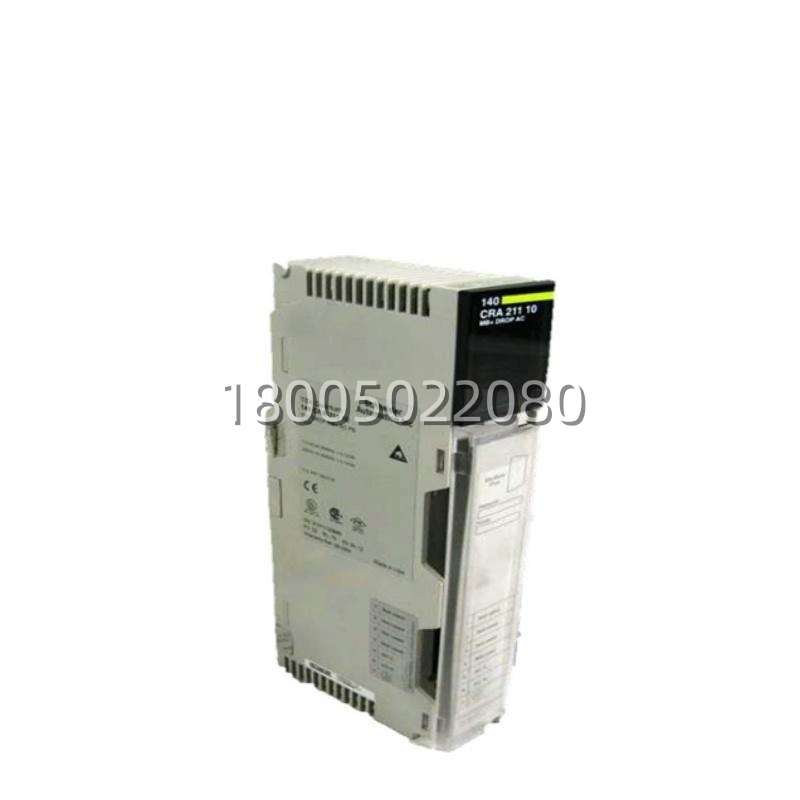

Application Scenarios:In a large water treatment plant, the central Quantum PLC in the control room needs to monitor and control dozens of remote pump stations and valve manifolds spread over a wide area. Running individual cables for each sensor and actuator back to the main PLC is costly and complex. By deploying the 140CRA21110 in a remote cabinet at each station, the system creates a distributed I/O network. The module connects the local rack of I/O cards (e.g., 140DDI, 140DDO) to the Modbus Plus backbone. This setup drastically reduces field wiring, allows for local processing, and enables the central SCADA system to see all remote I/O points as if they were local to the main rack.
Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | 140CRA21110 |
| Manufacturer | Schneider Electric |
| Product Series | Modicon Quantum |
| Module Type | DIO Drop Interface (Remote I/O Adapter) |
| Network Protocol | Modbus Plus (MB+) |
| Number of Ports | 1 Single Port (Sub-D 9-pin female) |
| Rated Supply Voltage | 115/230V AC (Auto-ranging) |
| Supply Voltage Range | 85 – 276V AC |
| Supply Frequency | 47 – 63 Hz |
| Output Voltage | 5.1V DC (Internal Logic) |
| I/O Word Capacity | 30 Input Words / 32 Output Words |
| Communication Speed | Up to 1 Mbps (Modbus Plus) |
| Diagnostics | Startup & Runtime RAM/Checksum Diagnostics |
| Operating Temperature | 0°C to +60°C |
| Compatible Backplanes | 140XBP Series (2, 3, 4, 6, 10, 16-slot) |
| Connection Type | 7-pole Terminal Block (Power) |
Technical Principles and Innovative Values:
- Innovation Point 1: Distributed I/O Architecture Enabler. The core innovation of the 140CRA21110 is its ability to transform a centralized Modicon Quantum system into a distributed control architecture. By placing these modules in remote cabinets, it eliminates the need for thousands of feet of individual sensor wires running back to the main PLC, significantly reducing installation cost, complexity, and potential points of failure. It allows the CPU to communicate with remote I/O racks over a single twisted-pair Modbus Plus network.
- Innovation Point 2: Wide-Range AC Power Supply with Integrated Regulation. Unlike many logic modules that require a separate DC power supply, the 140CRA21110 features a built-in, wide-range AC power input (85-276V AC). This integrated design simplifies cabinet layout by eliminating the need for an external 24V DC power supply at the remote drop, providing both the communication logic and backplane power directly from standard AC mains.
