Application Scenarios
In a Taiyuan-based steel plant’s water treatment facility, the 140ACI03000 is deployed to monitor critical process variables. It collects signals from pressure transmitters on filter banks (4-20 mA) and flow meters (1-5 V) in the recirculation lines. The module’s differential input design effectively rejects electrical noise from nearby high-power motor drives, ensuring stable readings for the control system to regulate pump speeds and valve positions automatically.

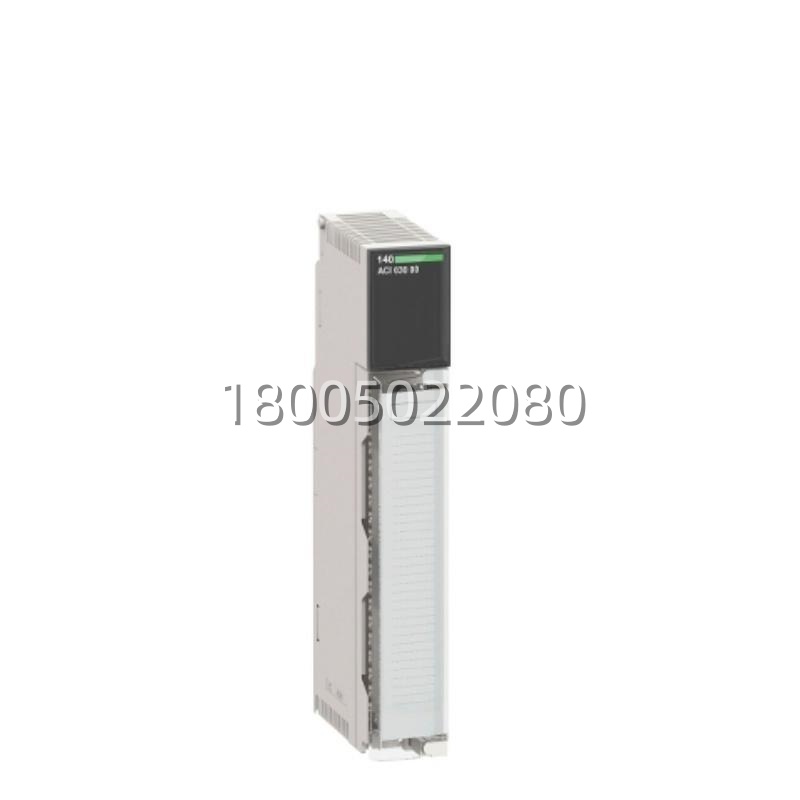

Parameter
| Key Parameter | Specification |
|---|---|
| Manufacturer / Series | Schneider Electric / Modicon Quantum |
| Part Number | 140ACI03000 (140 ACI 030 00) |
| Number of Channels | 8 channels, differential input |
| Supported Signals | 4-20 mA DC (2-wire/4-wire), 1-5 V DC |
| Resolution | 12-bit |
| Accuracy | ±0.05% to ±0.1% of full scale (typical) |
| Update Time | 5 ms (all channels) |
| Input Impedance | 250 Ω (current), >20 MΩ (voltage) |
| Isolation | 1000 V DC (channel to bus), 30 V DC (channel to channel) |
| Diagnostics | Wire break detection (4-20 mA), Under-voltage detection (1-5 V) |
| Power Supply | 5 V DC from Quantum backplane (240 mA typical) |
| Operating Temperature | 0°C to +60°C |
Technical Principles and Innovative Values
- Innovation Point 1: Differential Input Architecture. Unlike single-ended modules, the 140ACI03000 uses differential inputs that measure the voltage difference between the (+) and (-) terminals. This design inherently rejects common-mode noise, which is critical in electrically noisy industrial environments like steel mills where variable frequency drives (VFDs) can induce significant interference on signal cables.
- Innovation Point 2: Integrated Diagnostic Capabilities. The module provides real-time channel-level diagnostics. In current mode (4-20 mA), it can detect a broken wire (open circuit) by monitoring for a significant drop in input signal, triggering a red LED fault indicator on the front panel. This allows maintenance teams to quickly pinpoint and resolve field wiring issues without extensive troubleshooting.
- Innovation Point 3: Hot-Swap Capability. As part of the Quantum platform, this module supports hot-swapping when used in a compatible redundant or hot-standby system. This allows a faulty module to be replaced without powering down the entire control rack, significantly reducing system downtime during critical production operations.
