Application Scenarios

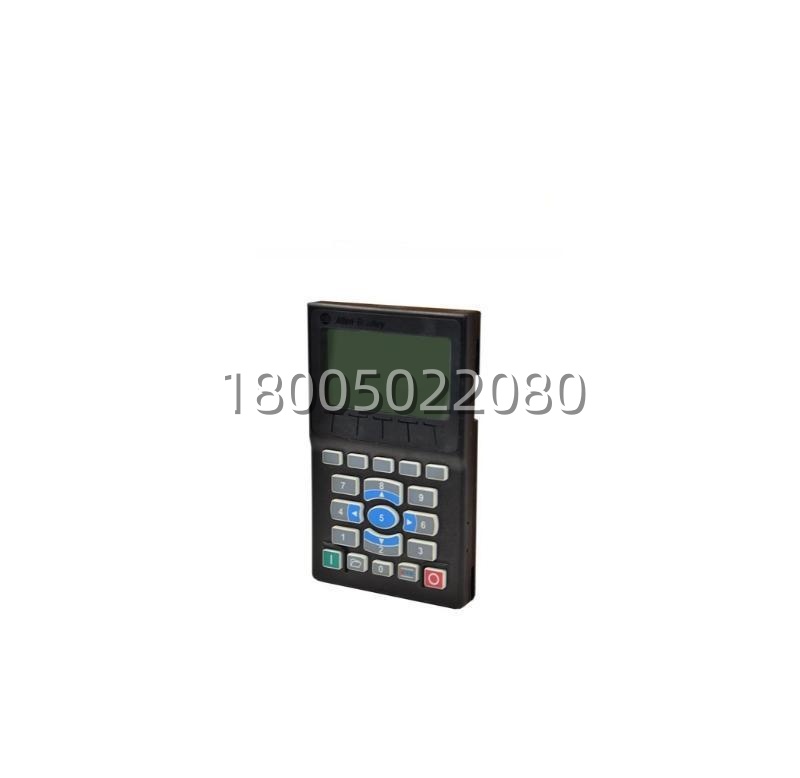

In a Taiyuan water treatment plant’s pump station, the 20‑HIM‑A6 is plugged into the front of a PowerFlex 753 drive. During maintenance mode, operators use its keypad to manually start the pump at low speed for system flushing, monitor the output current for overload signs, and quickly view the fault history if a “Overcurrent” alarm trips the drive.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Manufacturer / Brand | Rockwell Automation / Allen‑Bradley |
| Catalog Number | 20‑HIM‑A6 |
| Product Type | Human Interface Module (HIM) |
| Display | Monochrome LCD, 6 lines × 20 characters |
| Keypad | Full numeric keypad + navigation keys + dynamic soft keys |
| Communication Protocol | Drive Peripheral Interface (DPI) |
| Data Rate | 125 kbps or 500 kbps |
| Power Supply | 12 V DC (supplied by host drive, ~140 mA) |
| Enclosure Rating | NEMA Type 1 (IP20, indoor use) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Compatible Drive Series | PowerFlex 70, 700, 700S, 700L, 753, 755, 750-Series |
Technical Principles and Innovative Values
- Innovation Point 1: Dynamic Soft Key Context Awareness. Unlike fixed-function buttons, the 20‑HIM‑A6 features dynamic soft keys (keys whose labels change based on the screen). This allows a compact panel to navigate complex multi-level parameter trees of PowerFlex drives without a dedicated button for each function, significantly reducing operator training time.
- Innovation Point 2: “Hot‑Plug” Handheld Flexibility. The module supports hot-plugging (with drive powered). It can be permanently installed in the drive’s front bezel (Port 1) or connected via a cable (e.g., 20‑HIM‑H10) to Port 2 for use as a handheld programmer. Maintenance staff in Taiyuan’s distributed equipment rooms can carry one 20‑HIM‑A6 to service multiple drives without needing a laptop.
- Innovation Point 3: Multi‑Language Fault Diagnostics. The module stores drive fault queues and supports multiple languages (English, European, Asian). When a drive faults, it displays not just a code (e.g., F006) but a descriptive message (e.g., “Overvoltage”), enabling non-specialist operators to perform first-line troubleshooting.
Application Cases and Industry Value
Case 1: PowerFlex 755 Retrofit in Shanxi Conveyor System. A legacy conveyor drive’s original HIM failed, leaving operators unable to adjust acceleration ramps. Installing the 20‑HIM‑A6 restored local access to parameters 40-49 (Speed References) and 140-149 (Accel/Decel Times), allowing on-site tuning to resolve material spillage issues without waiting for a PLC programmer.Case 2: PowerFlex 753 Bypass Control. In a critical fan drive with an automatic bypass cabinet, the 20‑HIM‑A6 was configured to display “Process Display” screens showing fan speed and motor current. During network (EtherNet/IP) outages, operators used the HIM to switch control to “Local” mode and maintain basic ventilation operation, ensuring production continuity.
