Application Scenarios

At an industrial automation trade show, ABB uses the ZCU-12 Heavy Demo Unit​ to showcase advanced multi-axis synchronization. The demo cabinet contains an ACS880 drive with an embedded ZCU-12 card, controlling multiple servo axes. An instructor uses the built-in touchscreen (HMI) to start a pre-programmed sequence: the axes perform electronic gearing and cam profiling, demonstrating high-speed coordination without mechanical linkages. The demo then simulates a safety event (e.g., triggering a light curtain), showcasing the integrated Safe-Torque-Off (STO)​ function that brings the system to a safe stop, all while displaying real-time data on the HMI.



Parameter

Main Parameters	Value/Description

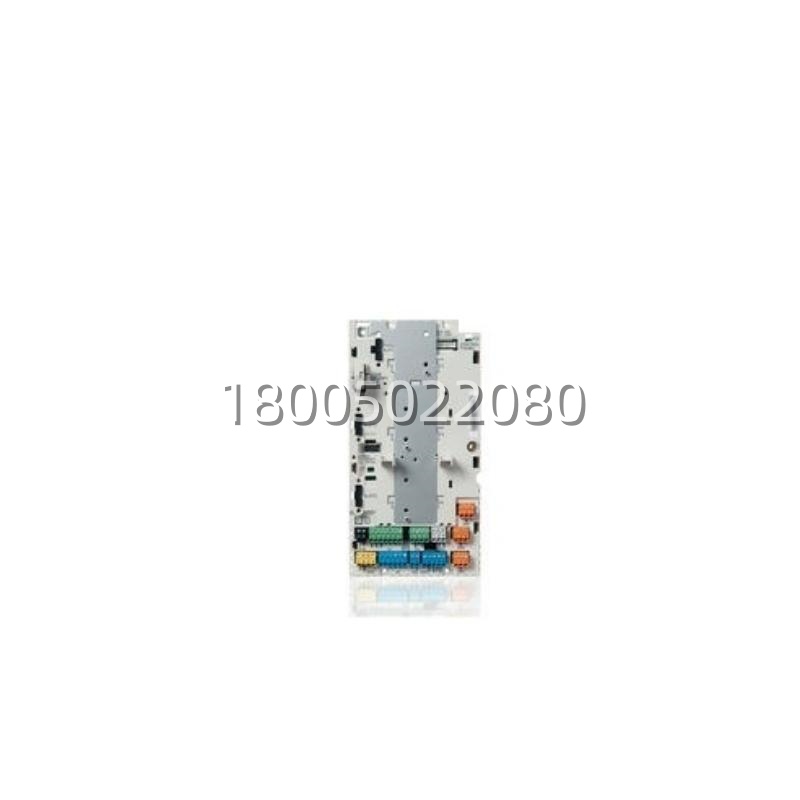

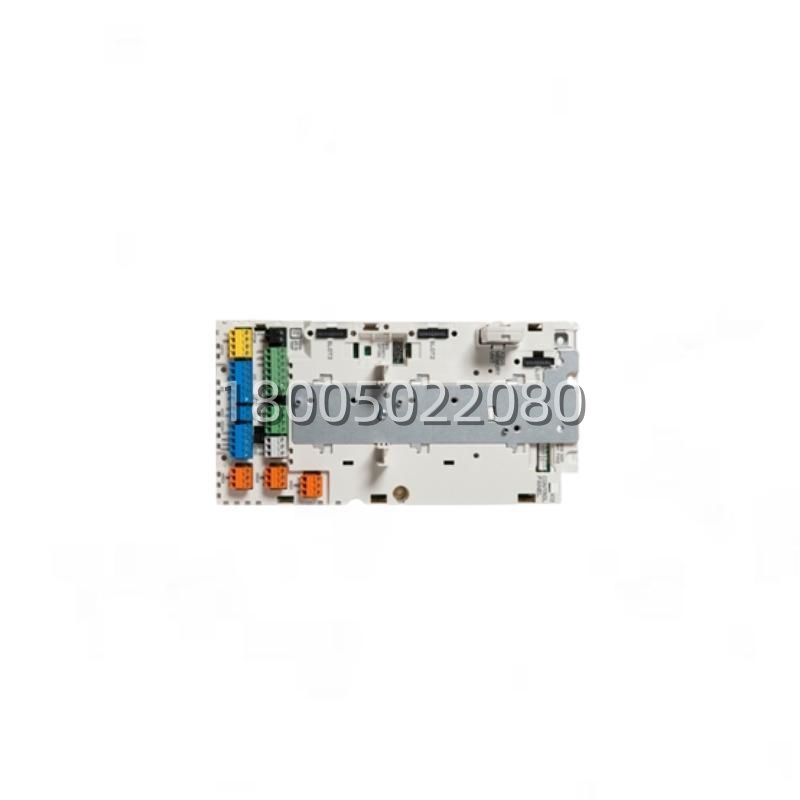

Core Component​	ABB ZCU-12​ Zone Control Unit (Order Code: 3AXD50000005751)
Product Type​	Heavy Demo Unit / Integrated Training Cabinet
Controller​	ZCU-12 (Dual-core ARM + FPGA, EtherCAT Master)
Typical Drive​	ACS880 industrial drive (single or multi-axis)
Motion Control​	16 synchronized axes (theoretical max per ZCU-12), electronic camming, gearing
Safety​	Integrated SIL3/PL(e) safety (STO, SLS, SS1/SS2)
Communication​	EtherCAT, Ethernet/IP, Modbus TCP, Profinet (varies by demo setup)
HMI​	Integrated CP600 touch panel or similar
Power Input​	Typically 400V AC 3-phase (for drive section) + 24V DC (for control)
Weight / Size​	Heavy-duty cabinet (approx. 100-200 kg), often with wheels for mobility





Technical Principles and Innovative Values

• Innovation Point 1: All-in-One Motion Showcase.​ Unlike standalone controllers, this demo unit integrates the ZCU-12’s high-performance motion kernel​ with real power hardware. The ZCU-12 acts as a PCIe/104 mezzanine card​ plugged directly into the ACS880’s control board, demonstrating how a single card can handle complex multi-axis tasks (like robot 7th-axis control) without an external PLC, reducing system footprint and cost.
• Innovation Point 2: Real-World Safety Demonstration.​ The unit is wired to showcase functional safety in action. It includes physical safety devices (e-stop buttons, light curtains) connected to the ZCU-12’s dual-channel safety inputs. This allows trainers to visually demonstrate how Safe-Torque-Off (STO) works at the hardware level, building confidence in ABB’s safety-certified architecture.
• Innovation Point 3: Training-Optimized Design.​ The “Heavy Demo” is built for durability and education. It features clear labeling, test points, and often a transparent cover to show the internal power stack. This design allows trainees to safely practice parameter setting, fault insertion, and troubleshooting on a system that mimics a real production line without the risk of downtime.



Application Cases and Industry Value

Case Study: Technical Training CenterA technical university’s automation lab uses the ZCU-12 Heavy Demo Unit​ to teach advanced motion control. Students connect their laptops via Ethernet to the ZCU-12’s web server interface. They modify cam profiles in the motion library and download them to the controller. The demo unit’s motors instantly execute the new profiles, allowing students to see the impact of their code on physical movement. This hands-on experience with a real industrial-grade controller (ZCU-12) and drive (ACS880) bridges the gap between theory and practice, significantly enhancing learning outcomes for future automation engineers.
