Application Scenarios
In a chemical batch processing plant, precise control of reactor temperature, pressure, and ingredient sequencing is critical for product quality and safety. The control system requires a controller that bridges the gap between a standard PLC and a full-scale DCS. The ABB YT204001-KA (YPQ201) is deployed as the CPU in the Freelance AC 700F rack. It runs the complex regulatory control loops and interlock logic, while its integrated Ethernet port connects directly to the plant’s SCADA system for real-time data monitoring, and its Profibus DP interface connects to remote I/O clusters and smart motor starters. This setup solves the engineer’s pain point of needing DCS-level functionality with PLC-like simplicity and cost-effectiveness, ensuring reliable 24/7 operation in a corrosive environment.
Parameter

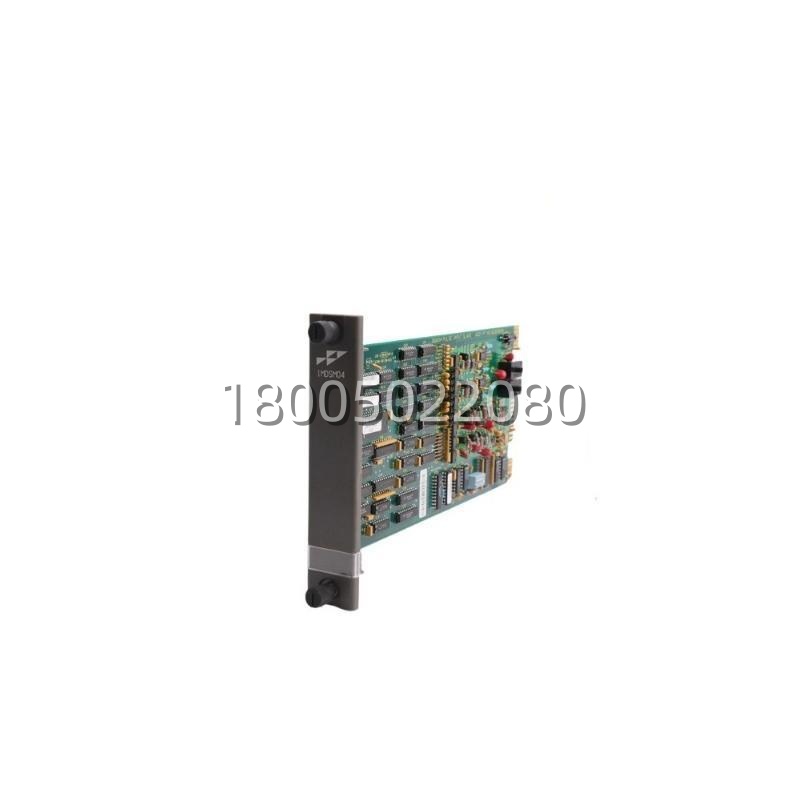

| Main Parameters | Value/Description |
|---|---|
| Product Model | YT204001-KA (also known as YPQ201 9320, 3BSE050091R20) |
| Manufacturer | ABB |
| Product Category | CPU Module / Processor Card |
| Compatible System | ABB Freelance AC 700F (9320 Series Controller) |
| Processor | 32-bit RISC (300 MHz typical) |
| Memory | 8 MB Work Memory, 4 MB Flash |
| Communication Ports | 1x Ethernet (10/100Base-T), 1x Profibus DP (Master), 1x Profibus DP (Slave) or RS-485, 1x CS31 (I/O Bus) |
| Power Supply | 5 V DC (via backplane from base unit) |
| Operating Temperature | 0°C to +60°C (industrial standard) |
| Programming Software | ABB Control Builder F (Freelance 2013 or newer) |
| Ordering Number | 3BSE050091R20 |
Technical Principles and Innovative Values
- Innovation Point 1: Unified Control Architecture: The YT204001-KA is a key component of ABB’s Freelance system, which is designed to eliminate the traditional divide between PLC and DCS worlds. This CPU card can handle both discrete logic (typical of PLCs) and complex analog loop control (typical of DCS) within a single, integrated platform. This architectural innovation reduces system complexity, eliminates the need for gateways between separate PLC and DCS networks, and simplifies engineering and maintenance.
- Innovation Point 2: Integrated Multi-Network Connectivity: Unlike many CPU modules that require separate communication modules for different fieldbus protocols, the YT204001-KA integrates a dual-port Profibus DP interface (capable of operating as Master and Slave simultaneously) and a standard Ethernet interface directly on the CPU card. This “all-in-one” communication capability allows for direct connection to a wide range of field devices and higher-level systems without consuming additional expansion slots, reducing hardware costs and potential points of failure.
- Innovation Point 3: Deterministic Real-Time Performance: The card is engineered for hard real-time industrial control. Its processor and dedicated CS31 bus controller ensure deterministic scan cycles for I/O updates and logic execution. This predictable performance is critical for applications requiring precise timing, such as batch sequencing, motion control, and safety interlocks, ensuring that control actions are always taken within the required time window.
