Application Scenarios

In a bottling plant’s new filling line, the control cabinet design calls for a compact AC500 PLC to handle local valve control and communicate sensor data to the plant’s SCADA system via Ethernet. The engineer selects the ABB TB511-ETH-B1​ as the CPU base. This single unit provides the 24V DC power bus for the CPU and subsequent I/O modules, while its integrated RJ45 port immediately connects the PLC to the factory network without consuming an expansion slot. The onboard RS485 port is used to daisy-chain a local HMI, consolidating power, data, and networking into one streamlined base unit. This setup solves the classic pain points of space constraints, complex wiring, and the cost of additional communication hardware, making the control node both leaner and more powerful.



Parameter

Main Parameters	Value/Description

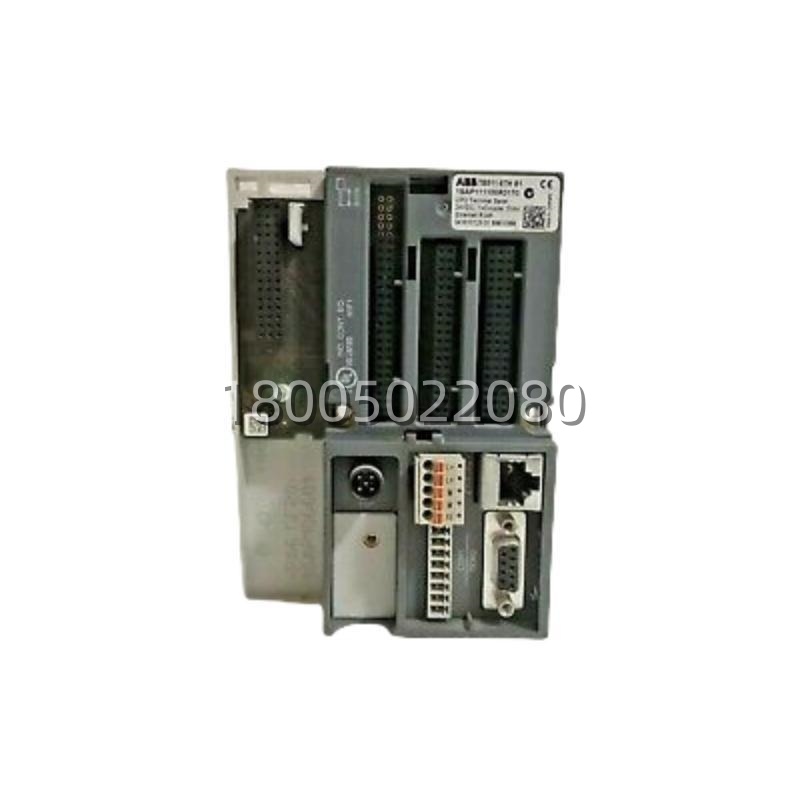

Product Model​	TB511-ETH-B1​ (often listed as TB511-ETH)
Manufacturer​	ABB
Product Category​	PLC CPU Terminal Base / Backplane
Compatible System​	ABB AC500 V2 Series (PM5xx CPUs)
Power Supply​	24 V DC (via removable spring-clamp terminal block)
Communication Interfaces​	1 x Ethernet (RJ45, 10/100 Mbps), 2 x Serial (COM1: RS232/485, COM2: RS232)
Mounting​	DIN Rail (35 mm standard)
Dimensions (W x H x D)​	Approx. 95.5 mm x 135 mm x 28 mm
Weight​	Approx. 0.16 kg
Operating Temperature​	-25°C to +60°C (industrial grade)
Protection Rating​	IP20 (for enclosure mounting)
Ordering Number​	1SAP 111 100 R0270





Technical Principles and Innovative Values

• Innovation Point 1: Integrated Communication Hub Architecture:​ Unlike traditional “dumb” terminal bases that only provide passive wiring, the TB511-ETH-B1​ embeds active communication circuitry directly into the base. This design innovation means that essential connectivity (Ethernet for programming/SCADA, serial for HMIs/legacy devices) is available out-of-the-box. This reduces the total module count, saves a valuable expansion slot for I/O or specialty modules, and lowers the overall system cost and complexity.
• Innovation Point 2: High-Speed Backplane with Robust Power Distribution:​ The base acts as a high-speed data highway between the CPU and any connected I/O modules. Its internal bus design ensures minimal latency for real-time control tasks. Furthermore, its 24V DC power distribution is engineered for low impedance and high current-carrying capacity, providing stable power to the CPU and peripherals even in electrically noisy industrial environments, which is critical for the reliability of the entire PLC station.
• Innovation Point 3: Tool-Less Installation and Serviceability:​ The TB511-ETH-B1​ features a removable terminal block and spring-clamp connectors for both power and serial communications (COM1). This design allows for fast, tool-less wiring during installation and, more importantly, enables easy module replacement without disturbing the entire control cabinet wiring. This drastically reduces mean time to repair (MTTR) during maintenance operations.



Application Cases and Industry Value

Case Study: Water Treatment Plant Distributed I/O Upgrade.​ A municipal water facility upgraded its legacy control system to a distributed AC500 PLC architecture. Remote panels located in humid, non-conditioned pump houses required robust and compact controllers. The ABB TB511-ETH-B1​ was deployed as the standard base across dozens of panels. Its integrated Ethernet allowed seamless integration into the plant’s fiber optic ring network for data collection, while its wide operating temperature range ensured reliability despite seasonal extremes. The plant engineer reported that the pre-integrated ports eliminated on-site configuration errors and reduced cabinet commissioning time by approximately 15% per node, proving the value of an “all-in-one” base design in large-scale distributed infrastructure projects.
