Application Scenarios:
In a 600 MW thermal power plant, the ABB SYN5100A-Z is the core of the Generator Circuit Breaker (GCB) control panel. After the turbine-generator reaches rated speed, the SYN5100A-Z continuously compares the generator terminal voltage (U1) with the grid voltage (U2). It calculates the phase difference and slip frequency, automatically issuing “Raise/Lower” commands to the governor and AVR. Once all parameters (ΔV, Δf, dF/dt) are within the “dead band,” it sends a precise closing command to the GCB with a calculated lead time, achieving a “soft” and safe grid connection with minimal current surge.
Parameter:

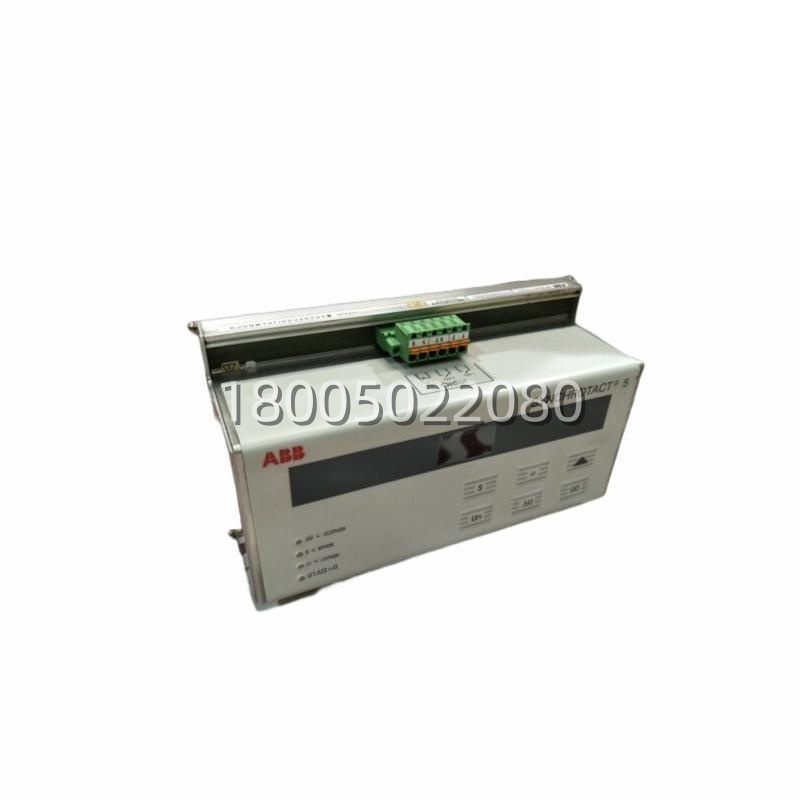

| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB SYN5100A-Z (SYN-5100A-Z) |
| ABB Part Number | 3BHB006717R0221 |
| Manufacturer | ABB (Switzerland) |
| Product Series | Synchrotact 5 |
| Device Type | Digital Automatic Synchronizer / Dual-Channel Relay |
| Input Channels | 2 Independent Channels (Channel A & B) |
| Input Voltage | 100 V AC (typical, via PTs), configurable |
| Input Frequency | 45–65 Hz (50/60 Hz nominal) |
| Measurement Accuracy | Phase Angle: ±0.1°, Voltage: ±0.5%, Freq: ±0.01 Hz |
| Closing Lead Time | Programmable (e.g., 20–100 ms) |
| Output Relays | Close Command, Raise/Lower Speed, Raise/Lower Voltage |
| Communication | RS-485 (Modbus RTU), Profibus DP, Ethernet (options) |
| Power Supply | 24 V DC / 48 V DC / 110 V DC or 110-240 V AC (configurable) |
| Operating Temperature | -10°C to +55°C (standard industrial) |
| Mounting | Panel-mounted or 19-inch rack (1U) |
| Configuration Tool | ABB SynView Software |
Technical Principles and Innovative Values:
The ABB SYN5100A-Z solves the critical challenge of “zero-crossing” synchronization in power systems, offering significant advancements over traditional analog synchroscopes or older relay-based systems.
- Innovation Point 1: Predictive Algorithm with Lead Compensation. Unlike basic relays that react to the current phase, the SYN5100A-Z uses a predictive digital algorithm to calculate the rate of change of the phase difference (slip frequency). It issues the closing command before the zero-crossing point (with a programmable lead time) to account for the mechanical delay of the circuit breaker. This ensures the contacts close exactly when the phase difference is minimal, eliminating the “slap” and resulting torque on the generator shaft that can occur with imprecise timing.
- Innovation Point 2: Dual-Channel Redundancy & Flexibility. The module features two fully independent synchronization channels. This allows it to manage two different synchronization tasks simultaneously (e.g., Gen-to-Grid and Bus-Tie) or operate in a hot-standby redundant configuration for critical generator units. If the primary channel fails, the secondary channel can take over seamlessly, providing a level of availability that single-channel devices cannot match.
- Innovation Point 3: Advanced Slip Frequency Control. The device doesn’t just check static limits; it actively monitors the rate of change of frequency (dF/dt). This “slip” control prevents closing on a rapidly accelerating or decelerating generator, which would cause severe power swings. It provides a “speed matching” output to the turbine governor, creating a closed-loop control system that brings the generator into a stable synchronizing condition.
