Application Scenarios:
In a power plant’s turbine protection system, a Bently Nevada vibration sensor generates a weak, high-frequency pulse train indicating shaft speed. This signal travels through long cables, becoming attenuated and susceptible to EMI. The SNAT633PAC board receives this degraded signal, amplifies it with high gain (e.g., 6-10x), filters out electrical noise, and outputs a robust 0-5V TTL pulse. This clean signal is then read by the DCS (e.g., SNAT609TAI module) to accurately monitor overspeed conditions. If the pulse count exceeds the safe threshold, the system triggers an emergency shutdown, preventing catastrophic turbine failure.
Parameter:
| Main Parameters | Value/Description |
|---|---|

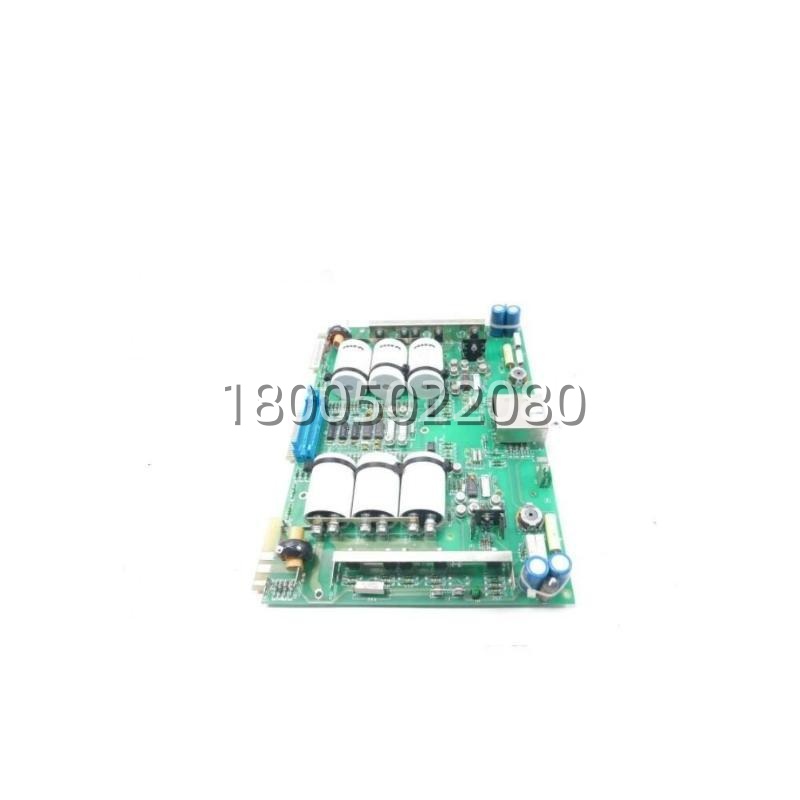

| Product Model | ABB SNAT633PAC (SNAT 633 PAC) |
| Manufacturer Part ID | 61049444 (common assembly code) |
| Product Type | Pulse Amplifier Board (Signal Conditioning) |
| Primary Function | Amplification of low-level pulse signals (e.g., from SMB3H board or sensors) |
| Supply Voltage | 24 V DC (±15%) typical (via backplane or external) |
| Input Signal | Weak pulse (e.g., 0-5V from CT/encoder), Frequency: 1 Hz – 20 kHz |
| Output Signal | Amplified digital pulse (TTL/HTL), up to 18A peak current capability |
| Amplification Gain | Configurable, typically 1:1 to 1:10 |
| Response Time | < 1 ms (ensures real-time signal fidelity) |
| Communication | RS-485 (Modbus RTU) on some variants for configuration |
| Operating Temp. | -20°C to +60°C (industrial grade, some specs: -25°C to +70°C) |
| Mounting | Rack-mounted in ABB DCS/Drive chassis (e.g., Advant OCS) |
| Dimensions | Approx. 120 x 100 x 25 mm (varies by specific assembly) |
Technical Principles and Innovative Values:
The ABB SNAT633PAC is engineered to solve the critical problem of signal degradation in harsh industrial environments, bridging the gap between sensitive field sensors and robust control logic.
- Innovation Point 1: High-Noise Immunity for Critical Signals. Unlike general-purpose amplifiers, this board is specifically designed for pulse signals in electrically noisy environments (e.g., near large motors or VFDs). It incorporates advanced EMI filtering and galvanic isolation to reject common-mode noise, ensuring that critical safety signals (like turbine overspeed) are not lost or corrupted, which is vital for SIL 2-rated safety systems.
- Innovation Point 2: Wide Dynamic Range and Fast Response. The board handles a wide input frequency range (from near-DC to 20 kHz) with a very fast response time (<1 ms). This allows it to accurately track everything from slow-speed machinery to high-speed encoder pulses without introducing phase lag, which is crucial for precise speed and position control in rolling mills or servo systems.
- Innovation Point 3: Integration with ABB’s SIS Ecosystem. The SNAT633PAC is not a standalone unit; it is optimized to work seamlessly within ABB’s safety and control architecture. It typically interfaces with the SMB3H serial measurement board and feeds signals to SNAT609TAI or SNAT0630-5B modules. This plug-and-play compatibility within the rack reduces wiring complexity and ensures signal chain integrity from sensor to controller.
