Application Scenarios
In a steel mill’s main rolling mill drive, the control system (e.g., ABB Advant OCS) calculates the precise firing angle for the thyristor rectifier bridge. The control signal is a weak 5V logic pulse, which is insufficient to trigger the large SCRs that handle thousands of amps. The SNAT630PAC board sits between the control computer and the power bridge. It amplifies the weak pulse, isolates the sensitive control side from the high-voltage power side, and outputs a robust, transformer-isolated gate pulse to reliably fire the SCRs, ensuring smooth DC motor speed control under heavy load.
Parameter
| Main Parameters | Value/Description |
|---|---|

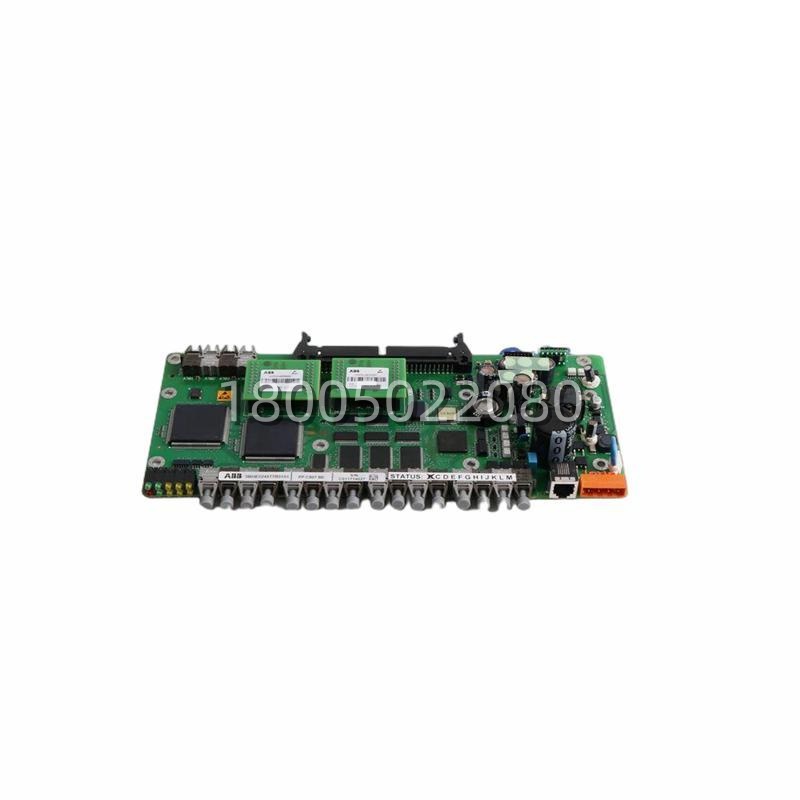

| Product Model | SNAT630PAC (SNAT 630 PAC) |
| Manufacturer | ABB |
| Part Number | SNAT630PAC |
| Product Category | Pulse Amplifier / SCR Driver Board |
| Primary Function | Pulse Signal Amplification & Thyristor Triggering |
| Compatible Systems | ABB Advant OCS, DCS, Large AC/DC Drive Systems |
| Output Type | High-Current Pulse (for SCR Gate Drive) |
| Isolation | High Voltage (via Pulse Transformer) |
| Typical Load | Multi-phase Thyristor Stacks |
| Mounting | PCB mounted in drive cabinet or control rack |
Technical Principles and Innovative Values
- Innovation Point 1: High-Power Pulse Transformation. The board’s core innovation lies in its ability to take a low-energy control signal (e.g., 5V, mA level) and transform it into a high-energy trigger pulse (several amps) with a very fast rise time. This is achieved through a combination of power transistor stages and pulse transformers, which are essential for ensuring that large-area thyristors turn on simultaneously and reliably, preventing “missed firing” events that cause output distortion.
- Innovation Point 2: Robust Electrical Isolation. The SNAT630PAC provides galvanic isolation between the control electronics and the high-voltage power circuit. This isolation barrier protects the expensive control system (e.g., AC450 controller) from voltage transients, ground loops, and noise generated by the switching of the power semiconductors, significantly enhancing system reliability in harsh electrical environments.
- Innovation Point 3: Signal Conditioning for Sensors. In addition to SCR driving, variants of this module are used as pulse amplifiers for instrumentation. They can take weak, noisy pulse signals from flow meters (e.g., turbine flow sensors) or tachometers, clean up the waveform, amplify it to a standard 24V level, and provide a clean digital input to the DCS, ensuring accurate high-speed counting and measurement.
Application Cases and Industry Value
- Case 1: Chemical Plant DC Drive Retrofit. A chemical plant’s aging DC motor drive for a large centrifuge was experiencing erratic speed due to weak trigger pulses failing to fire the SCRs consistently. Replacing the old pulse amplifier with the SNAT630PAC board provided a stronger, more reliable gate drive. This eliminated the speed oscillations, reduced motor heating, and restored precise process control for the sensitive separation process, avoiding costly product batch losses.
- Case 2: Power Plant Excitation System. In a hydroelectric plant’s generator excitation system, the SNAT630PAC boards were used to drive the thyristors in the AVR (Automatic Voltage Regulator). The boards’ high isolation voltage and immunity to electromagnetic interference ensured that the generator’s field current could be controlled with high precision, maintaining grid voltage stability even during sudden load changes.
