Application Scenarios:
In a steel mill’s rolling line, an ABB SNAT 603 CNT board is installed inside an ACS800 drive cabinet controlling a main roll motor. It processes speed references from the DCS via Modbus, reads feedback from the motor encoder, and executes control algorithms to maintain precise RPM under varying load conditions. When a slab enters the rolls, the board’s fast PID loop adjusts the torque output within milliseconds to prevent speed droop, ensuring consistent sheet thickness and preventing production defects.
Parameter:
| Main Parameters | Value/Description |
|---|---|

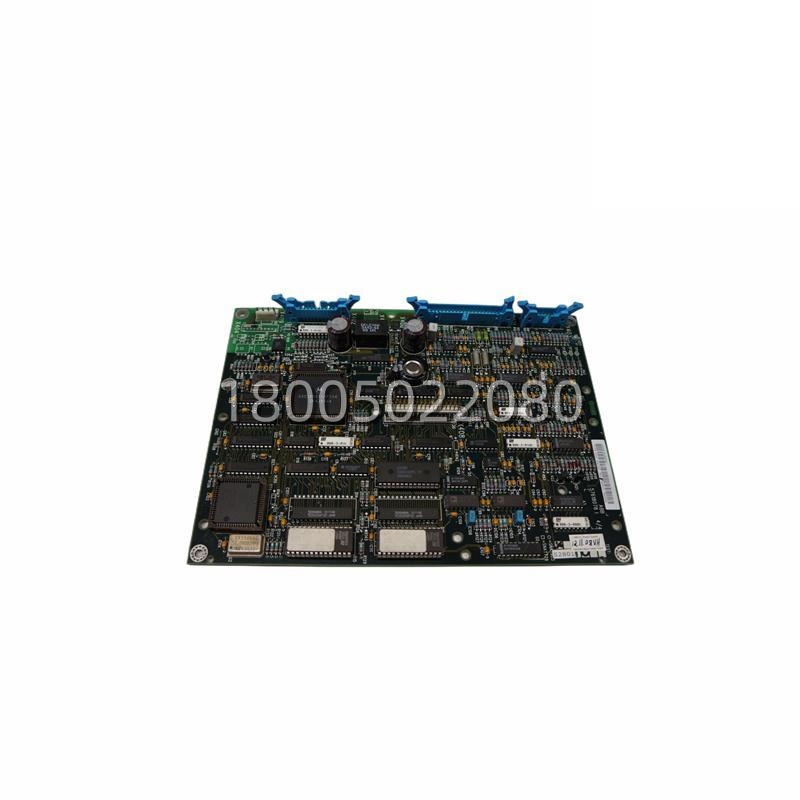

| Product Model | ABB SNAT 603 CNT (SNAT603CNT) |
| Manufacturer | ABB |
| Product Type | PC Board Assembly (Control Module) |
| Typical Part Number | 5761861-2B (common assembly code) |
| Primary Function | Motor Control / Drive Interface / I/O & Communication |
| Supply Voltage | 24 V DC (±10%) typical; some variants support AC |
| Communication | RS-485 (Modbus RTU), CANopen, Profibus DP |
| I/O Capability | 8 Analog Inputs (4-20mA/0-10V), 4 Analog Outputs, 8 Digital I/O (typical config) |
| Processor | 32-bit High-Speed (DSP/ARM) for real-time control |
| Operating Temp. | -10°C to +60°C (standard industrial range) |
| Mounting | DIN Rail or Backplane Slot (inside drive/control cabinet) |
| Dimensions | ~220 x 160 x 45 mm (approximate, varies by assembly) |
Technical Principles and Innovative Values:
The ABB SNAT 603 CNT is engineered for high reliability and precision in harsh industrial settings, moving beyond simple signal passing to intelligent control.
- Innovation Point 1: Unified Control Hub. This board consolidates multiple functions—signal conditioning, protocol conversion, and motion control—onto a single PCB. It integrates analog and digital I/O with multi-protocol communication (Modbus, CAN), eliminating the need for separate signal conditioning modules and reducing cabinet footprint and wiring complexity.
- Innovation Point 2: High-Noise Immunity for Drives. Drive cabinets are electrically noisy environments. The board incorporates robust EMC design, including galvanic isolation and surge protection on communication lines (RS-485). This prevents data corruption and false trips caused by EMI from power electronics, ensuring stable communication with upstream PLCs in environments like mining or heavy machinery.
- Innovation Point 3: Advanced Diagnostic & Hot-Swap Capability. The module features comprehensive self-diagnostics, monitoring internal voltages, temperatures, and communication health. Status LEDs and fault codes allow for rapid troubleshooting. Some variants support hot-swap or easy replacement designs, enabling maintenance crews to replace a faulty board without shutting down the entire production line, drastically reducing Mean Time To Repair (MTTR).
