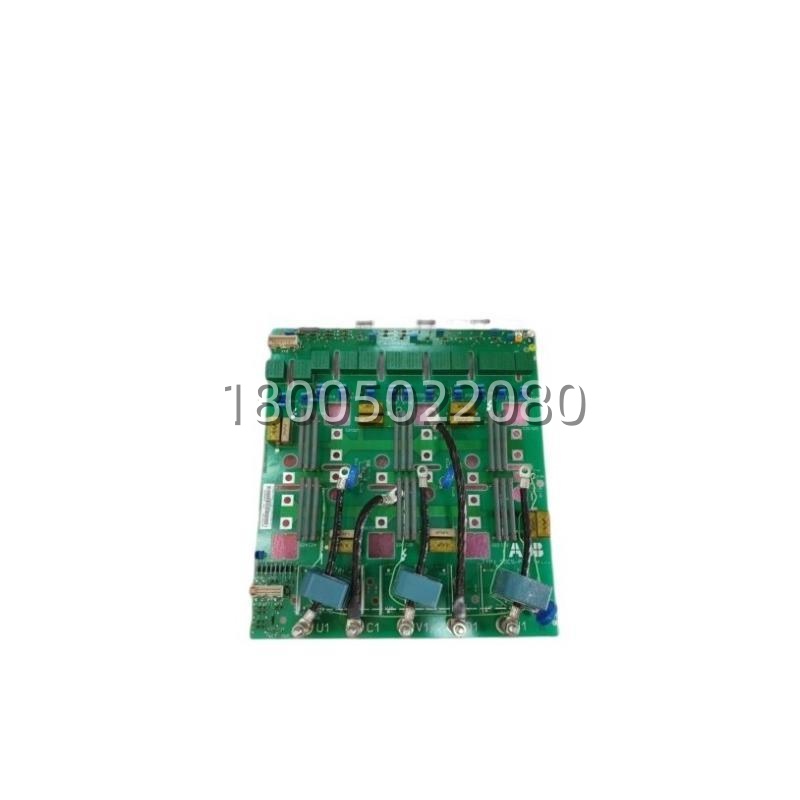

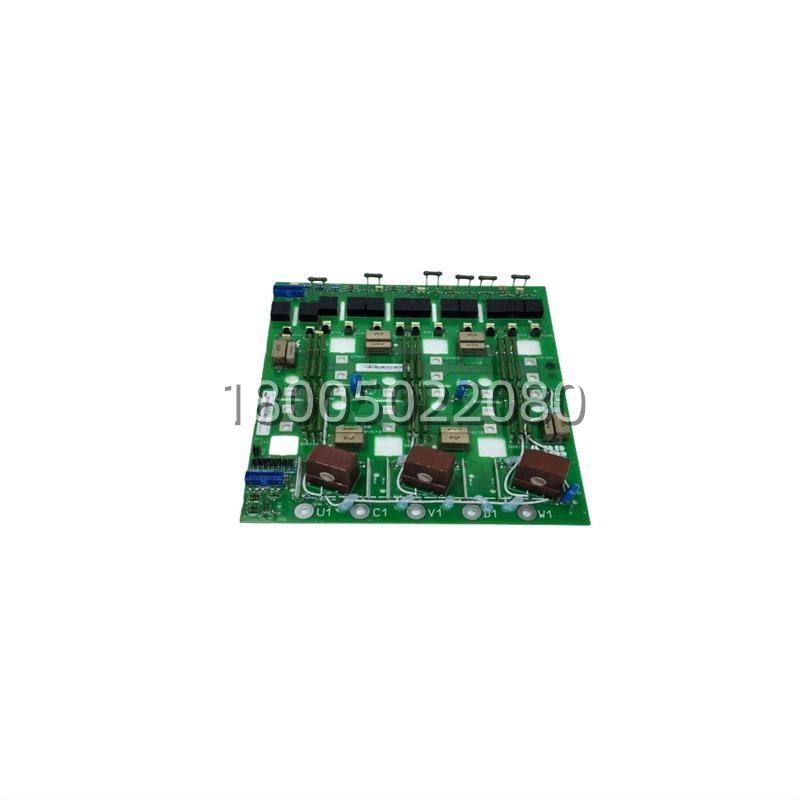

The ABB SDCS-PIN-4 is a critical power and synchronization interface board designed for ABB’s DCS800 series of industrial DC drive systems. It acts as the vital “bridge” between the high-voltage power circuit and the digital control logic, providing synchronization signals for thyristor firing, armature/field voltage monitoring, and isolated power distribution. This module is essential for the precise speed and torque control of large DC motors in heavy industries such as steel rolling mills, mining hoists, and paper machines.
Key Parameters
| Parameter | Specification |
|---|---|
| Model | SDCS-PIN-4 (often P/N: 3ADT314100R1001) |
| Manufacturer | ABB (Industrial Drives) |
| System | DCS800 / DCS600 DC Drive Cabinet |
| Input Voltage | 230V – 1000V AC (Jumper-Selectable, from mains) |
| Control Voltage | 24V DC (Typical for logic supply) |
| Core Function | Pulse Transformer & Synchronization Interface |
| Mounting | Internal Drive Chassis (via DIN Rail/Connectors) |
| Key Interface | Ribbon Cable to SDCS-CON-1/2 Main Control Board |
| Protection | Fused Measurement Circuits, Electrical Isolation |
Technical Features & Value
- Precision Thyristor Firing & Synchronization: The board houses pulse transformers that generate isolated trigger pulses for the thyristor bridges (both armature and field). It accurately locks onto the grid phase (synchronization) to ensure correct commutation timing, which is fundamental for smooth DC motor operation and torque stability.
- High-Voltage Signal Conditioning: It safely steps down high-voltage signals from the main power circuit (armature and field) to low-voltage feedback signals that the microprocessor-based control board (SDCS-CON) can process. This provides the necessary electrical isolation to protect sensitive electronics from power circuit transients.
- Modular & Configurable Design: The board features jumper settings to adapt to different line voltages (typically 230V, 400V, 525V, 690V, or 1000V AC), making it highly versatile for global installations and retrofits without requiring hardware changes.
