Application Scenarios:In a North Sea offshore platform’s emergency shutdown (ESD) system, engineers needed to expand I/O capacity for fire & gas detection and valve control. The existing 32-slot addressing carriers were insufficient. By deploying the GE 8709-CA-08 carriers, which support 64-slot addressing, the system seamlessly integrated additional digital and analog I/O modules without requiring a separate controller node. The carrier’s Class I Div 2/Zone 2 certification and isolated grounding bar ensured safe operation in the hazardous environment, while the Railbus architecture maintained deterministic communication for critical safety logic.
Parameter:
| Main Parameters | Value / Description |
|---|---|

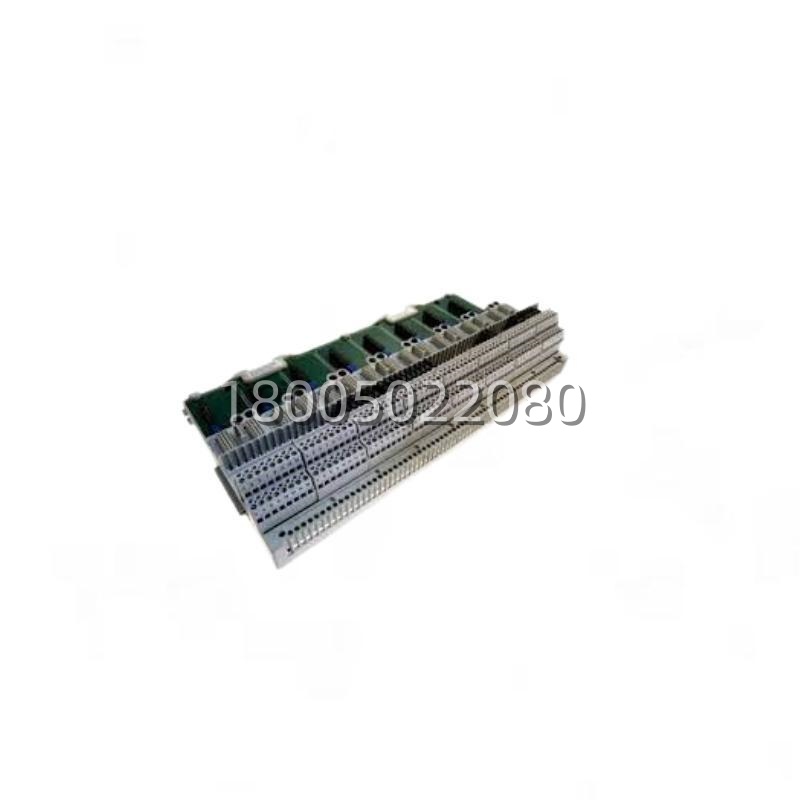

| Product Model | 8709-CA-08 |
| Manufacturer | GE Industrial / MTL (Measurement Technology Ltd) |
| Product Type | 8-Slot I/O Module Carrier (Passive Backplane) |
| Compatible Systems | PAC8000, SafetyNet |
| Addressing Range | 64-slot extended addressing (incompatible with 32-slot systems) |
| Bus Interface | Railbus (for control/data & module addressing) |
| Power Distribution | Bussed Field Power (BFP) via two 8-pin connectors |
| Mounting | DIN Rail (35mm) or Flat Panel |
| Environmental Rating | Class I Div 2 / Zone 2, T6 |
| Operating Temperature | -40°C to +70°C |
| Grounding | Isolated earthing bar for cable screens/shields |
| Dimensions (W×H×D) | 342 × 170 × 22 mm |
| Weight | Approx. 680 g |
| Status |
Technical Principles and Innovative Values:
- Innovation Point 1: Extended 64-Slot Addressing Backbone. Unlike standard 32-slot carriers, the 8709-CA-08 is designed for extended addressing, allowing it to support larger and more complex I/O configurations within a single SafetyNet or PAC8000 node. This eliminates the need for additional expensive controller hardware when expanding system capacity, providing a scalable architecture for growing automation needs.
- Innovation Point 2: Integrated Hazardous Area Protection. The carrier is engineered for Class I Div 2 / Zone 2 hazardous locations. It incorporates an isolated earthing bar specifically for terminating cable screens and shields, which is critical for mitigating electromagnetic interference (EMI) and preventing ground loops in noisy industrial environments. This design ensures signal integrity for sensitive safety and process control signals.
- Innovation Point 3: Bussed Field Power (BFP) Architecture. The carrier features two 8-pin connectors that distribute Bussed Field Power to the I/O modules. This centralized power distribution simplifies wiring, reduces point-to-point connections, and allows modules requiring field power to be paired efficiently, optimizing the layout within control cabinets.
