Application Scenarios:
In a hospital’s emergency power system, multiple diesel generators must start in unison during a blackout and synchronize to share the load without causing grid instability. The 1407-CGCM modules installed on each generator continuously monitor voltage and frequency. Upon receiving a start signal, they regulate the excitation current (via AVR mode) to bring the generators to the correct voltage, then use built-in sync-check logic to close the circuit breakers at the precise zero-crossing moment. If one generator’s frequency begins to drift, the module’s load-sharing function automatically adjusts the fuel rack to maintain balance, ensuring uninterrupted power to critical care units.
Parameter:

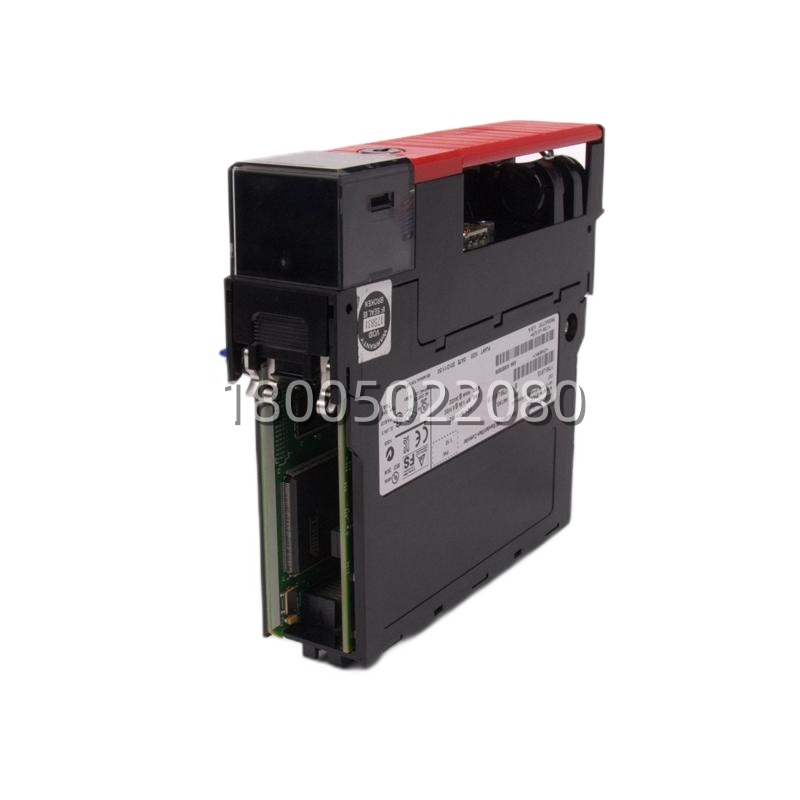

| Parameter Category | Specification Details |
|---|---|
| Manufacturer / Series | Allen-Bradley (Rockwell Automation) / Bulletin 1407 |
| Part Number | 1407-CGCM (also known as CGCM Unit) |
| Control Power | 18 – 32 V DC (Nominal 24V DC) |
| Field Output (Continuous) | 15 A DC (at 32/63/125 V DC selectable) |
| Field Output (10-sec Forcing) | 30 A DC (at 50/100/200 V DC selectable) |
| Voltage Sensing | 57 – 208 V AC (Single or Three-Phase, True RMS) |
| Current Sensing (CT) | 1 A or 5 A (Three-Phase + Cross-Current) |
| Frequency Range | 20 – 90 Hz (Generator); 50/60 Hz (PMG) |
| Communication | ControlNet (Redundant), RS-232 (Redundancy/Config) |
| Control Modes | AVR (Auto Voltage Reg.), FCR (Field Current), PF, VAR |
| Operating Temperature | -20°C to +70°C (Industrial Grade) |
| Mounting | Vertical Chassis Mount (with Heat Sink) |
Technical Principles and Innovative Values:
- Innovation Point 1: True All-in-One Functional Integration. The 1407-CGCM eliminates the need for separate relay panels, sync panels, and standalone AVR cabinets by integrating protection (27/59/40/81), excitation control, synchronization (25), and metering (kW, kVAR, PF) into one compact module. This reduces wiring complexity, cabinet space, and potential failure points. The module’s microprocessor executes complex algorithms for soft-start voltage ramping, V/Hz limiting, and cross-current compensation for reactive load sharing, which are typically handled by discrete devices.
- Innovation Point 2: Seamless ControlLogix Integration via ControlNet. Unlike traditional generator controllers that operate as standalone black boxes, the 1407-CGCM is designed as a network-integrated node within the Rockwell ecosystem. It communicates real-time metering data (32-bit float), status flags, and fault codes directly to a ControlLogix PLC over ControlNet. This allows plant-wide SCADA systems to use native Logix tags for power management logic, eliminating the need for custom protocol converters and providing a unified diagnostic view.
- Innovation Point 3: Robust Redundancy and Hot-Standby Capability. The module features built-in hardware and communication redundancy. Two 1407-CGCM units can be paired with a dedicated RS-232 redundancy link and a common ControlNet network. The standby module continuously tracks the active module’s state (voltage, frequency, setpoints). In the event of a primary module failure, the system automatically transfers control to the backup unit within a single cycle, ensuring zero downtime for critical power generation assets.
