Application Scenarios:
Picture the high-voltage yard of a major industrial plant during a thunderstorm. A lightning strike induces a voltage transient on the grid. The facility’s primary 50 MVA step-down transformer, protected by a set of GE 12BDD15B11A relays, experiences a magnetizing inrush current as the voltage recovers. The harmonic restraint element within the 12BDD15B11A analyzes the current waveform, identifies the high 2nd harmonic content characteristic of inrush (not a fault), and temporarily restrains the trip. Moments later, a true internal fault develops due to weakened insulation. The relay now detects the pure fault current, operates its high-speed element, and trips the associated circuit breakers in under 20 milliseconds, isolating the transformer and preventing a catastrophic failure. This precise discrimination is the relay’s key value: ensuring system stability during transients while delivering uncompromising protection for a multimillion-dollar asset.
Parameter:
| Main Parameter | Value / Description |
|---|---|

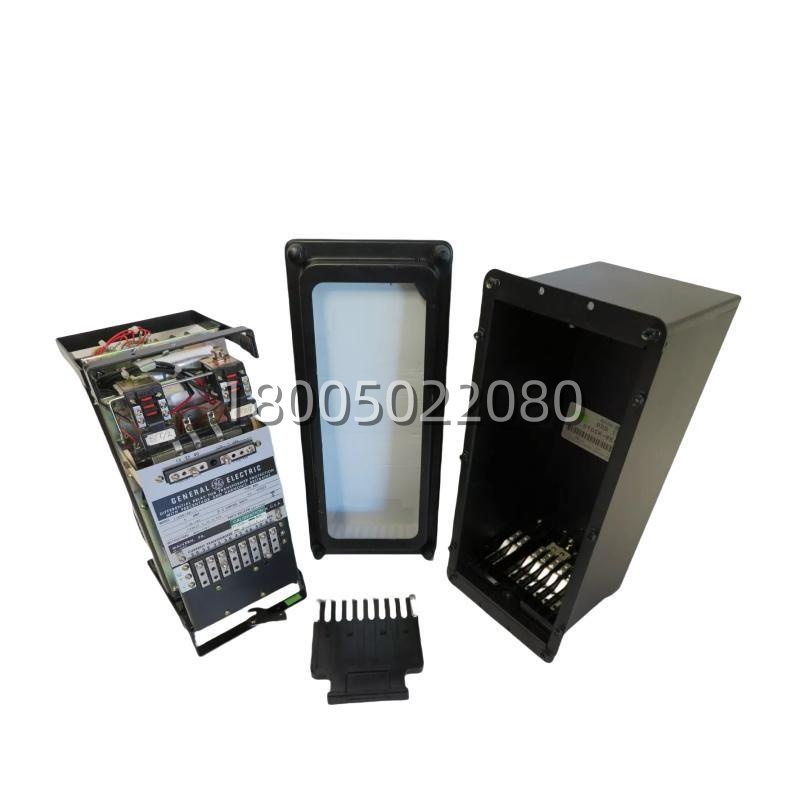

| Product Model | GE 12BDD15B11A |
| Manufacturer | General Electric (GE) / Multilin |
| Product Category | Transformer Protection Relay (Single-Phase, Electromechanical) |
| Protection Function | High-Impedance Percentage Differential with Harmonic Restraint |
| Rated Frequency | 60 Hz (Primary Design) |
| CT Secondary Rating | 5 Amperes (Standard) |
| Differential Pickup Setting | Adjustable, typically 0.1 – 5.0 A |
| Slope Characteristic | Adjustable percentage slope (e.g., 15%, 25%, 40%) |
| Harmonic Restraint | 2nd Harmonic restraint for inrush immunity; adjustable threshold |
| Operating Time | ≤ 20 milliseconds for high-set internal faults |
| Auxiliary Supply | 125 VDC or 250 VDC (for tripping circuit/indicating relays) |
| Contact Configuration | Multiple output contacts for trip, alarm, and seal-in functions |
| Mounting | Panel-mounted in a standard draw-out or fixed-case design |
| Status | Legacy/Discontinued Product – For maintenance of existing systems |
Technical Principles and Innovative Values:
The GE 12BDD15B11A employs a sophisticated blend of electromagnetic principles to achieve reliable and secure transformer protection, a significant advancement over simpler overcurrent schemes at its time.
- Innovation Point 1: Percentage Differential with Harmonic Analysis. The relay’s core principle compares the current entering and leaving the transformer windings. It only operates (trips) if the vector difference(differential current) exceeds a percentage of the through current(restraint current). This “percentage differential” characteristic provides stability during external faults where Current Transformer (CT) errors could cause false differential signals. The integrated harmonic restraint filter is the key innovation, allowing the 12BDD15B11A to remain stable during transformer energization, when the inrush current is rich in 2nd harmonic, a signature absent in most internal faults.
- Innovation Point 2: High-Impedance Voltage-Sensing Principle. Unlike some differential schemes, the 12BDD15B11A operates as a high-impedance voltage relay across the paralleled CTs. This design makes it inherently stable against CT saturation during external faults, as the high impedance limits the “spill” current through the relay operating coil. This results in unparalleled security, a critical factor for transmission and generation-level assets where a single false trip can have massive grid consequences.
- Innovation Point 3: Electromechanical Robustness and Simplicity. Built with induction-disc or moving-coil elements, the GE 12BDD15B11A offers exceptional durability and noise immunity. Its operation is transparent and easily understood by protection engineers. It requires no software or complex programming, making it a “fit and forget” component known for decades of service in harsh substation environments with wide temperature swings and electrical noise, where early solid-state devices were less reliable.
