Application Scenarios

In a high-speed robotic pick-and-place cell for electronics assembly, six servo axes must execute coordinated movements with micron-level precision. Any fluctuation or noise in the control system’s power can introduce jitter, leading to placement errors. The ABB SAMC-11POW Power Supply Board​ is installed as the primary power source within the integrated SAMC-11 controller rack. It provides galvanically isolated and heavily filtered 24V DC and 5V DC rails. The board’s ultra-stable output ensures the servo drive modules receive a perfect reference voltage, enabling them to generate flawless current commands to the motors. Simultaneously, it powers the safety CPU and I/O modules that monitor E-stops and zone sensors. During a rapid simultaneous move of all axes, the SAMC-11POW​ seamlessly handles the high inrush current demands without any voltage sag, preventing controller brownouts. Its integrated diagnostics can predict an overload condition by monitoring current trends, allowing the system to gracefully decelerate if a cooling fan fails, rather than crashing unexpectedly. This board solves the critical pain points of power quality, load-handling capacity, and system availability in tightly integrated motion and safety control.





Parameter

Main Parameters	Value/Description

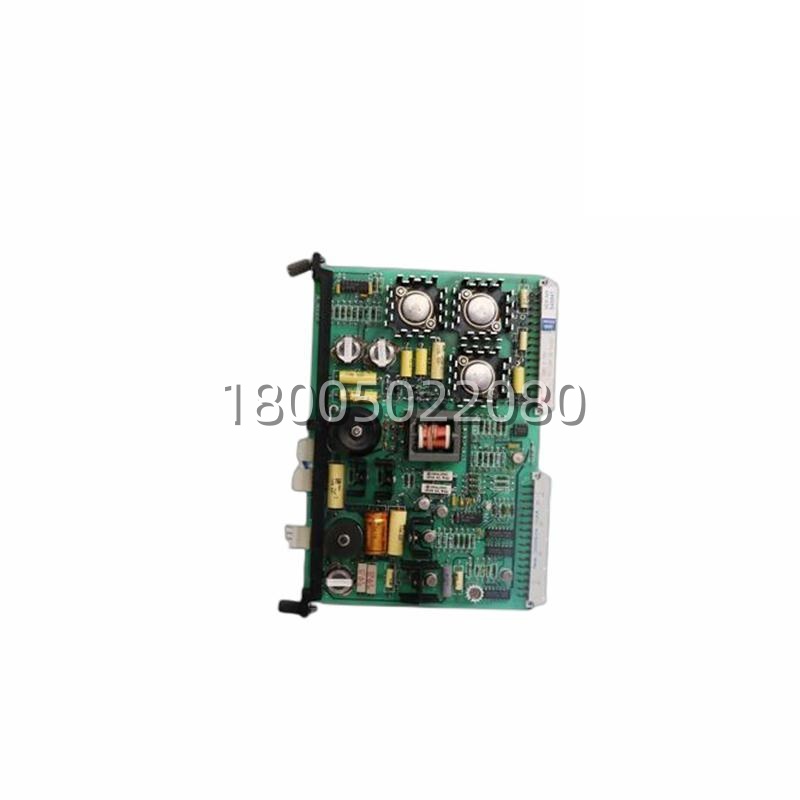

Product Model​	ABB SAMC-11POW Power Supply Board​
Manufacturer​	ABB (Asea Brown Boveri)
Product Category​	Integrated Power Supply / Power Distribution Board for Motion Controller Racks
Primary Function​	AC/DC conversion and protected, multi-rail power distribution for SAMC-11 systems
Input Voltage​	100-240V AC, 50/60Hz, single-phase (universal input)
Output Voltage Rails​	+24V DC (for drives, I/O, brakes), +5V DC (for logic, communications), +/-15V DC (for analog ref, optional)
Output Current / Power​	High-power design, e.g., 24V/20A (480W) continuous, with peak power capability for servo acceleration. [Defines system’s axis and I/O capacity]
Efficiency​	>92% (typical) [Minimizes heat generation in the compact controller enclosure]
Hold-up Time​	>30ms at full load [Ensures ride-through for brief power dips, critical for uninterrupted cycles]
Protections​	Input: Inrush current limiter, fuse. Output: Overvoltage (OVP), Overcurrent (OCP), Short-Circuit (SCP), Overtemperature (OTP) with auto-recovery.
Diagnostics​	Comprehensive status LEDs (AC OK, DC OK, Fault), remote enable/disable, power good signal, and communication of voltage/current/temperature via system backplane.
Isolation​	Reinforced isolation (>4kV AC) between input and all outputs, and between different output rails. [Prevents noise propagation and meets safety standards]
Cooling​	Intelligent forced-air cooling with temperature-controlled fan speed.
Mounting​	Dedicated slot in the SAMC-11 system rack, connecting via a high-power backplane connector.
Operating Temperature​	0°C to +55°C with full output rating up to 50°C.
Safety & EMC​	Designed for IEC 61800-5-1, IEC 61131-2, with extensive filtering for C3 emission class. Supports functional safety systems.







Technical Principles and Innovative Values

The ABB SAMC-11POW​ transcends a standard switched-mode power supply by incorporating motion-control-specific intelligence, thermal management, and diagnostic depth tailored for the SAMC-11 ecosystem.

• Innovation Point 1: Dynamic Load Balancing and Peak Power Management for Servo Demands.​ The core innovation is its ability to handle the highly dynamic load profile of servo systems. Unlike constant loads, servo drives demand brief, high-current peaks during acceleration. The SAMC-11POW​ is designed with oversized capacitors and a control loop optimized for fast transient response, preventing voltage droop during these peaks. It actively monitors the total load and can communicate available power headroom to the motion CPU. This allows the controller to dynamically limit acceleration rates if multiple axes peak simultaneously, preventing an overcurrent fault and enabling optimal, non-stop performance.
• Innovation Point 2: Multi-Rail Sequencing and Monitoring for System Stability.​ The board provides several voltage rails (+24V, +5V, etc.). A critical feature is the controlled power-up and power-down sequencing. It ensures the 5V logic rail is stable before enabling the 24V drive rail, and vice-versa during shutdown, preventing latch-up or erratic behavior in the modules. Each rail is independently monitored for voltage and current. A deviation on any rail is reported as a structured diagnostic event over the backplane, pinpointing the issue (e.g., “24V Rail Overcurrent on Drive Slot 3”), which is invaluable for rapid troubleshooting.
