Application Scenarios:

In a hyperscale data center, the entire operation depends on the reliability of the chilled water plant. The main centrifugal chiller is driven by a 4kV ABB ACS 6000 variable speed drive. During a routine load test, the drive faults with a “Converter Communication” error, threatening the data hall’s cooling. Diagnostics isolate the issue to the ABB SAFT188 IOC​ board in the active front-end (AFE) rectifier unit. This board is not a simple relay; it’s a real-time computer that calculates the optimal firing angles for dozens of IGBTs to draw clean, sinusoidal current from the grid while regulating the DC link voltage. A fault here doesn’t just stop the drive—it risks creating harmonic distortion back onto the sensitive data center grid. Replacing it with a calibrated SAFT188 IOC​ restores perfect grid synchronization and power factor control, ensuring the chiller drive operates as a “good grid citizen” while providing 100% cooling uptime, safeguarding billions of dollars in IT infrastructure.





Parameter:

Main Parameters	Value / Description

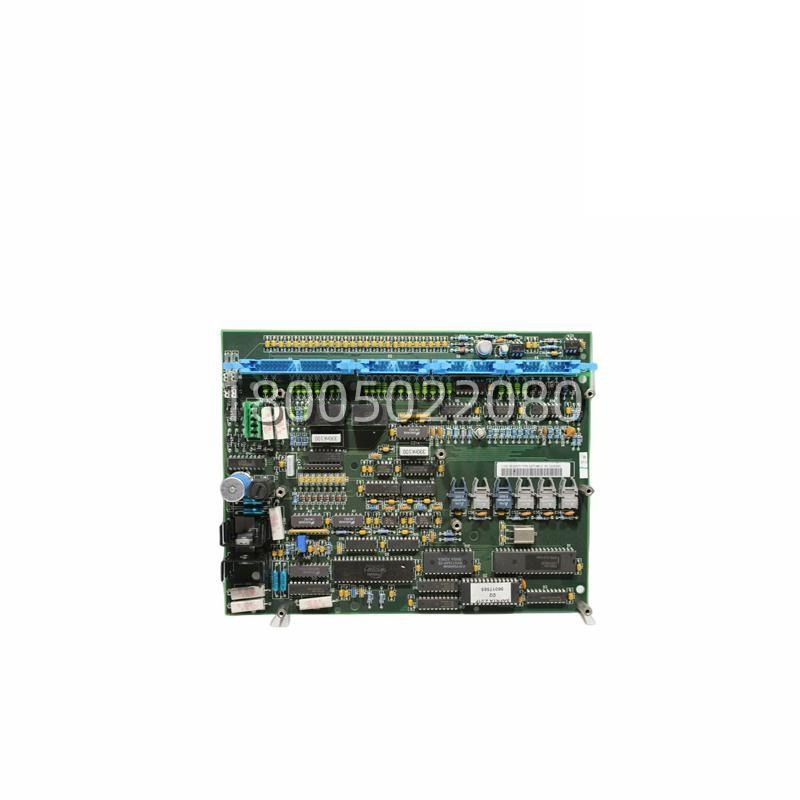

Product Model​	ABB SAFT188 IOC​ (SAFT188IOC)
Manufacturer​	ABB
Product Category​	Power Control Board / Intelligent Converter Controller
Core Function​	Real-time control of power semiconductor switching (IGBT/IGCT)
Primary Application​	Control of Active Front End (AFE) rectifiers and inverter stages in MV drives
Processor Core​	High-performance DSP (Digital Signal Processor) or dedicated ASIC
Communication Interfaces​	Fiber optic links to gate drive units, serial/fieldbus to main drive controller
Control Algorithms​	Executes PWM/SPWM modulation, grid synchronization, current loop regulation
Protection Functions​	Overcurrent, overvoltage, undervoltage, asymmetry, short-circuit detection
Power Supply​	Multiple isolated low-voltage DC inputs (e.g., 5V, ±15V)
Operating Temperature​	0°C to +70°C (for controlled cabinet environment)
Key Feature​	Enables advanced features like regenerative braking and low-harmonic input







Technical Principles and Innovative Values:

• Innovation Point 1: Adaptive Space Vector PWM with Dead-Time Compensation:​ The SAFT188 IOC​ implements advanced Space Vector Pulse Width Modulation (SVPWM) algorithms in its DSP. This is more efficient than traditional sine PWM, providing up to 15% better DC bus voltage utilization. Crucially, it incorporates adaptive dead-time compensation. It dynamically adjusts for the actual turn-on/off delays of the IGBTs to prevent voltage distortion and current spikes that occur during the brief “dead time” when both switches in a leg are off, significantly improving output waveform quality and reducing motor losses.
• Innovation Point 2: Grid-Feeding Control with Virtual Flux Orientation:​ For drives with Active Front End (AFE) rectifiers, the ABB SAFT188 IOC​ utilizes a virtual flux orientation control strategy. This allows it to operate independently of potentially noisy grid voltage measurements. It creates an internal, clean model of the grid’s flux, enabling ultra-stable synchronization and accurate control of active and reactive power flow. This makes the drive exceptionally robust against weak or distorted grids, allowing it to provide reactive power support (like a STATCOM) to stabilize the local plant network, a transformative feature for industrial power quality management.
