Main Features and Advantages

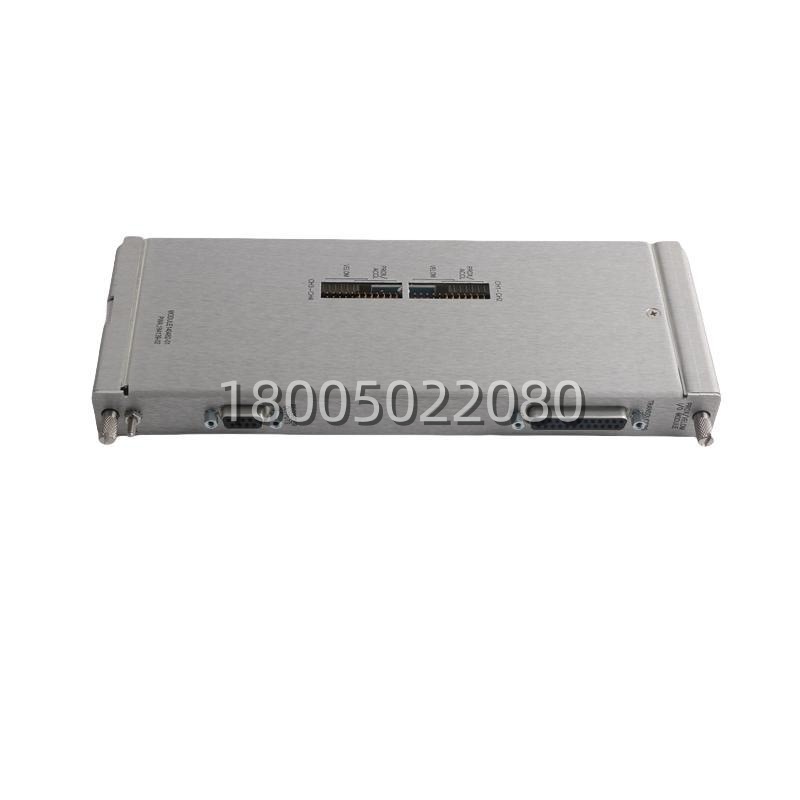

Dual-Input Versatility: The standout feature of the 140482-01 is its ability to accept both proximity and velocity inputs on the same module. This dual-capability allows the 140482-01 to monitor shaft relative vibration using eddy current probes and casing absolute vibration using Velomitor sensors simultaneously. This flexibility reduces the number of different monitor types required in a rack, optimizing space and inventory management while providing a comprehensive view of machine health.

Advanced Signal Processing: The 140482-01 features sophisticated signal processing capabilities, including user-selectable bandpass filters. This allows operators to isolate specific frequency ranges of interest, filtering out noise and irrelevant vibration data. The module can also perform peak-to-peak, peak, or RMS measurements, ensuring that the 140482-01 provides the most relevant vibration metric for the specific machinery being protected.

Integrated Protection and Diagnostics: Designed for safety, the 140482-01 includes four alarm relays and a common fault relay. Each channel can be programmed with independent alarm and trip setpoints, with adjustable time delays to prevent nuisance trips. Furthermore, the 140482-01 continuously monitors its own health and the integrity of the sensor connections, alerting operators to sensor failures or module faults before they compromise machine protection.
