Product Overview

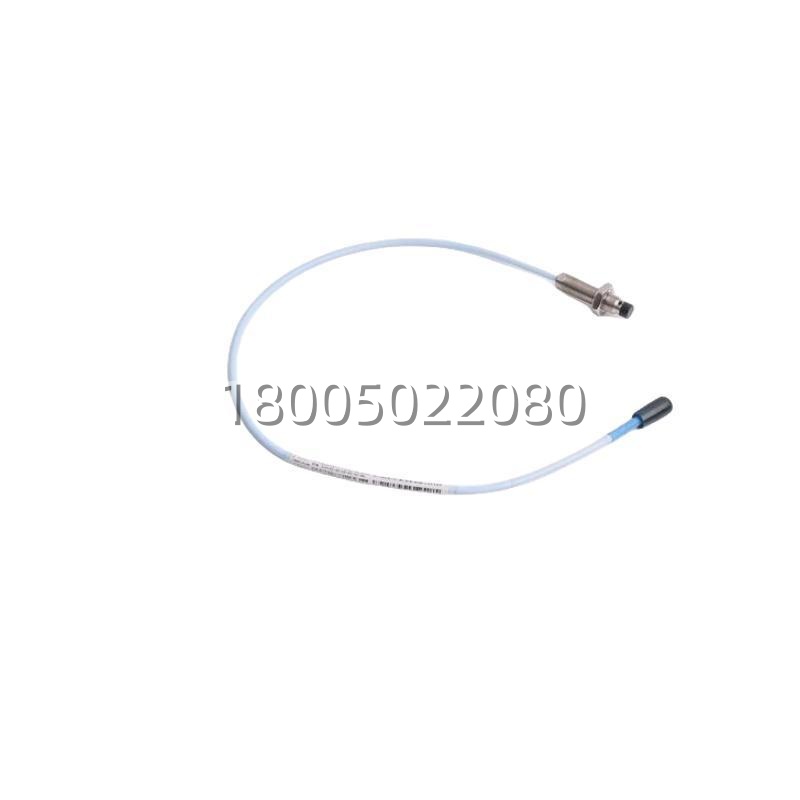

The Bently Nevada 109548-01 (also identified by the part number P1407030-00100) is a specialized 3300 XL NSv (Near-Side View) proximity probe designed for the 3300 XL 8mm sensor system. This sensor represents a significant advancement in eddy current technology, specifically engineered to address measurement challenges where physical access is restricted. Unlike standard probes that require a frontal view of the target, the 109548-01 utilizes an enhanced side-view design, allowing it to accurately measure vibration and position on small shafts or in confined spaces where standard 5mm or 8mm probes cannot fit.

As a core component of the Bently Nevada 3300 XL NSv system, this probe delivers exceptional performance in monitoring fluid film bearing machines. It is typically used in conjunction with a matching extension cable and a 3300 XL Proximitor sensor to form a complete measurement chain. The 109548-01 is ideal for applications involving small diameter shafts (less than 51mm) or flat targets, making it a critical solution for integrally geared compressors, small turbines, and other compact turbomachinery. Its robust construction ensures reliable operation in harsh industrial environments, providing the high-fidelity data necessary for API 670 compliant machinery protection.
